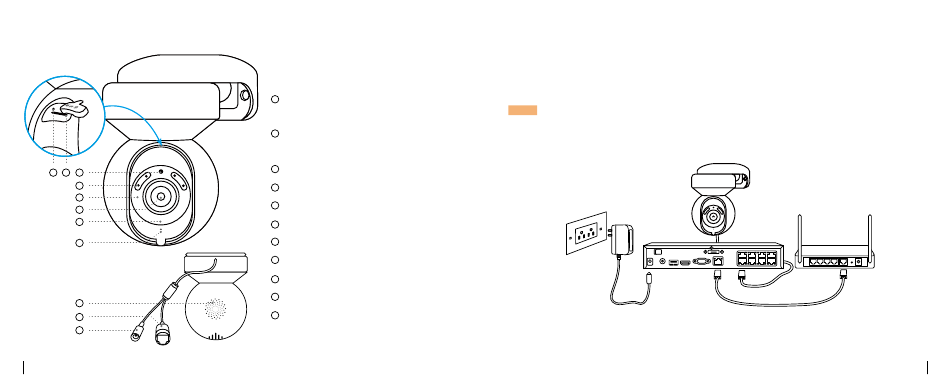

Camera Introduction

1 2 3
4
5
6
7
8
9
10
11
3
Reset Button
1
* Press for more than five seconds to
restore the device to default settings.
Micro SD Card Slot
2
* Rotate the lens to find the
reset button and the SD card slot.
Daylight Sensor
3
Spotlight
4
Infrared Lights
5
Lens
6
Status LED
7
Built-in Mic
8
Speaker
9
Network Cable
10
Power Cable
11

Connection Diagram

Before using the camera, please connect your camera as instructed below to fifinish initial setup.
1. Connect the camera to a Reolink NVR (not included) with an Ethernet cable.
2. Connect the NVR to your router, and then power on the NVR.
NOTE: The camera should be powered with a 12V DC adapter or a PoE powering device
such as PoE injector, PoE switch or Reolink NVR (not included in the package).
Power Adapter
Reolink NVR *
OFF ON
AUDIO
DC 48V OUT USB HDMI
* You may also connect the camera to a PoE switch or PoE injector.
Camera
Router
1 3 5 7
eSATA
VGA LAN 2 4 6 8
Ethernet Cable
Ethernet Cable
