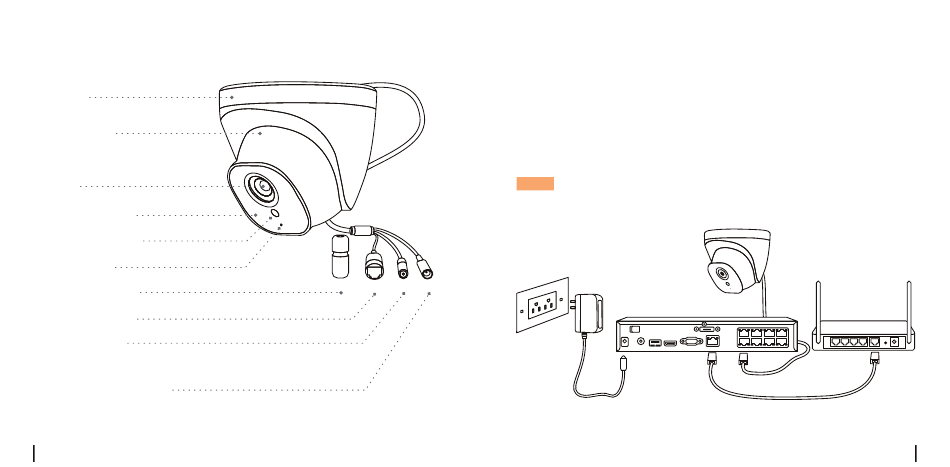

Camera Introduction

Mount
Metal Case
Lens
Infrared Lights
Daylight Sensor
Built-in Mic
Waterproof Lid
Network Cable
Reset Button
* Press and hold for 10seconds to restore camera to
factory settings.
Power Port(Optional)
3 English

Camera Connection Diagram

Before using the camera, please connect your camera as instructed
below to finish initial setup.
1. Connect the camera to a Reolink NVR (not included) with an Ethernet
cable.
2. Connect the NVR to your router, and then power on the NVR.
NOTE: The camera should be powered with a 12V DC adapter or a PoE
powering device such as PoE injector, PoE switch or Reolink NVR
(not included in the package).
Power Adapter
Reolink NVR *
OFF ON
AUDIO
DC 48V USB HDMI VGA
OUT
* You may also connect the camera to a PoE switch or PoE injector.
PoE IP Camera
Router
1 3 5 7
eSATA
LAN
2 4 6 8
Ethernet Cable
Ethernet Cable
English 4
