ATOMSTACK R30 Bedienungsanleitung Seite 13

Installation Guide
Step 4: Connect to the circuit board
02
03
01
04

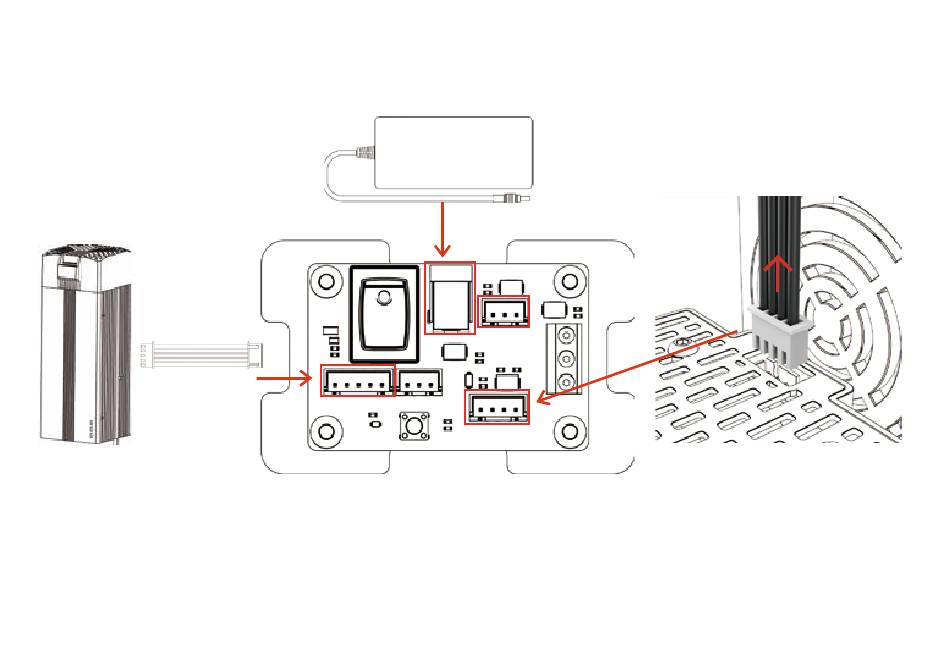

01：Use the connecting wire 2 in the package to connect the R30 laser module to the circuit board
02：Connect the power adapter to the circuit board and turn on the power
03/04：Pull out the cable connecting the laser module on the original machine and connect it
into the circuit board (pay attention to distinguish between 3pin and 4pin)
