4. SET-UP AND FUNCTION

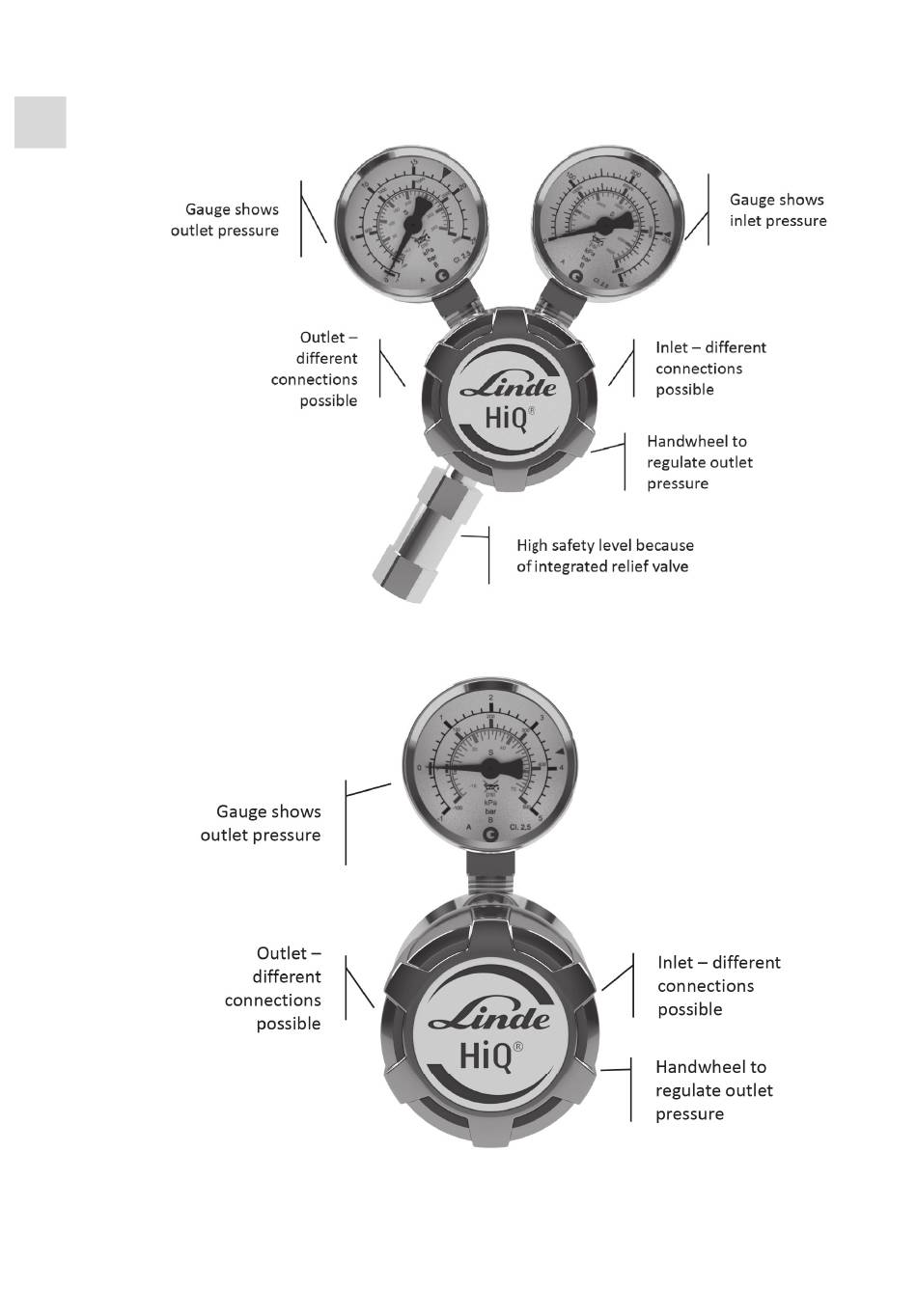

4.1. OVERVIEW – 6-PORT LINE REGULATOR
EN
4.2. OVERVIEW – 4-PORT LINE REGULATOR

4.3. BRIEF DESCRIPTION

The operation of the line regulator works manual with the handwheel. The inlet and outlet pressure is dis-
played on the inlet and outlet gauge at 6-Port version. At 4-Port version only the outlet pressure is displayed
at the outlet pressure gauge.
14/298
