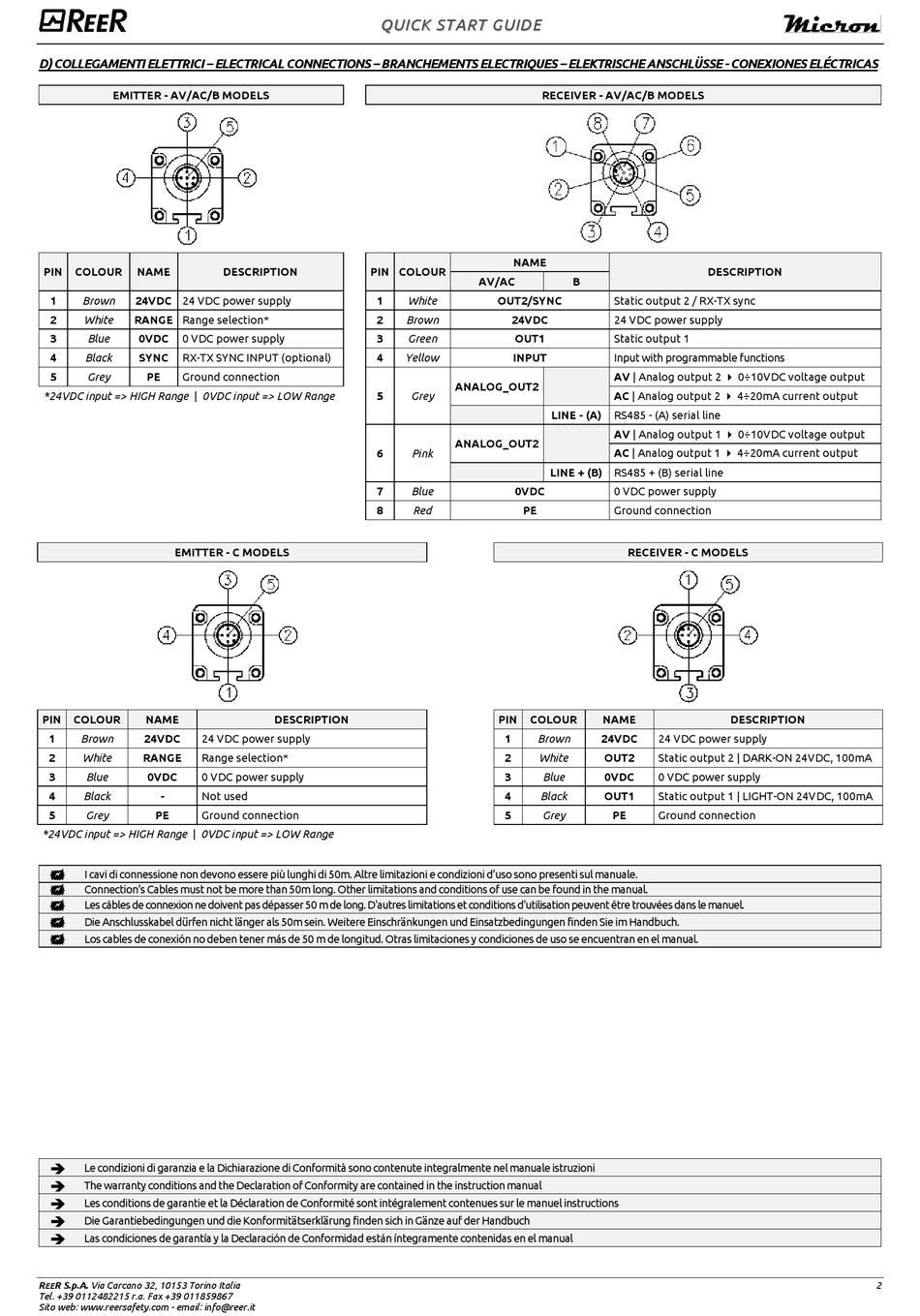

D) COLLEGAMENTI ELETTRICI – ELECTRICAL CONNECTIONS – BRANCHEMENTS ELECTRIQUES – ELEKTRISCHE ANSCHLÜSSE - CONEXIONES ELÉCTRICAS
EMITTER - AV/AC/B MODELS
PIN
COLOUR
NAME
1
Brown
24VDC 24 VDC power supply
2
White
RANGE Range selection*
3
Blue
0VDC
0 VDC power supply
4
Black
SYNC
RX-TX SYNC INPUT (optional)
5
Grey
PE
Ground connection
*24VDC input => HIGH Range | 0VDC input => LOW Range
EMITTER - C MODELS
PIN
COLOUR
NAME
1
Brown
24VDC
24 VDC power supply
2
White
RANGE
Range selection*
3
Blue
0VDC
0 VDC power supply
4
Black
-
Not used
5
Grey
PE
Ground connection
*24VDC input => HIGH Range | 0VDC input => LOW Range
I cavi di connessione non devono essere più lunghi di 50m. Altre limitazioni e condizioni d'uso sono presenti sul manuale.
Connection's Cables must not be more than 50m long. Other limitations and conditions of use can be found in the manual.
Les câbles de connexion ne doivent pas dépasser 50 m de long. D'autres limitations et conditions d'utilisation peuvent être trouvées dans le manuel.
Die Anschlusskabel dürfen nicht länger als 50m sein. Weitere Einschränkungen und Einsatzbedingungen finden Sie im Handbuch.
Los cables de conexión no deben tener más de 50 m de longitud. Otras limitaciones y condiciones de uso se encuentran en el manual.
➔
Le condizioni di garanzia e la Dichiarazione di Conformità sono contenute integralmente nel manuale istruzioni
➔
The warranty conditions and the Declaration of Conformity are contained in the instruction manual
➔
Les conditions de garantie et la Déclaration de Conformité sont intégralement contenues sur le manuel instructions
➔
Die Garantiebedingungen und die Konformitätserklärung finden sich in Gänze auf der Handbuch
➔
Las condiciones de garantía y la Declaración de Conformidad están íntegramente contenidas en el manual
R
R S.p.A. Via Carcano 32, 10153 Torino Italia
EE
Tel. +39 0112482215 r.a. Fax +39 011859867
Sito web: www.reersafety.com - email: info@reer.it
QUICK START GUIDE
DESCRIPTION
PIN COLOUR
1
2
3
4
5
6
7
8
DESCRIPTION
RECEIVER - AV/AC/B MODELS
NAME
AV/AC
B
White
OUT2/SYNC
Brown
24VDC
Green
OUT1
Yellow
INPUT
ANALOG_OUT2
Grey
LINE - (A)
ANALOG_OUT2
Pink
LINE + (B) RS485 + (B) serial line
Blue
0VDC
Red
PE
PIN
COLOUR
1
Brown
2
White
3
Blue
4
Black
5
Grey
DESCRIPTION
Static output 2 / RX-TX sync
24 VDC power supply
Static output 1
Input with programmable functions
AV | Analog output 2 0÷10VDC voltage output
AC | Analog output 2 4÷20mA current output
RS485 - (A) serial line
AV | Analog output 1 0÷10VDC voltage output
AC | Analog output 1 4÷20mA current output
0 VDC power supply
Ground connection
RECEIVER - C MODELS
NAME
DESCRIPTION
24VDC
24 VDC power supply
OUT2
Static output 2 | DARK-ON 24VDC, 100mA
0VDC
0 VDC power supply
OUT1
Static output 1 | LIGHT-ON 24VDC, 100mA
PE
Ground connection
2
