hush Front

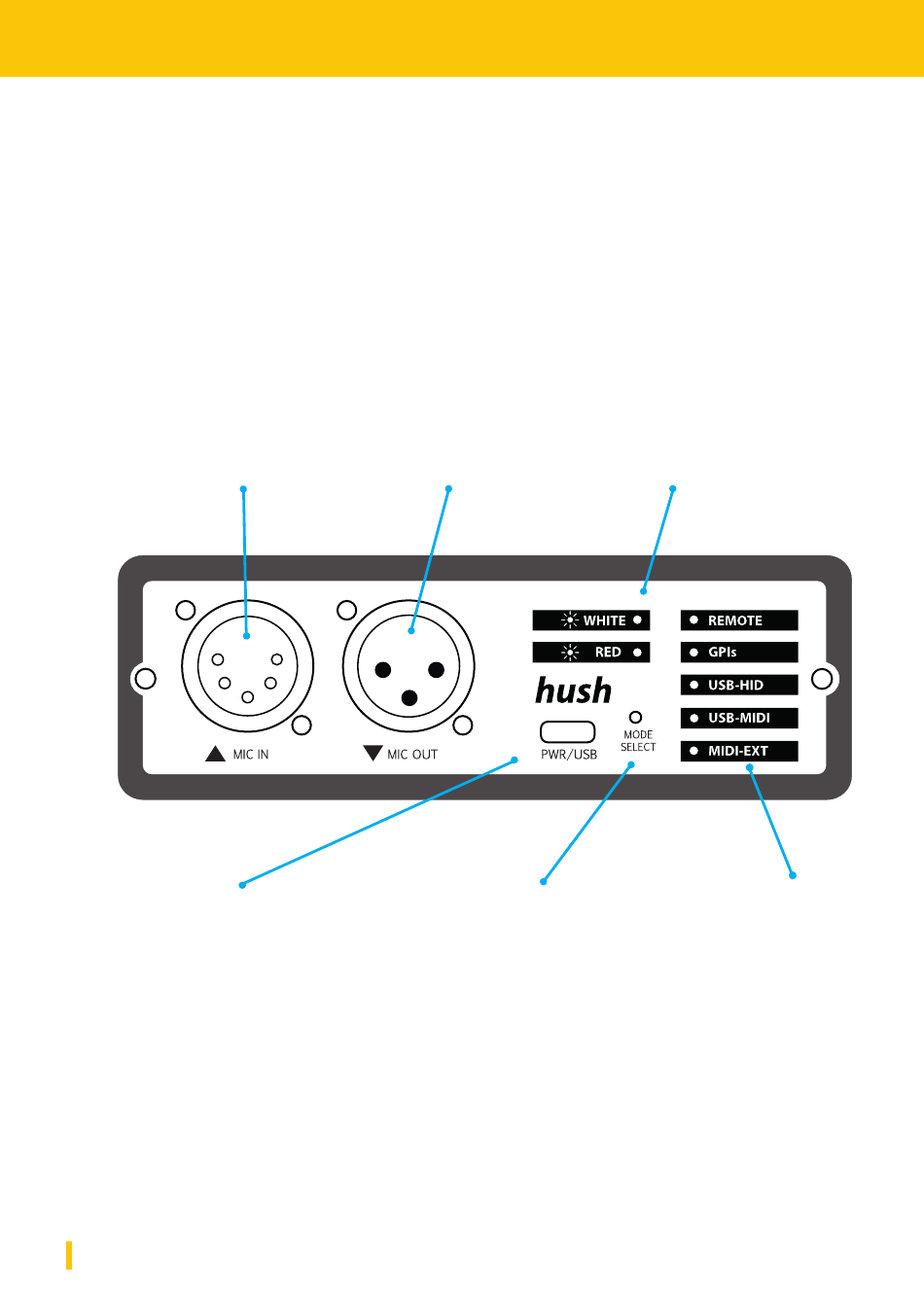

hush Front Panel*
Mic In (XLR-5)
Attach the XLR-5
connector at the
bottom end of your
m!ka Mic Arm OnAir
here. Find details about
pin assignments at
www.yellowtec.com/
hush/downloads.
Ext. Power Supply
Connect hush to your
PC/Mac via USB-C
using this PWR/USB
port. Alternatively,
you can connect a 5V
power supply here to
use hush without a
computer.
26
Another difference is that hush provides a Mic Out, while hush + is equipped with a Line Out.
Mic Out (hush) /
Line Out (hush + )
Connect an audio
device via XLR-3.
Depending on the
hush model you are
using, a Mic Out (hush)
or Line Out (hush + ) is
available.
Mode Select
Use a pointed
object to change the
selected mode for
controlling your hush
device. Alternatively,
you can use the hush
App. See page 30.
*Note that the fronts of the hush and hush + models differ in the logo print.
Color Indicator
The white and red LEDs
show you the currently
active color of the dual-
color OnAir indicator
on your m!ka Mic Arm:
White or Red!
Mode Indicator
The green LED shows
you the mode that is
currently selected to
control hush. Change it
directly on the device
or in the hush App.
See page 30.
