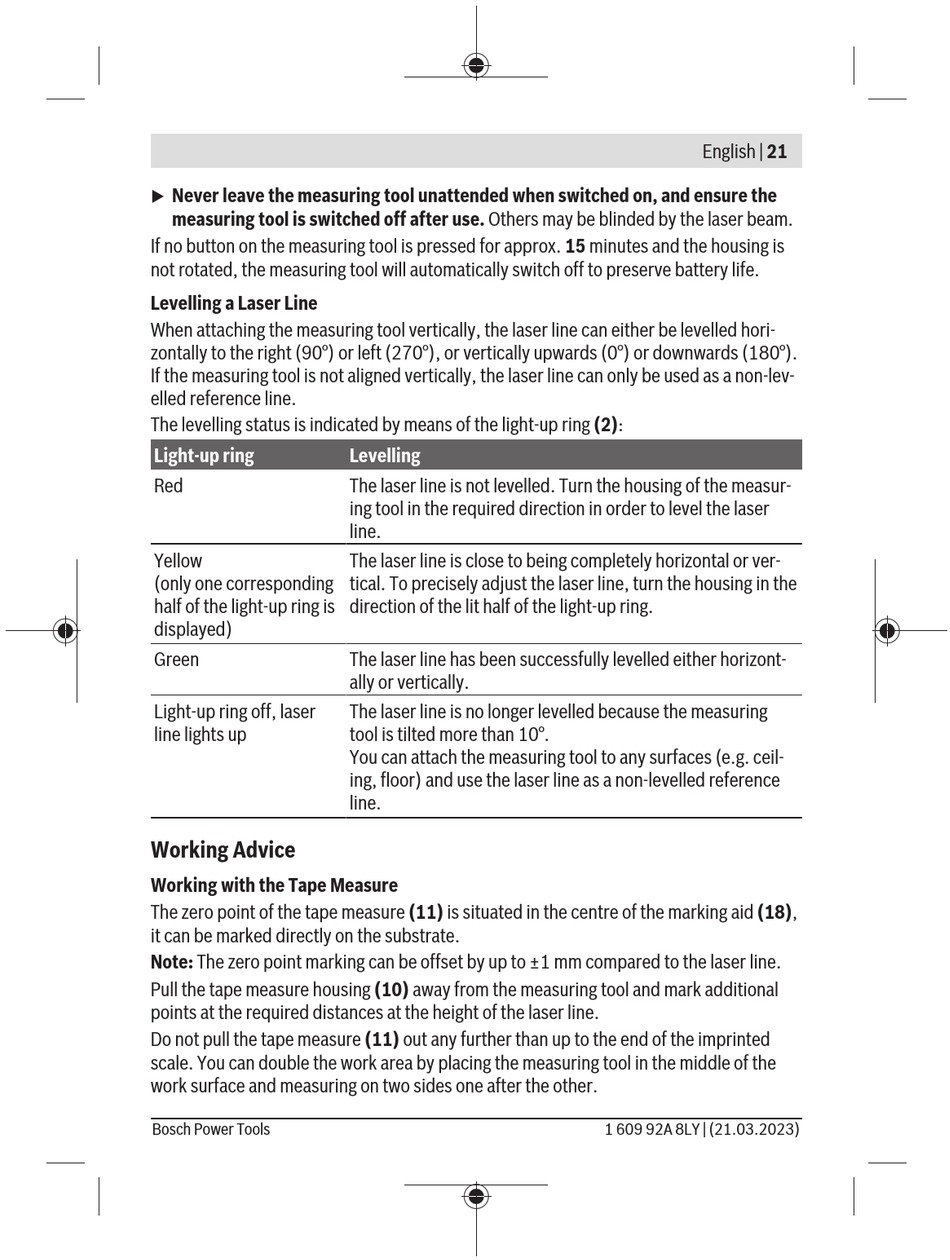

Never leave the measuring tool unattended when switched on, and ensure the
u
measuring tool is switched off after use. Others may be blinded by the laser beam.
If no button on the measuring tool is pressed for approx. 15 minutes and the housing is
not rotated, the measuring tool will automatically switch off to preserve battery life.
Levelling a Laser Line
When attaching the measuring tool vertically, the laser line can either be levelled hori-
zontally to the right (90°) or left (270°), or vertically upwards (0°) or downwards (180°).
If the measuring tool is not aligned vertically, the laser line can only be used as a non-lev-
elled reference line.
The levelling status is indicated by means of the light-up ring (2):
Light-up ring
Red
Yellow
(only one corresponding
half of the light-up ring is
displayed)
Green
Light-up ring off, laser
line lights up

Working Advice

Working with the Tape Measure
The zero point of the tape measure (11) is situated in the centre of the marking aid (18),
it can be marked directly on the substrate.
Note: The zero point marking can be offset by up to ±1 mm compared to the laser line.
Pull the tape measure housing (10) away from the measuring tool and mark additional
points at the required distances at the height of the laser line.
Do not pull the tape measure (11) out any further than up to the end of the imprinted
scale. You can double the work area by placing the measuring tool in the middle of the
work surface and measuring on two sides one after the other.
Bosch Power Tools
Levelling
The laser line is not levelled. Turn the housing of the measur-
ing tool in the required direction in order to level the laser
line.
The laser line is close to being completely horizontal or ver-
tical. To precisely adjust the laser line, turn the housing in the
direction of the lit half of the light-up ring.
The laser line has been successfully levelled either horizont-
ally or vertically.
The laser line is no longer levelled because the measuring
tool is tilted more than 10°.
You can attach the measuring tool to any surfaces (e.g. ceil-
ing, floor) and use the laser line as a non-levelled reference
line.
