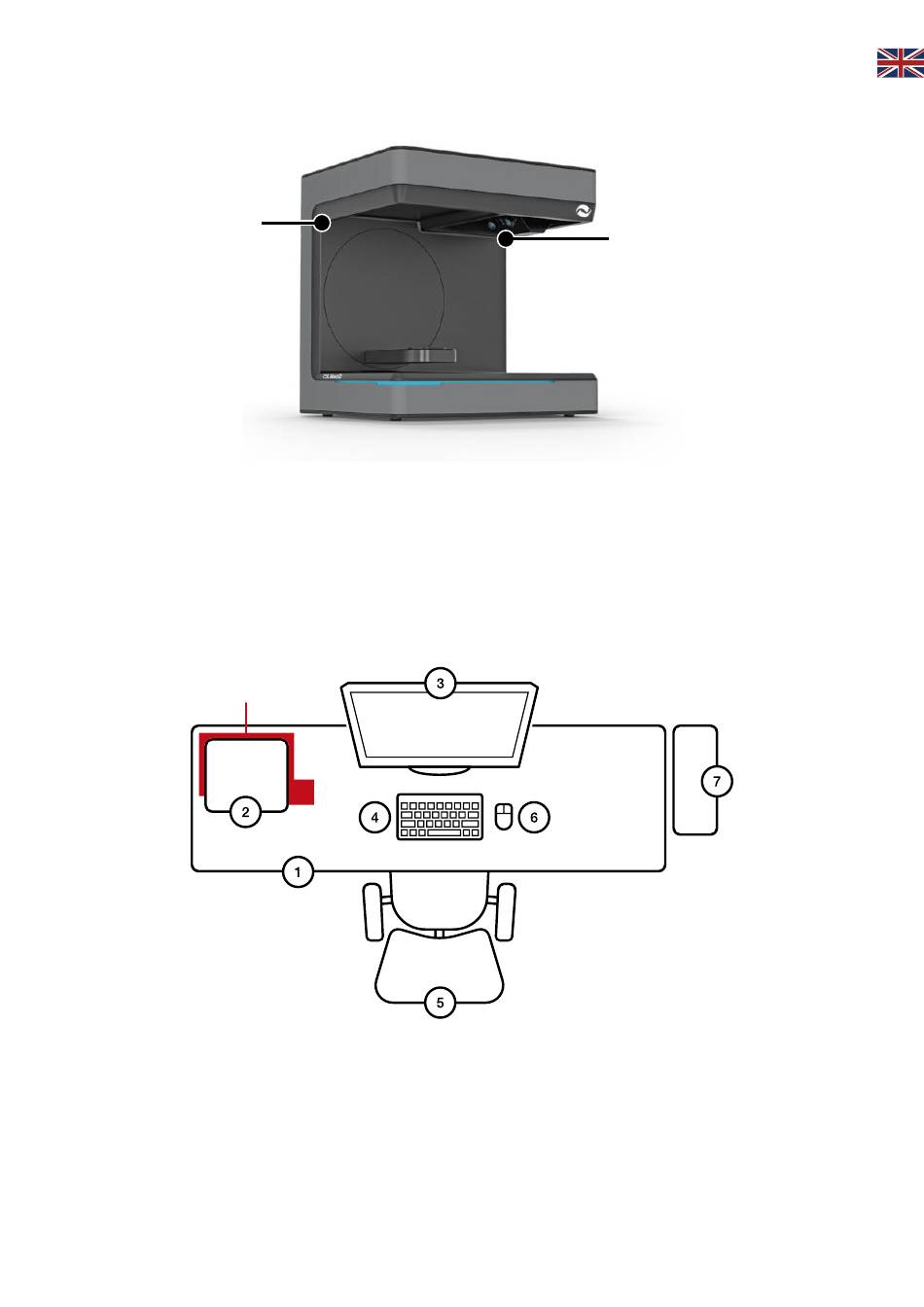

2.3 Carrying points

1
The two carrying points (1) and
(2) are provided to carry the scanner. Hold the scanner at these two points with your left and right hands. The scanner weighs 11-13 kg and
can be carried by one person. The open side of the scanner should face away from the body.

2.4 Installation example

The following fi gure is merely a schematic representation intended to provide an illustration of the overall system. Pay attention to an
ergonomic arrangement as well as to the minimum distances for the scanner as shown (red).
2cm
No. Description
1 Desk
2 Optical 3D scanner
3 Computer screen
4 Keyboard
5 Desk chair
6 Mouse
7 Computer
15cm
2
7 / EN
