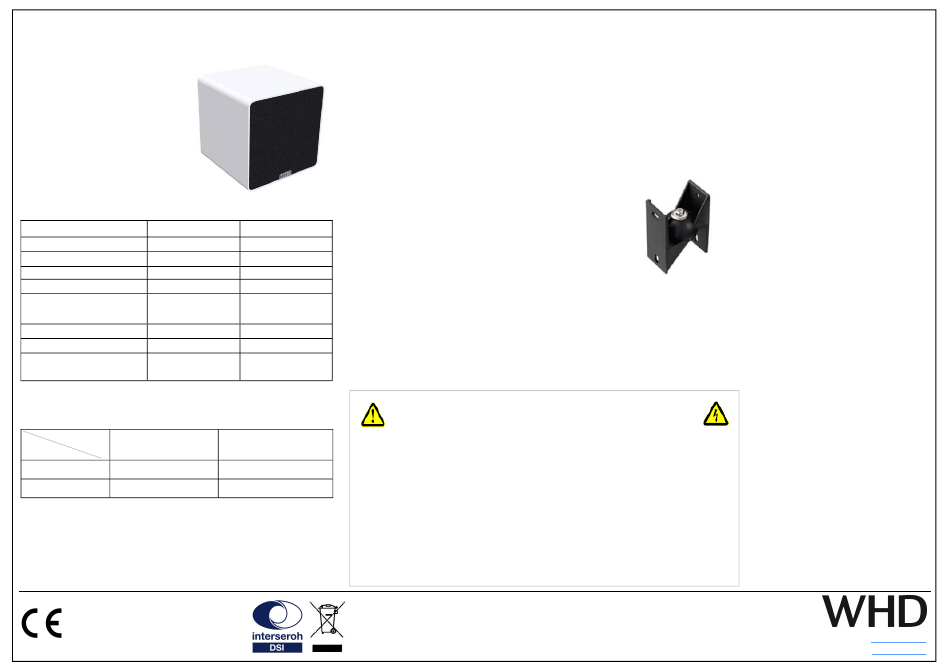

WHD QB 200 Bedienungsanleitung Seite 2

Manual
Applicable for:
QB 200
Product-No.:
103-200-03-001-00 (-4)
103-200-04-001-00 (-4)
103-200-03-006-00 (-T6)
103-200-04-006-00 (-T6)
Specifications QB 200-4
Rated / Music power 15 / 25 W
Impedance (without transf.) 4 ohms
SPL 1W/1m 84 dB
Frequency Range (-3 dB) 90-18000 Hz
Transmission Angle
180/130/105/80 °
1/2/4/8 kHz (-6 dB)
Dimensions (H/W/D) 120x120x120 mm
Weight 1.2 kg
Material Aluminium housing,
fabric panel
Connections
Version
4 ohms
Color
red 4 ohms
black 0
! Press connector for cable cross-sections of 0.5 - 2.5 mm²
This product supports all CE-
marking criteria. The declaration of
conformity certificate can be ob-
tained from WHD.
Operation
Thank you for buying our compact hifi-speaker.
Please read this manual carefully, especially the safety and security information.
Mounting
Stand-alone Version:
Attach the included rubber feet and place the speaker on at the desired location.
Wall bracket with ball joint WH QB200:
1. Remove the two plugs on the rear wall.
2. Remove the central screw of the wall bracket.
QB 200-T6
3. Screw the short part of the wall bracket to the
rear wall of the QB 200 with screws firmly.
6 W
The ball must be oriented downwards.
-
84 dB
4. Install the long part of the wall.
90-18000 Hz
5. Now add the wall bracket again with the central screw together.
180/130/105/80 °
120x120x120 mm
1.6 kg Connecting the speaker
The speaker can be operated in low-impedance (4 ohms) or 100V (6 W) version.
Aluminium housing,
Conntect the speaker according to the adjacent table.
fabric panel
-T6
In addition to this guidance please comply with your own country-specific safety & security
regulations.
6 W / 100V
Intended Use: Indoors
COM / 0
Operating temperature: -20 ... + 60 °C
! The device is not suitable for outdoor operation.
Note:
- Make sure that the resulting impedance and the power of the connected speakers are
properly sized to the output of the amplifier safe.
- Ensure correct polarity.
- Before the removal of the speaker, switch OFF the amplifier.
WHD are members of the INTERSEROH association.
We participate in the dual system as well as other
industry-specific solutions. Therefore, plastic, metal
and electronic parts can all be recycled.
Safty & Security Informations
Improper handling may void warranty.
WHD - Wilhelm Huber+Söhne GmbH+Co.KG
(Technical and optical
modifications reserved)
Troubleshooting
No sound
- Check the connections of the
speakers (if cable is loose)
- Check wiring of speakers (if cable is
bent)
- Check that amplifier or audio
source is turned on and set to an
appropriate volume.
Humming
Make sure that the input of the am-
plifier is connected.
Otherwise, there is a mass problem
by grounding/shielding of audio
source/amplifier.
! Make sure that your 230V wiring
complies with the EMC directives.
Noise (clicking)
Make sure that only shielded cables
are used.
Check the wiring to eliminate cable
crossings or cabling parallel with
230V cable (induction problems).
Vibration noise
Check the location of the speaker.
Bismarckstr. 19
D-78652 Deißlingen
Tel. Zentrale +49 74 20 / 8 89-0
E-Mail:
Fax Zentrale +49 74 20 / 8 89-51
Web:
Version
10.03.2021
