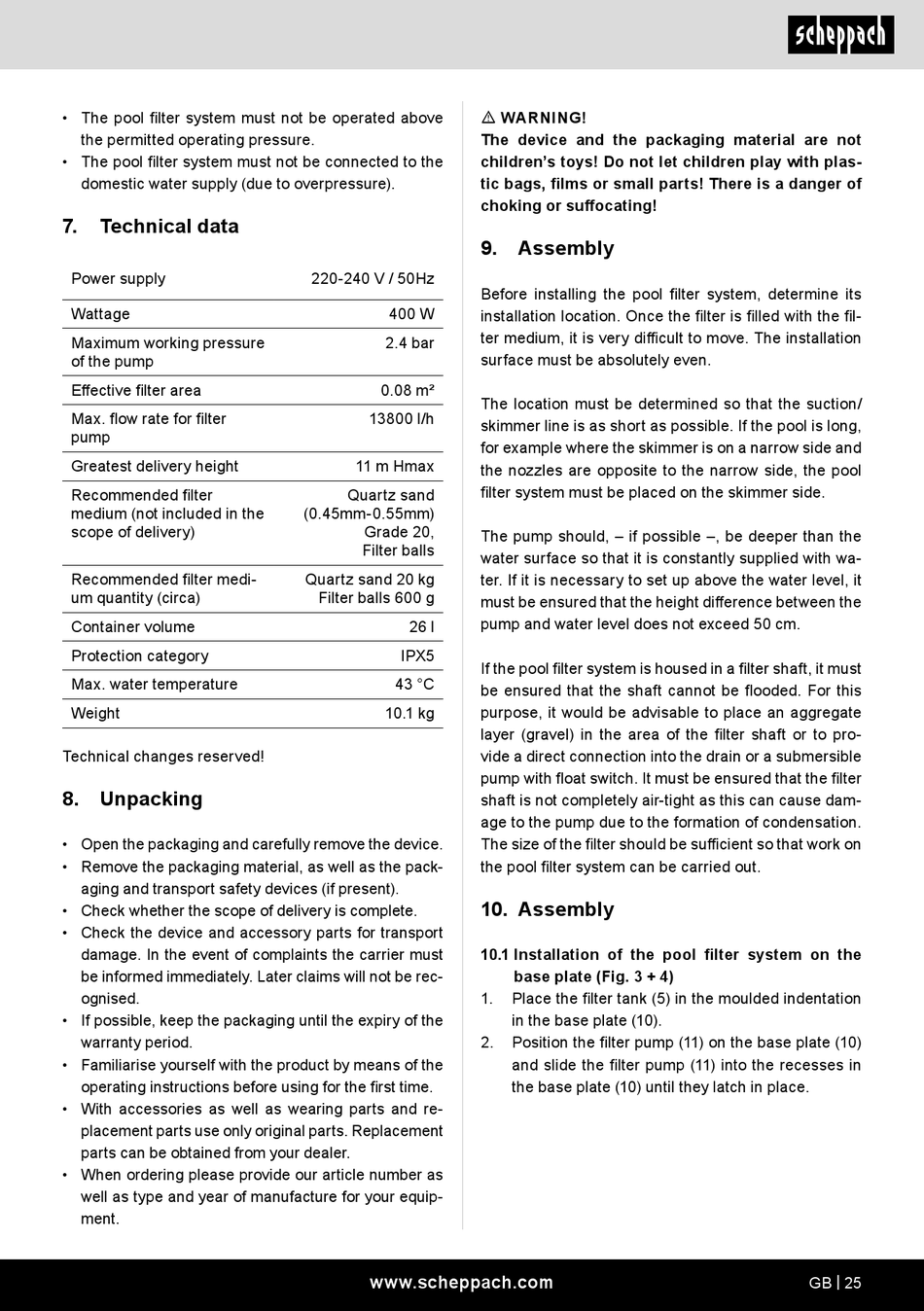

• The pool filter system must not be operated above
the permitted operating pressure.
• The pool filter system must not be connected to the
domestic water supply (due to overpressure).
7.

Technical data

Power supply
Wattage
Maximum working pressure
of the pump
Effective filter area
Max. flow rate for filter
pump
Greatest delivery height
Recommended filter
medium (not included in the
scope of delivery)
Recommended filter medi-
um quantity (circa)
Container volume
Protection category
Max. water temperature
Weight
Technical changes reserved!

8. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be rec-
ognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replacement
parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
220-240 V / 50Hz
400 W
2.4 bar
0.08 m²
13800 l/h
11 m Hmax
Quartz sand
(0.45mm-0.55mm)
Grade 20,
Filter balls
Quartz sand 20 kg
Filter balls 600 g
26 l
IPX5
43 °C
10.1 kg
www.scheppach.com
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9.

Assembly

Before installing the pool filter system, determine its
installation location. Once the filter is filled with the fil-
ter medium, it is very difficult to move. The installation
surface must be absolutely even.
The location must be determined so that the suction/
skimmer line is as short as possible. If the pool is long,
for example where the skimmer is on a narrow side and
the nozzles are opposite to the narrow side, the pool
filter system must be placed on the skimmer side.
The pump should, – if possible –, be deeper than the
water surface so that it is constantly supplied with wa-
ter. If it is necessary to set up above the water level, it
must be ensured that the height difference between the
pump and water level does not exceed 50 cm.
If the pool filter system is housed in a filter shaft, it must
be ensured that the shaft cannot be flooded. For this
purpose, it would be advisable to place an aggregate
layer (gravel) in the area of the filter shaft or to pro-
vide a direct connection into the drain or a submersible
pump with float switch. It must be ensured that the filter
shaft is not completely air-tight as this can cause dam-
age to the pump due to the formation of condensation.
The size of the filter should be sufficient so that work on
the pool filter system can be carried out.
10. Assembly
10.1 Installation of the pool filter system on the
base plate (Fig. 3 + 4)
1. Place the filter tank (5) in the moulded indentation
in the base plate (10).
2. Position the filter pump (11) on the base plate (10)
and slide the filter pump (11) into the recesses in
the base plate (10) until they latch in place.
