5.8

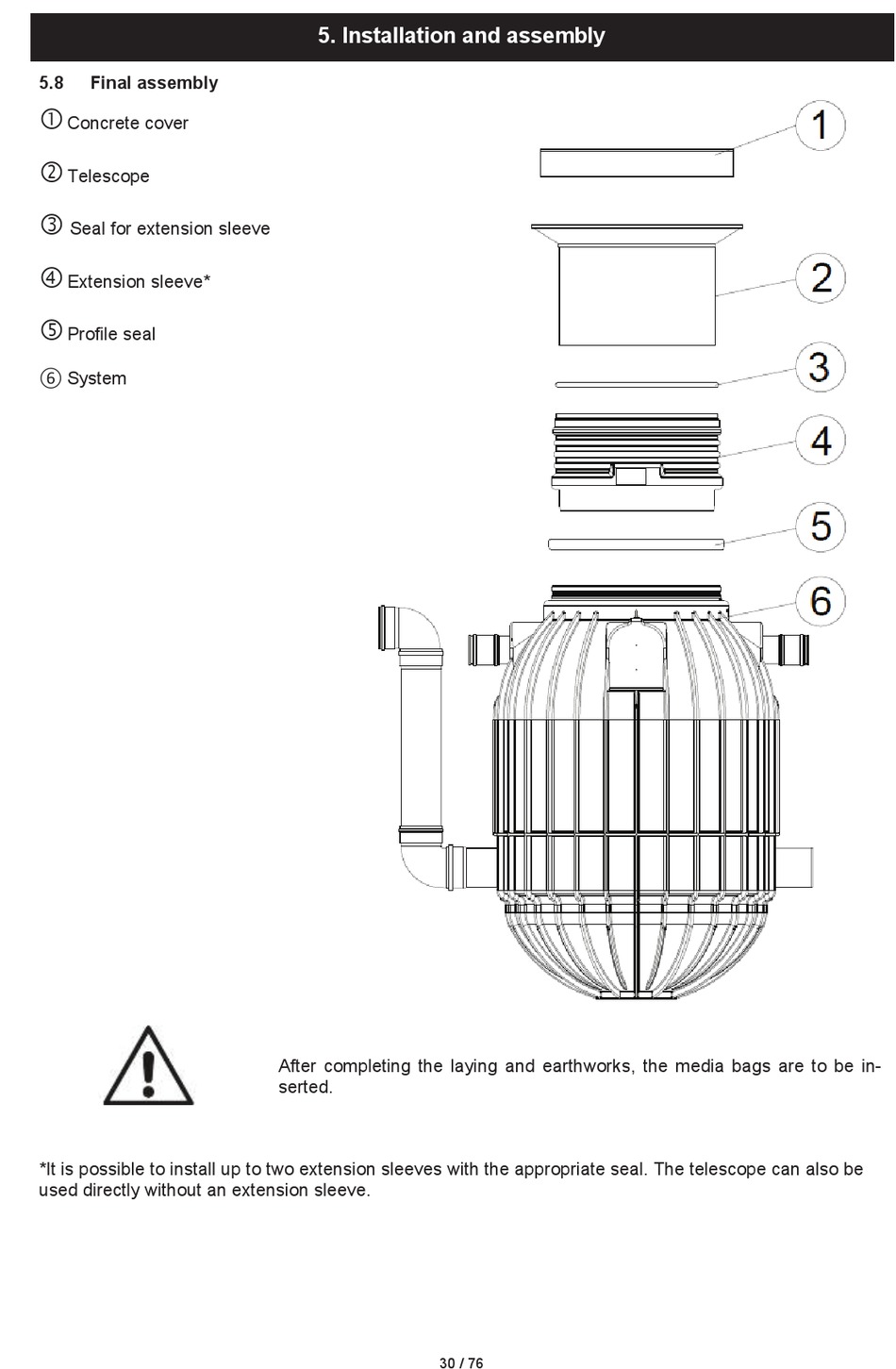

Final assembly

Concrete cover
Telescope
Seal for extension sleeve
Extension sleeve*
Profile seal
⑥ System
*It is possible to install up to two extension sleeves with the appropriate seal. The telescope can also be
used directly without an extension sleeve.

5. Installation and assembly

After completing the laying and earthworks, the media bags are to be in-
serted.
/
