iotty E2 PLUS Bedienungsanleitung Seite 32

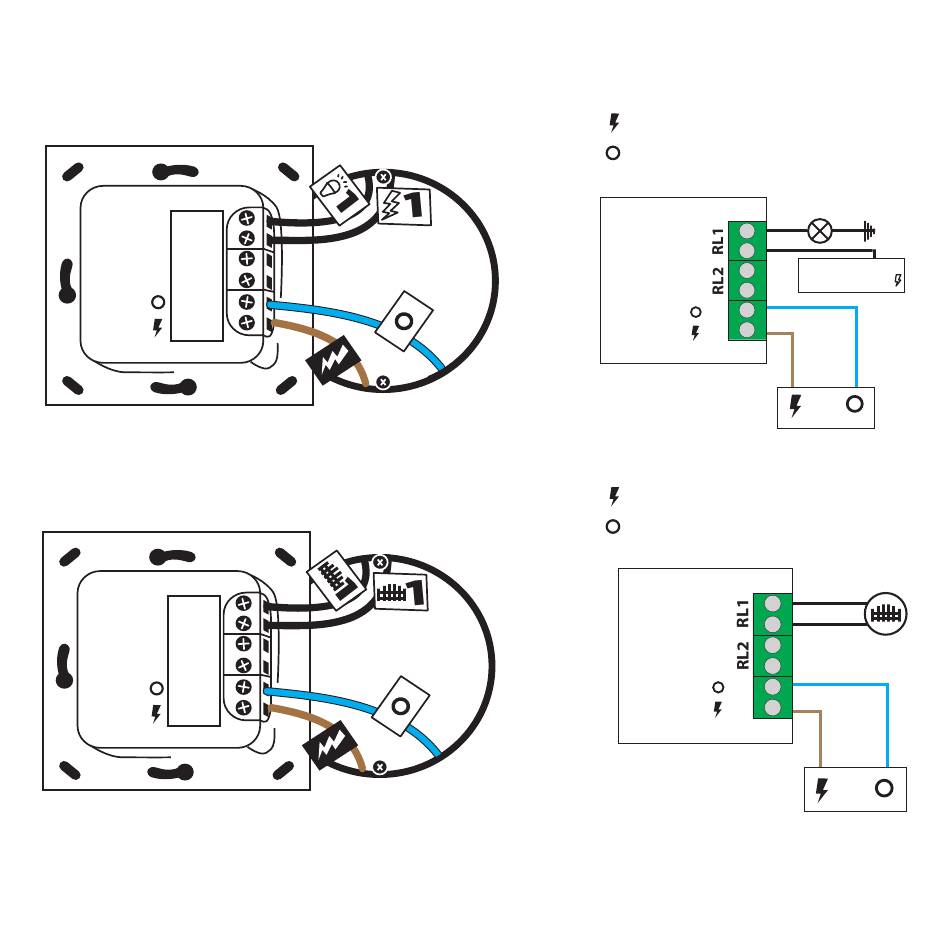

Electrical scheme for a load that operates at a
different voltage from iotty device:
RL1
RL2
Electrical scheme for a load that needs a pulse to
activate:
RL1
RL2
N
L
To set the switch properly, go to the iotty app,
go to Device Settings and under "Switch Type" select
"Pulse Switch".
32
N
L
= Power
= Neutral
Main power supply 230 Vac
IOTTY
N
L
= Power
= Neutral
Main power supply 230 Vac
IOTTY
N
L
Separate
power +12V
supply
GATE
