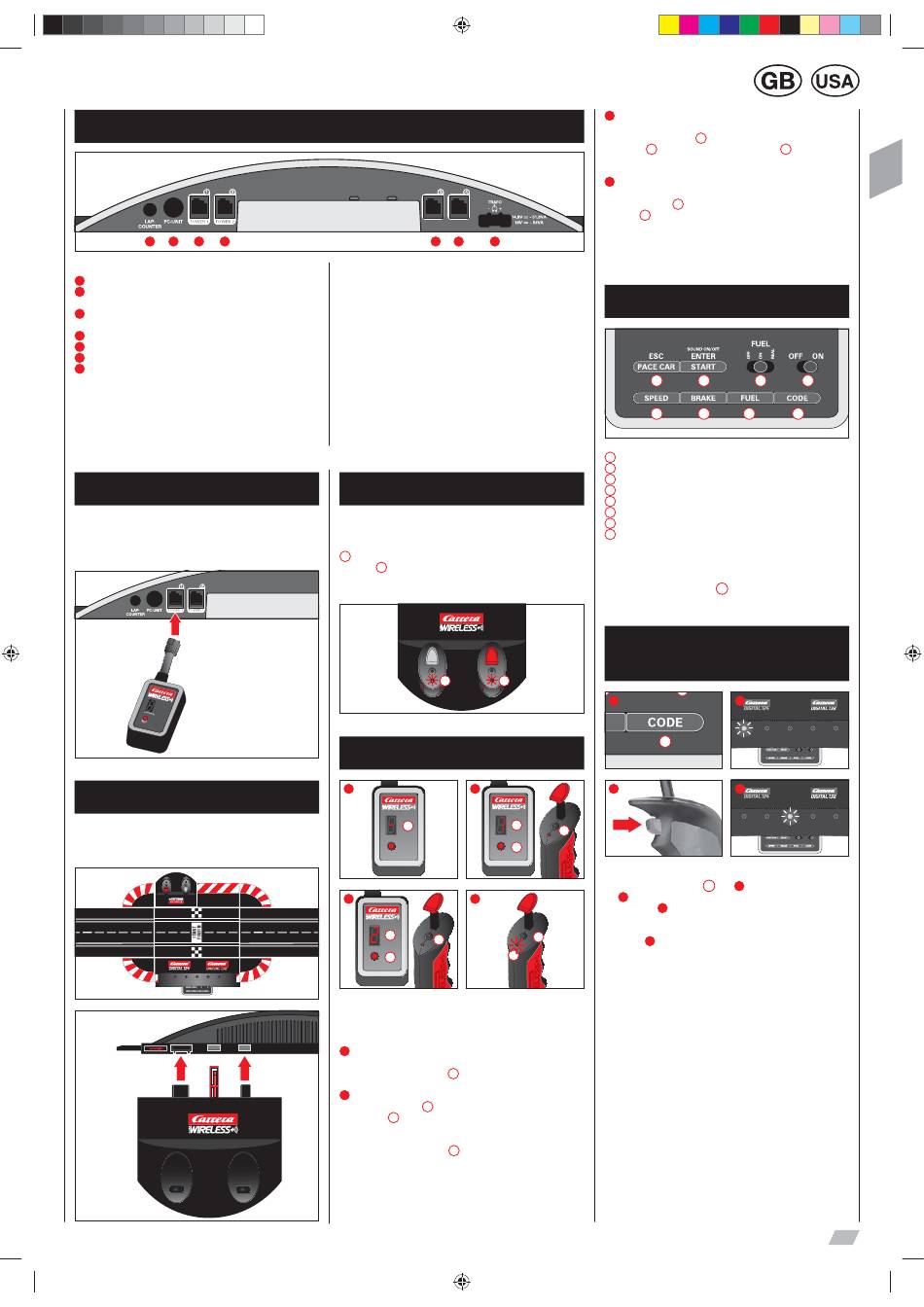

Connections Control Unit
1
2
3
4
Connections (from left to right):
Connection for Lap Counter 20030342
1
Connection for Carrera AppConnect 20030369, PC-Unit or
2
Lap Counter 20030355
Connector 1 for speed controller, speed controller extension set
3
or WIRELESS+ receiver
Connector 2 for WIRELESS Tower 20010108
4
Connector 3 for speed controller
5
Connector 4 for speed controller
6
Connection for DIGITAL 124 / DIGITAL 132 power supply
7
General information on connectors 1- 4:
When a WIRELESS+ receiver is used, it must be plugged into con-
nector 1. Optionally a WIRELESS Tower 20010108 can be plugged
into connector 2. When only the WIRELESS+ receiver is used, con-
nector 2 is to be left empty.
Connecting the receiver
Connect the receiver according to the symbol to either of the two
sockets on the control unit which are marked Tower 1 and Tower 2.
For operating four WIRELESS+ speed controllers only one 2.4 GHz
receiver is required.
Connecting the charging unit
The charging unit is connected at the rear of the control unit. To site
the charging unit at any other place on the track, an adapter unit
20030360 will be needed.
Rear view of the
control unit
5
Additional wired speed controllers may be plugged into connectors
3 and 4. Please note that these will use address 5 and 6 then.
Using the speed controller extension set 20030348 it has to be
plugged into connector 1. The cars´ addresses will be allocated as
follows:
• Speed controller extension set = address 1, 3 and 4
• connector 2 = address 2
• connector 3 = address 5
• connector 4 = address 6
Note:
a combination of WIRELESS and speed controller extension set is
not possible!
Please note that in DIGITAL 124 the number of cars is restricted
to four.
Charging the speed controllers
Before fi rst being used, the WIRELESS+ speed controllers should
be fully charged. Place the speed controllers in the charging station
and switch on the control unit. While the unit is charging, the LEDs
on the speed controllers will fl ash. When charging is completed,
1
the LEDs
will light up continuously.
1
When using a lithium polymer rechargeable battery, it is possible to
top up the speed controller at any time.
1
Symbols
Binding process
1
1
CHANNEL
SET
3
1
3
CHANNEL
2
SET
Before the speed controller can be used to control the cars, it must
be "bound" to the receiver.
To do this, switch on the control unit.
1
The receiver indicates it is ready for operation by a revolving light
signal in the segment display
1
2
Push the "SET" button
once until the fi gure 1 appears in the seg-
2
ment display
. The number shown is then the address of the car.
1
Switch to the next address by further pressing the button.
Now press the binding button
3
The speed controller signals a successful binding process with
fl ashing of the LED, while the receiver indicates it by revolving lights
in the segments. The binding process is now complete and the
speed controller is ready for use.
3
To bind the second speed controller, follow the same procedure.
Press the "SET" button
2 appears
speed controller.
4
To display the address set for the speed controller, press once on
the binding button
The LED
If the speed controller is not actuated, it switches automatically after
6
7
about 20 seconds into energy-saving mode. The speed controller
can be reactivated by pressing the tappet or the lane-change button.
Control elements Control Unit
On/off switch
1
Switch for fuelling function
2
Button to start the race / acknowledge programming
3
Button for Pace Car / termination of programming
4
Button for setting basic speed
5
Button for setting braking performance
6
Button for setting fuel tank capacity
7
Programming button for cars
8
General operating information
Some buttons are assigned with diff erent tasks. In order to set a
function you need to use key combinations. Any programming steps
can be cancelled with button
further details in the course of this manual.
1
2
1
2
3
1
3
CHANNEL
2
SET
To encode a car place it on the track and swich on the Control Unit.
Press "Code" button once
fi g.
2
. Then push lane-change-button once on the relevant speed
4
controller, fi g.
start to fl ash and the Control Unit´s LEDs 2-4 will light successively.
Once encoding has been carried out the middle LED lights perma-
2
nently (fi g.
Note: This kind of encoding requires to only have the car on the
1
racetrack which shall be encoded.
.
on the top of the speed controller.
on the receiver twice, until the fi gure
2
. Then press the binding button
on the second
1
3
on the top of the speed controller.
2
will then fl ash, according to the address set.
1
4
3
2
1
5
6
7
8
4
"ESC/PACE CAR". You will fi nd
Encoding/programming
of cars to the according
speed controllers
1
2
1x
8
4
8
, fi g.
; the fi rst LED starts to light,
1
. In case the car is equipped with lights they will
3
) and the car is allocated to the speed controller.
4
