Owner's manual
Dear customer,
Congratulations on the purchase of this product.
Please take note of the following points, in order to ensure the con-
tinued enjoyment of this product. Please read this owner's manual
carefully before use. The owner's manual as well as the packaging
are a constituent part of the product. Both should be stored for
future issues. This product is not intended for commercial use. The
use requires specific knowledge and skills. The product should only
be made available to a user of the appropriate age and should only
be used for its intended purpose. The assembly has to be carried
out by an adult.
Technical product specifications
Article:
Muuwmi Roller Fun 12 Zoll schwarz
Article number:
592
Userweight:
50 kg
Product dimensions:
81 x 56 x 108 cm
Content
1x handlebar with clamp shaft
1x frame with front fork
1x front wheel
1x rear wheel
2x handlebar impact protection
1x instruction manual
Other parts serve as transport protection and are not required for the
assembly and use of the article.
Assembly instructions
Caution: Be careful not to get your fingers caught in the locks or
joints.
The scooter must be assembled by an adult.
Please insert the handlebar (1) with the clamping shaft into the stee-
ring column of the front wheel fork (2) from above. Make sure that the
steering alignment is parallel to the front wheel and that the desired
height of the handlebar is set.
When doing so, do not extend the handlebar beyond the MAX mark.
Now tighten the clamp using the clamping screw (3) on the steering
head. The front brake must also point in the direction of travel and
the brake cables must run in front of the handlebars. You can adjust
the angle of the handlebars by loosening the handlebar head screws
(4), adjusting the handlebar angle and tightening the handlebar head
screws (4) again. Now insert the wheels, if not already mounted, into
the front and rear wheel axles. Make sure that the locking washer (5)
is hooked onto the frame and then tighten the wheel nuts.
Attach the handlebar bumper (6) to the handlebar. Finally, hook the
brake cable into the position shown (7) for the front and rear brakes.
Finally, check the function of the brakes. If necessary, they must be
readjusted. See also the instructions for adjusting the brakes.
Inflating the tyres
Note: The scooter's tyre is only 50% inflated due to transport condi-
tions. Before using the scooter for the first time
inflate the tyre as described below.
The tyre pressure must not exceed 2.0 bar. Exceeding
exceeding this value can cause the tyre to burst or damage the rim.
damage to the rim.

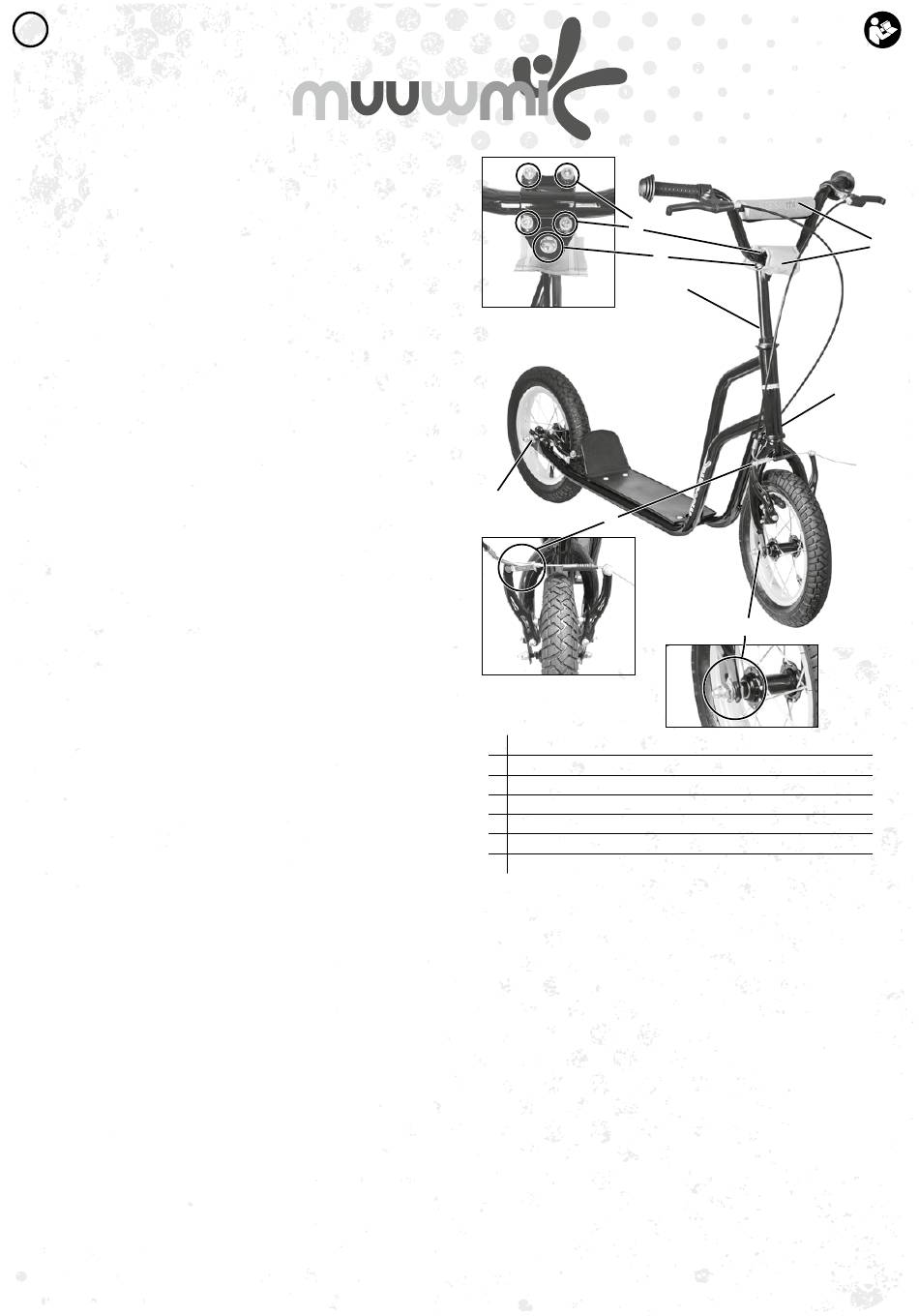

Pictures are
design examples.
4
3
5
7
1
Handlebar with clamp shaft
2
Frame with front fork
3
Clamping screw for clamping the handlebars in the frame
4
Handlebar retaining screws for changing the handlebar angle
5
Locking washer
6
Handlebar impact protection
7
Brake cable attachment point on brake
Warning notices
As with all mobile products, the riding of a scooter can also constitute
a dangerous activity and lead to dangerous situations. This scooter
should be used with caution, since a certain degree of skill is required
in order to avoid falls and collisions that could result in injury to the
user or third parties. Please make sure that you have read the entire
user manual before using the scooter. Take particular note of the
following notices.
1. Always wear protective clothing, such as helmets, hand-/wrist
guards, elbow pads, knee pads, long-sleeved shirts and long pants.
Always wear a helmet when you are travelling with your scooter,
and tighten the chin strap securely.
2. Always wear completely closed shoes and make sure that laces are
properly tied up before you ride off. You may not ride barefooted or
in sandals.
1
2
5
Art.-No: 592
Status 09/20
Page 4/12
