Operating Instructions
LED Magnifying Lamp with Third Hand
Item No. 2526774
1 Intended use
This product is a magnifying Lamp intended for detailed tasks, such as circuit board soldering,
small parts assembly, electronics repair, crafts, and more. The product is designed with an LED
lamp with magnifying glass (1.75X / 4X), 3 helping hands with alligator clips, soldering iron
holder, soldering wire spool holder, and 3 compartments on the metal base to hold the included
accessories or small items. The LED lamp is powered via the USB-C
The product is intended for indoor use only. Do not use it outdoors. Contact with moisture must
be avoided under all circumstances.
If you use the product for purposes other than those described, the product may be damaged.
Improper use can result in short circuits, fires, or other hazards.
The product complies with the statutory national and European requirements. For safety and
approval purposes, you must not rebuild and/or modify the product.
Read the operating instructions carefully and store them in a safe place. Make this product
available to third parties only together with the operating instructions.
All company names and product names are trademarks of their respective owners. All rights
reserved.
USB4
, USB Type-C
and USB-C
are registered trademarks of USB Implementers Forum.
®
®
®
2 Delivery content
Product
Cleaning ball
Sponge (30 x 50 mm)
3 Latest product information
Download the latest product information at
shown. Follow the instructions on the website.
4 Description of symbols
The following symbols are on the product/appliance or are used in the text:
The symbol warns of hazards that can lead to personal injury.
5 Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
5.1 General information
The product is not a toy. Keep the product and accessories out of the reach of children
and pets.
Do not leave packaging material lying around carelessly. This may become dangerous
playing material for children.
If you have questions which remain unanswered by these operating instructions, contact
our technical support service or other technical personnel.
Maintenance, modifications and repairs must only be completed by a technician or an
authorised repair centre.
5.2 Handling
Please handle the product carefully. Jolts, impacts or a fall even from a low height can
damage the product.
5.3 Operation
WARNING! Risk of fire or injury. Do not place the magnifier in direct sunlight. Sunlight
passing through or reflecting off the lens can cause a fire or burn injuries.
WARNING! Risk of injury. Never use the magnifier to observe the sun or other strong light
sources, such as lasers. This can cause permanent damage to the eyes.
Do not place flammable objects in front of the lens.
If it is no longer possible to operate the product safely, take it out of operation and protect
it from any accidental use. DO NOT attempt to repair the product yourself. Safe operation
can no longer be guaranteed if the product:
– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods in poor ambient conditions or
– has been subjected to any serious transport-related stresses.
port.
®
USB cable
Operating instructions
www.conrad.com/downloads
or scan the QR code
5.4 Operating environment
Do not place the product under any mechanical stress.
Protect the product from extreme temperatures, strong jolts, flammable gases, steam and
solvents.
Protect the product from high humidity and moisture.
Protect the product from direct sunlight.
5.5 LED light
Attention, LED light:
Do not look directly into the LED light!
Do not look into the beam directly or with optical instruments!

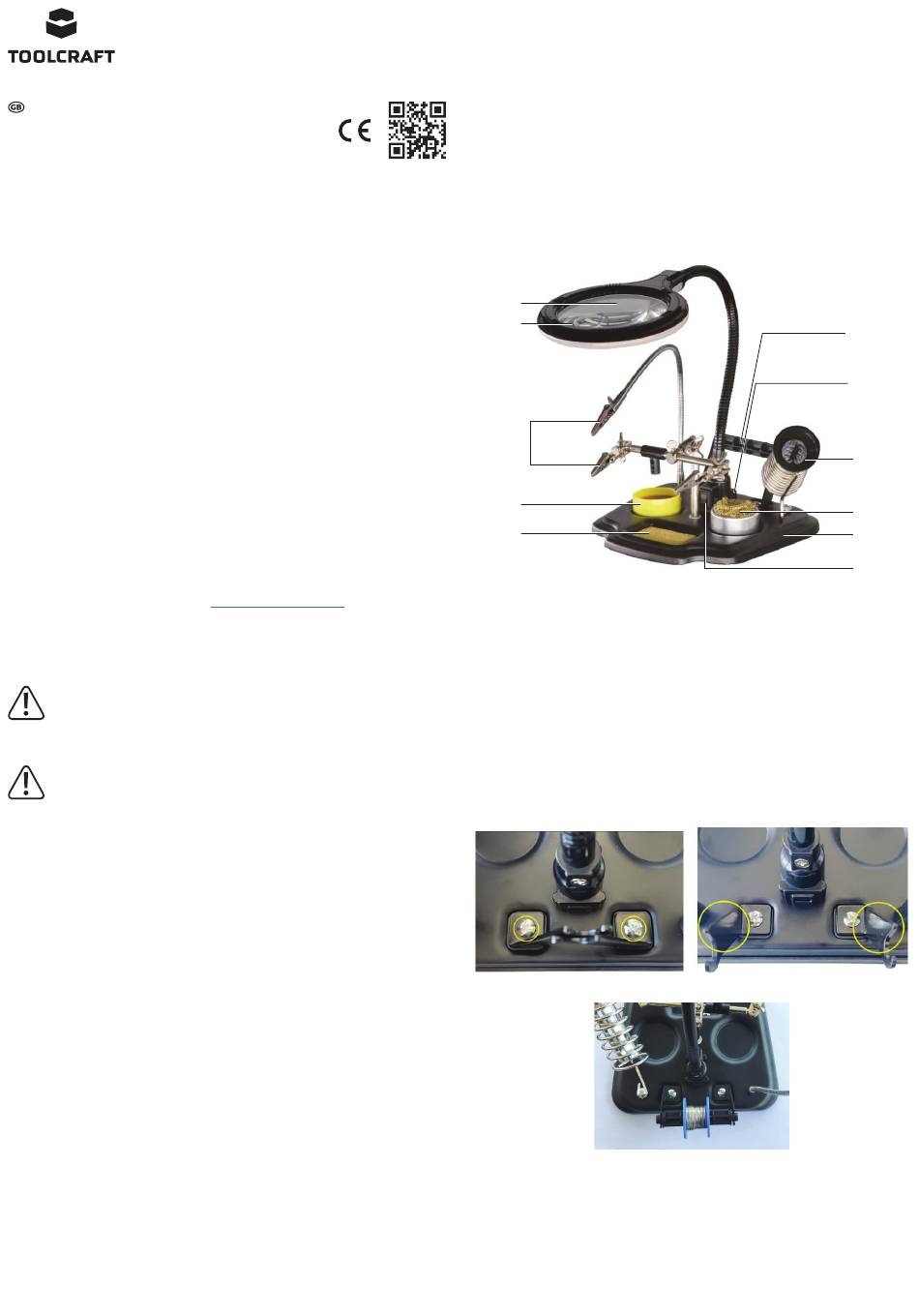

6 Product overview
1
2
3
4
5
1 1.75X Magnifying glass with LED lamp
2 4X Auxiliary lens
3 Helping hands with alligator clips
4 Rosin (not included)
5 Cleaning sponge
6 ON/OFF switch
7 Assembly
1. To assemble the wire spool holder, use a screwdriver to loosen the screws of the 2 brackets
on the back of the product, as shown (Fig. 1).
2. Turn the 2 brackets until they point towards the back and are parallel with each other, and
tighten the screws (Fig. 2).
3. Insert the spool pin into your wire spool, then mount it on the 2 brackets (Fig. 3).
Fig.1
* The wire spool is not included.
7 Metal base
8 Cleaning ball
9 Soldering iron holder
10 USB-C
input port
®
11 Wire spool holder / Spool pin
Fig.2
Fig.3*
11
10
9
8
7
6
