Klarstein HAPPY HOUR Bedienungsanleitung Seite 25

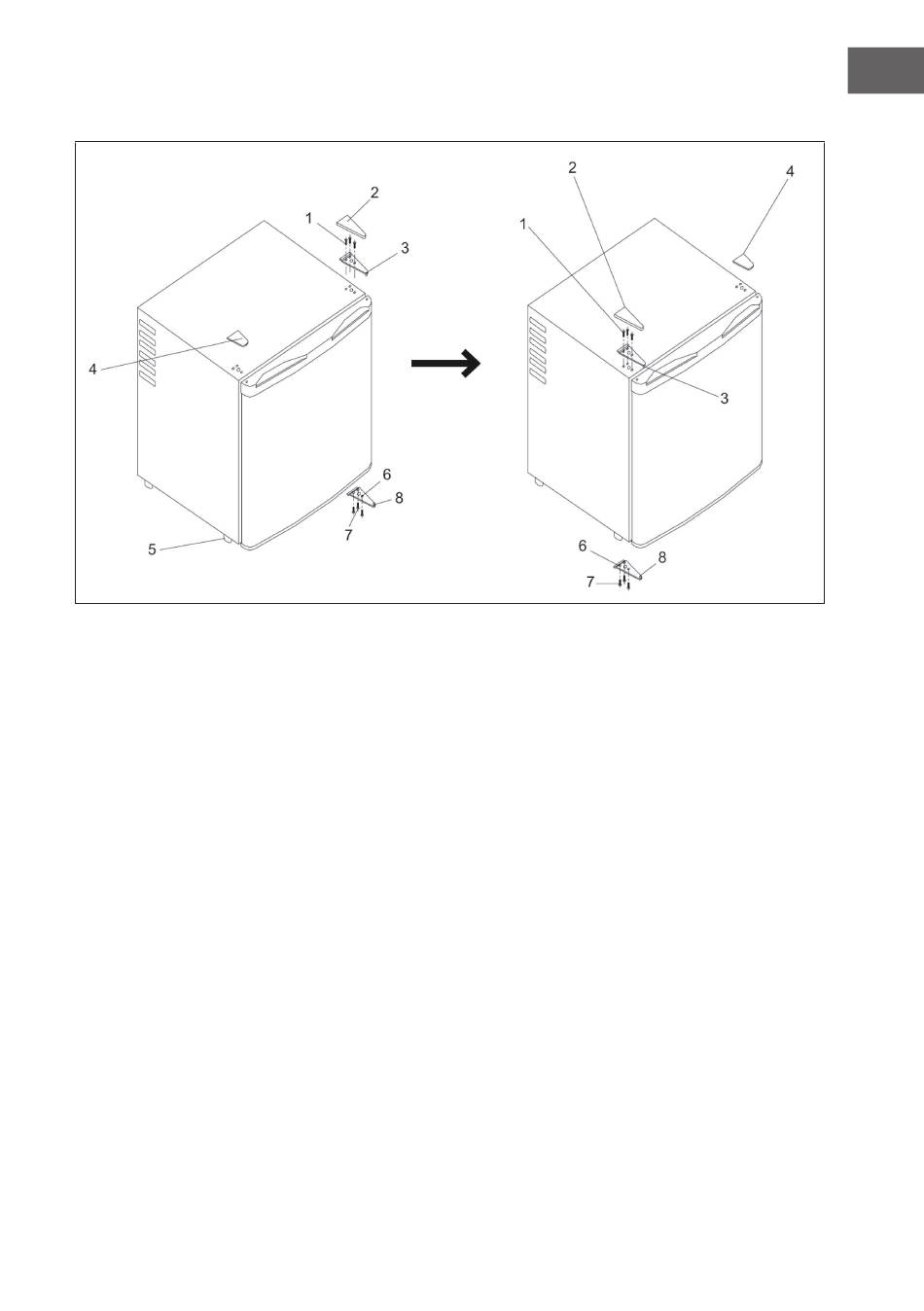

Reversing the Door Swing
1 Remove the upper hinge cover (2).
2 Remove the screws (1) that fix the upper hinge (3) to the appliance and then
remove the upper hinge.
3 Lift the door and place it on a padded surface to prevent scratching it.
4 Remove the screws (7) that hold the lower hinge (6) and then remove the lower
hinge.
5 Remove the foot (5) and transfer it to the opposite side.
6 Remove the cover plate (4) to the opposite side.
7 Before placing the lower hinge, remove the bolt (8) and reverse the direction of the
lower hinge. Then install the lower hinge onto the opposite side with the screws.
8 Insert the bolt to the lower hinge.
9 Set the door to its place making sure the door seats at the lower hinge.
10 While holding the door in the closed position secure the upper hinge onto the
appliance with the screws (1). Ensure the door is aligned horizontally and vertically
so that the seals are closed on all sides before finally tightening the screws.
1 1 lnstall the upper hinge cover on the upper hinge.
