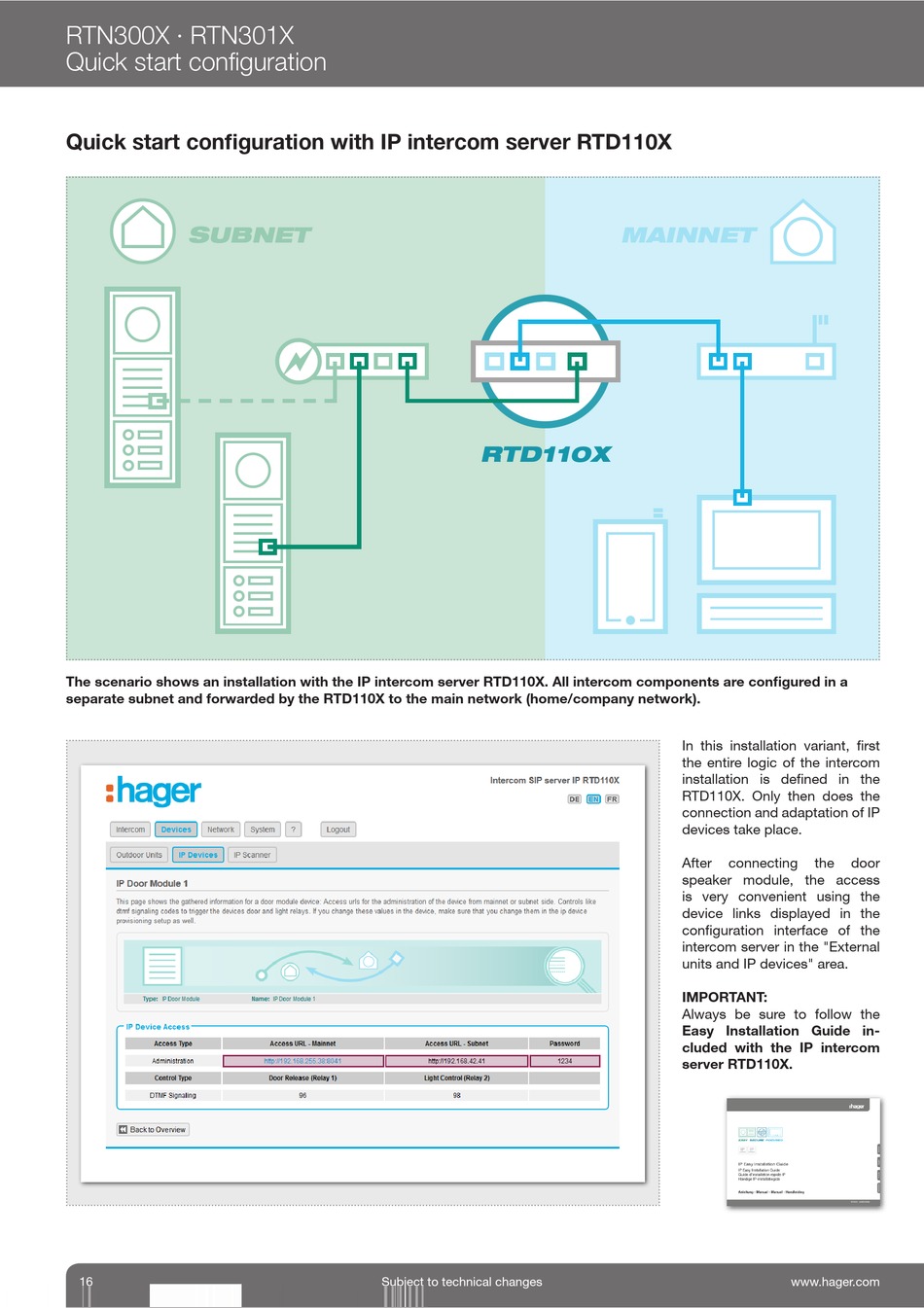

RTN300X · RTN301X
Quick start configuration
Quick start configuration with IP intercom server RTD110X
SUBNET
The scenario shows an installation with the IP intercom server RTD110X. All intercom components are configured in a
separate subnet and forwarded by the RTD110X to the main network (home/company network).
16

Subject to technical changes
MAINNET
RTD110X
In this installation variant, first
the entire logic of the intercom
installation is defined in the
RTD110X. Only then does the
connection and adaptation of IP
devices take place.
After connecting the door
speaker module, the access
is very convenient using the
device links displayed in the
configuration interface of the
intercom server in the "External
units and IP devices" area.
IMPORTANT:
Always be sure to follow the
Easy Installation Guide in-
cluded with the IP intercom
server RTD110X.
