SSP HOLDX RS1-P8-S-B-S0130 Betriebsanleitung Seite 30

Automatic Reset
HOLDX RS1-P8-S-B-S0130
HOLDX RS1-P8-_-B
HOLDX RS1-P8-W-B-S0132
HOLDX RL1-P8-_-B
5 3 4 2 7 1 6 8
24V DC
GND

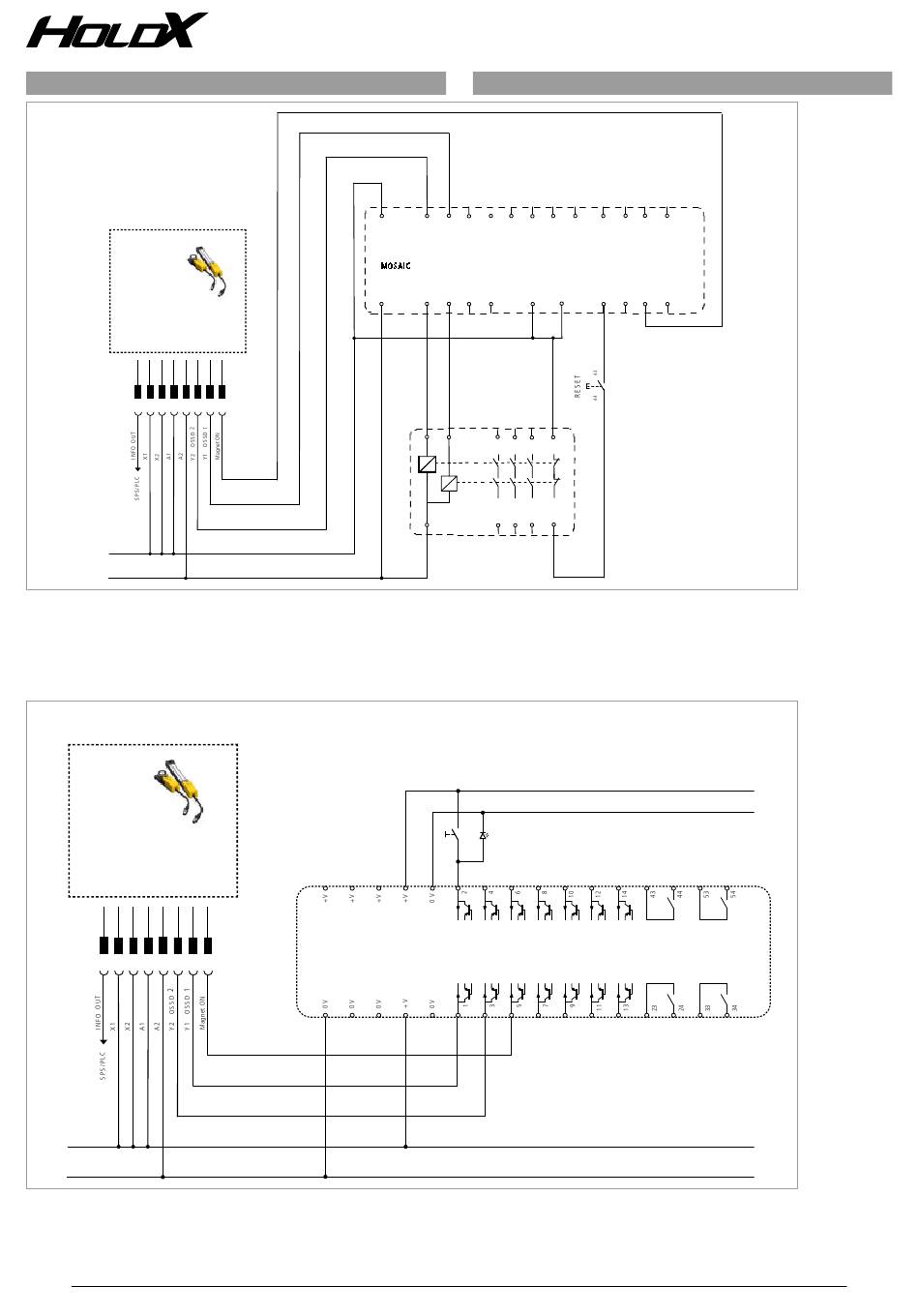

Fig.17: Connection example 4
HOLDX RS1-P8-S-B-S0130, HOLDX RS1-P8-W-B-S0132, Mosaic Safety PLC
The inputs X1 and X2 are connected with 24 VDC. Outputs Y1 and Y2 are connected to two inputs on the Mosaic safety PLC. The serial OUT diagnosis output can be connected, for example,
to a standard PLC. The magnet ON input can be controlled, for example, by the Mosaic safety PLC or a standard PLC.
Automatic Reset
HOLDX RS1-P8-S-B-S0130
HOLDX RS1-P8-_-B
HOLDX RS1-P8-W-B-S0132
HOLDX RL1-P8-_-B
5 3 4 2 7 1 6 8
24V DC
GND
Fig.18: Connection example 5
HOLDX HOLDX RS1-P8-S-B-S0130, HOLDX RS1-P8-W-B-S0132 connection, wireless safety PLC Safety Simplifier.
The inputs X1 and X2 are connected with 24 VDC. Outputs Y1 and Y2 are connected to two inputs on the Safety Simplifier. The diagnosis output pin 5 can be connected, for example, to a
standard PLC. The magnet ON input can be controlled, for example, by the Safety Simplifier or a standard PLC.
30
1 17 18 19 20 21 22
24V DC IN1 IN2 IN3 IN4 IN5 IN6 IN7 IN8
MO S AI C
GND
OSSD1A OSSD1B OSSD2A OSSD2B M-ENABLE 1 M-ENABLE 2
4 5 6 9 10 2
13 23 33
K1
K2
14 34
24
Safety relay E
SP-S-00-003-01
13 X2
14 X1
Safety Simplifier S16
HOLDX RS1-P8-S-B-S0130
HOLDX RS1-P8-W-B-S0132
23 24 13 14 15 16
OUT1 OUT2 OUT3 OUT4
FBK1 FBK2 OUT ST 1 OUT ST 2
3 7 11 8 12
41
42
16
15
EN
