ENGLISH

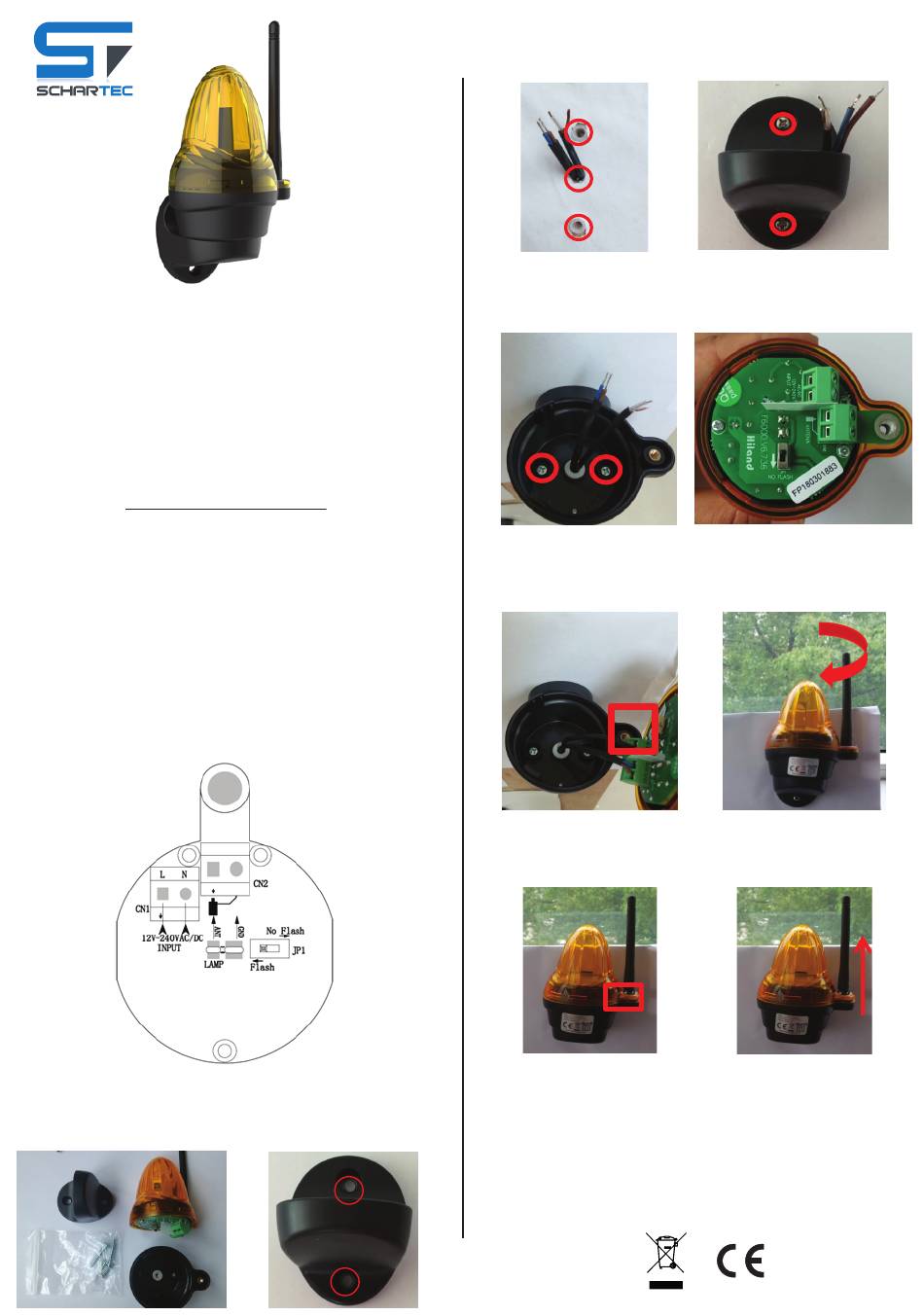

Schartec Mini Signal Lamp
Power supply: 85-240 V AC or 12-24 V AC/DC
Power consumption: <3 W
Flashing frequency: 1 Hz
Operating temperature: -20°C to +60°C
Protection class: IP54
Dimensions: 76 x 125 mm (incl. antenna)
Weight: 83 g
Model number: F6000
Article number: ST201015
WARNING Danger to life!!!
Switch off the voltage and check that it is de-energized
before connection
Connection
• Connect the power supply to CN1, for power supply 12-24 V AC/DC or 85 - 240 V AC
• Connector CN2 is for connection to the external antenna
ATTENTION
○ Connection CN1 must always be connected with an insulated cable.
○ Connection CN2 must always be connected with a shielded cable.
DIP switch
• Flash switch set to 'NO FLASH', LED lights up or flashes depending on the setting in the
operator (see operating instructions of the operator).
• The flash switch is set to 'FLASH'. The LED flashes at 1 Hz.
Installation
1. Open the packaging, remove the light and accessories and turn the antenna counterclockwise.
2. Mark the two drill holes on the desired mounting surface.
3. Drill two 6mm holes and one 10mm hole for the connection cable. Insert the dowels into the 6
mm holes and the connection cable into the 10 mm hole.
4. Feed the connection cable through the bracket and fasten it with the two screws (TA4 x 30
mm).
5. Guide the connection cable and the antenna cable through the rubber seal. Fasten the bottom
shell with the two screws (PA4*10 mm).
6. Make sure that the sealing ring is correctly seated in the cover.
7. Connect the connection cable and the antenna to the terminals provided. Make sure that the
cables are firmly connected.
8. Install the light cover, make sure it is properly seated on the bracket, and then tighten the
antenna clockwise.
9. Make sure the cover fits snugly on the bottom shell and tighten the antenna so that it cannot
come loose. Use some glue to secure the antenna so that it cannot be removed.
10.IMPORTANT! Be sure to mount the signal light with the antenna facing up.
Simplified EU Declaration of Conformity (CE)
Schartec hereby declares that the signal lamps F5000, F5015 and F6000 comply with Directive 2014/53/EU. The
full text of the EU Declaration of Conformity is available at the following Internet address: www.schartec.de
a trademark of bau-shop-24 GmbH
WEEE Reg. Nr.: DE90317979
OK
SCHARTEC
Fritz-Müller-Strasse 119
73730 Esslingen
Germany
