Installation

Please read the instructions provided in this chapter thoroughly before installing
the camera.
3.1

Ceiling / Wall Mounting

The camera can be installed directly on a wall or ceiling with the integrated
adjustable Bracket Mount. Please note that the wall or ceiling must have enough
strength to support the camera. Follow the steps below to install the camera.

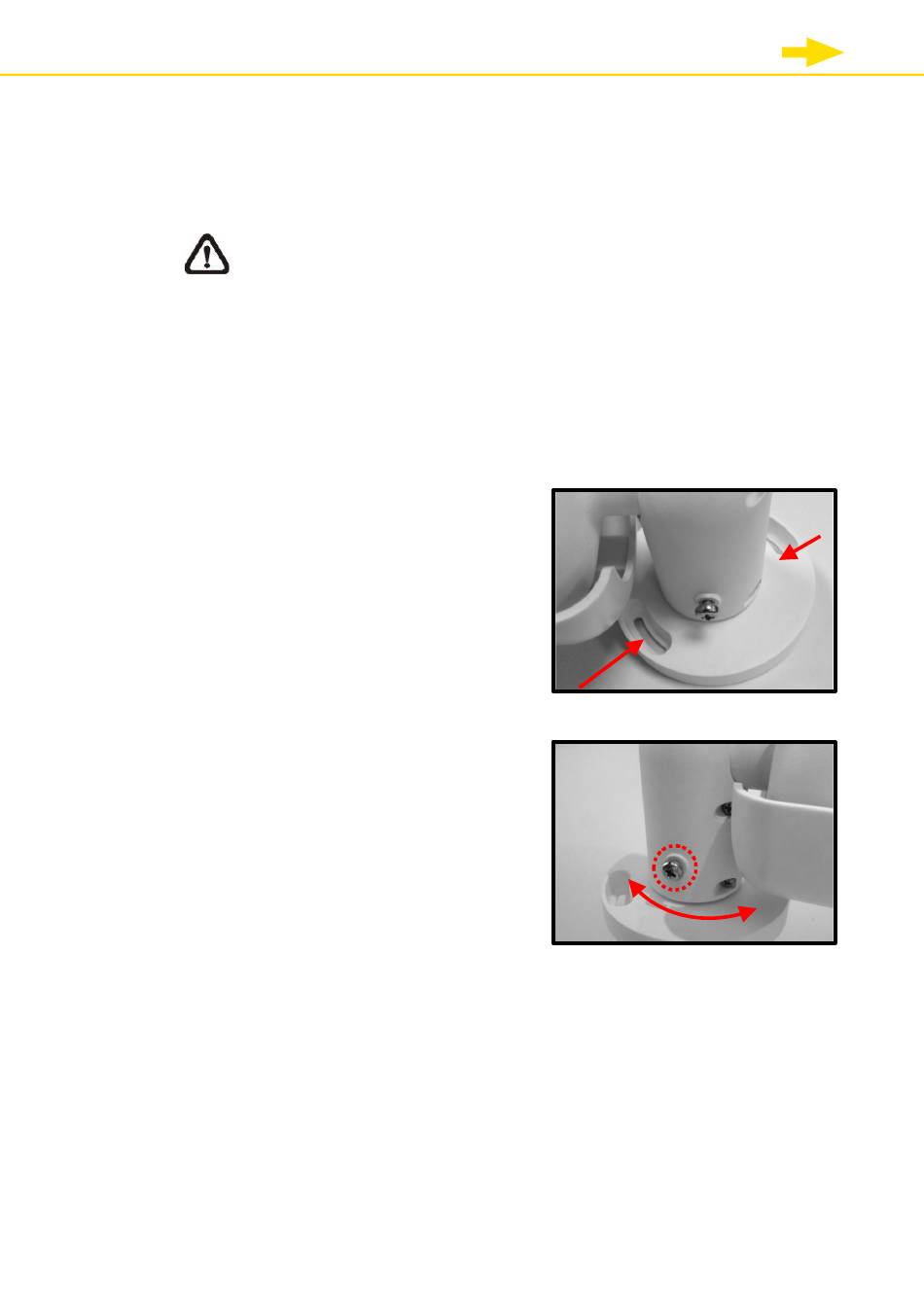

Step 1:
Place the camera at the installation
location. On the ceiling / wall, mark the
position of the two screw holes of the
camera.
If the screw holes are blocked by the
camera body, loosen the screw shown in
the right figure but do not detach it. Then
rotate the camera body to reach the screw
holes.
Step 2:
At the center of the two marked holes, drill a 30 mm diameter (radius as 15 mm)
cable entry hole. Then drill a hole slightly smaller than the supplied plastic screw
anchor on each marked screw hole.
Installation Manual
NOTE: This camera must be installed by qualified personnel and the
installation should conform to all local codes.
