Enclosure with UV and weather resistance
After some time, outdoor mounted plastics can lose their color and quality. Therefore, all hinged cover enclosures
are made of special white polycarbonate (PC). The light-stable colorants and additives are used to achieve
optimum protection of the polymer while maintaining color stability. The titanium dioxide used is especially
developed for polycarbonate and offers excellent UV protection through the reflection of the entire light spectrum
including the UV component around 340 nm. This effectively counteracts the otherwise occurring photochemical
polymer degradation. The color intensity is preserved for a long time without fading. The material is also resistant
to cold and frost.
Technical Specifications
Models
Output switch contact
Power supply
Power consumption
Display
Enclosure
Protection
Cable entry
Connection electrical
Ambient condition
Storage condition
Mounting
Connection plan
The representation of the relay contact indicates the operating state "Devices connected to voltage supply and
no leakage is detected". The contacts 4 and 5 are connected. The relay is energized in this operating state.
When fluids are detected or when switching off the operating voltage, it falls off.
STS-6301L-024
The leakage sensor lies with its own weight on the four contact
feet. The detector electrodes are electrically insulated at the
lower end, whereby a surface condensation is not detected. The
height of the insulation can be variably adjusted, which makes it
easy to adapt to local conditions.
For height adjustment, please note that only the plastic adjustment
screw (insulation) is moved in the direction of rotation and not the
detector electrode (hexagonal spacer sleeve).
Depending on the type and concentration, aggressive and
solvent-containing fluids can damage the sensor and lead to
incorrect measurements. A contamination of the sensor
electrodes also leads to incorrect measurements.

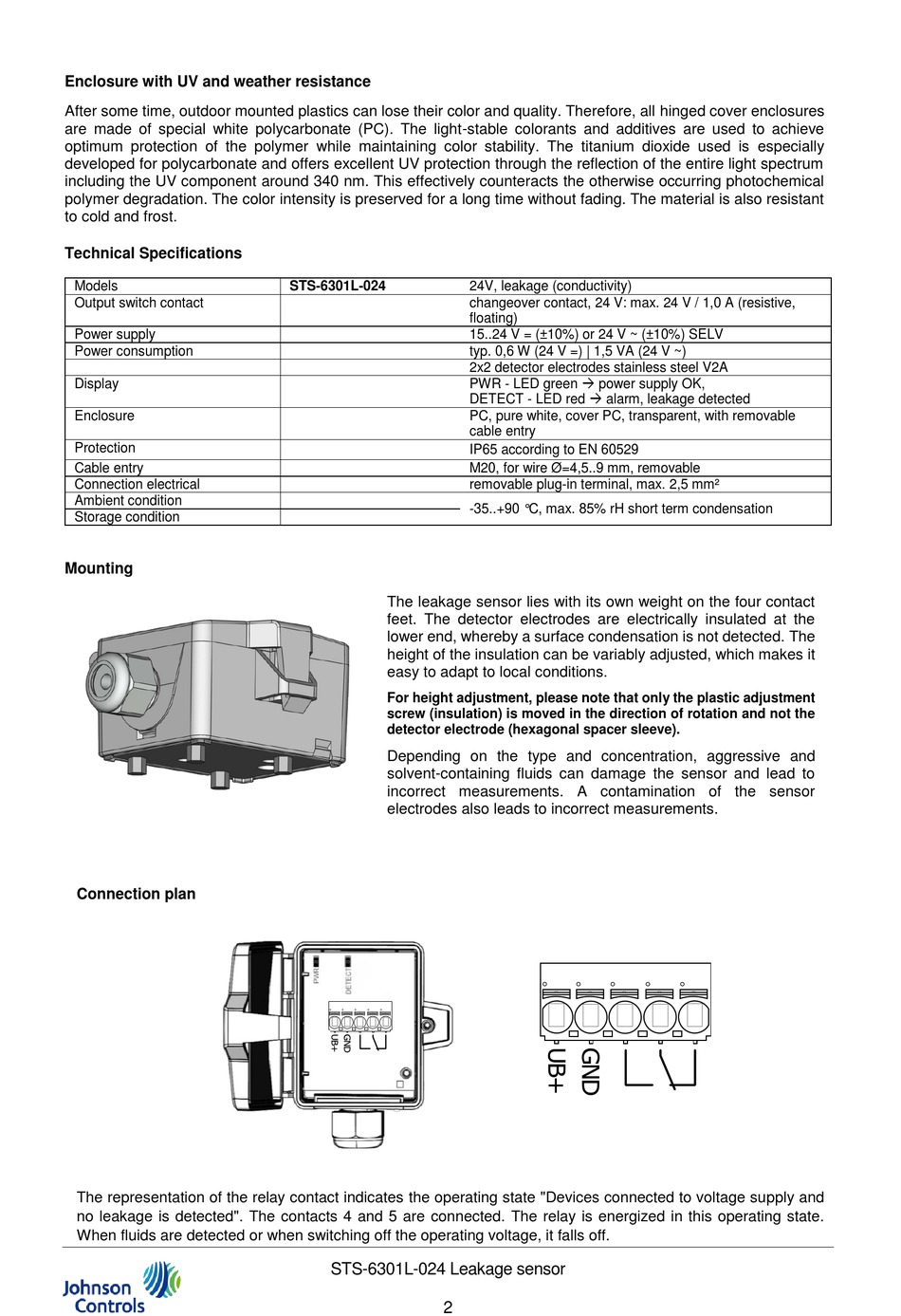

STS-6301L-024 Leakage sensor
2
24V, leakage (conductivity)
changeover contact, 24 V: max. 24 V / 1,0 A (resistive,
floating)
15..24 V = (±10%) or 24 V ~ (±10%) SELV
typ. 0,6 W (24 V =) | 1,5 VA (24 V ~)
2x2 detector electrodes stainless steel V2A
PWR - LED green power supply OK,
DETECT - LED red alarm, leakage detected
PC, pure white, cover PC, transparent, with removable
cable entry
IP65 according to EN 60529
M20, for wire Ø=4,5..9 mm, removable
removable plug-in terminal, max. 2,5 mm²
-35..+90 °C, max. 85% rH short term condensation
