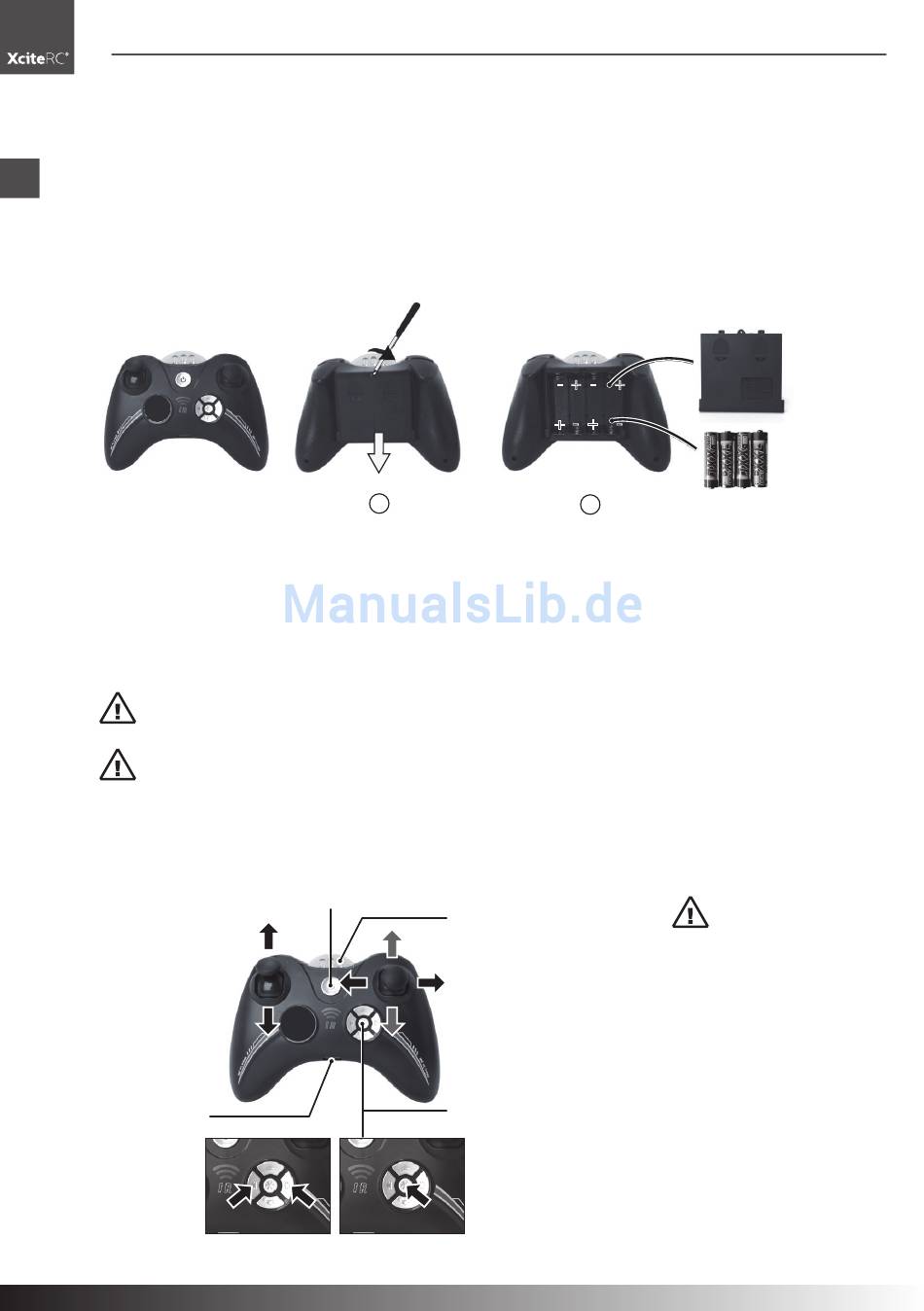

The remote control system

Here you get an overview of the remote control system of your XciteRC Flybar 180S and its various features
and settings. Before the fi rst fl ight, you should absolutely have read and understood all these functions and
EN
settings.
• Do make sure that the transmitter is turned off - POWER-LED off.
• Now open the battery compartment cover on the backside of the transmitter. Remove the srew and
slide the cover down (1). Insert four AA batteries into the battery compartment of the transmitter (2). Pay
attention to the correct polarity!
• Close the battery compartment cover, then turn on transmitter – push ON / OFF switch.
• When the POWER LED is fl ashing, move the left throttle lever to the top position, then back to the bottom.
The POWER LED will light constantly. This safety circuit prevents the rotor may start after turning on the
helicopter.
• The POWER LED must lit. Attention: if the POWER LED fl ashes or does not light at all, the model may
not started – crash hazard! Change transmitter batteries immediately.
• WARNING: check the POWER LED also during operation. If the POWER LED starts to blink, stop
operation, switch the model off and replace the transmitter batteries – crash hazard!
• ATTENTION: The maximum range of the remote control system is about 10 meters, do not fl y
farther away under any circumstances! If the XciteRC Flybar 180S gets out of range, the fail-safe function
is activated and turns off the motor.

Transmitter

USB-socket
Reset:
Press both trim buttons
for approx. 3 seconds,
when the POWER-LED
flashes 3 times all
calibrations return to zero.
16
ON/OFF-Switch
POWER-LED
Throttle
lever
1
IR-Transmitter
Direction
lever
Speed
Frequency select:
Press the button for
approx. 2 seconds to
choose frequency A or B.
The POWER-LED flashes
1 time for frequency A,
press the button again for
frequency B, the LED
flashes 2 times.
The remote control system
Battery cover
- -
+ +
2
4x 1.5 V AA
batteries
ATTENTION:
IR-Transmitter must always
point toward the helicopter -
crash hazard!
The helicopter can be ope-
rated
channels (A-B) - important
when two pilots wants to fl y
together. Select the channel
on the transmitter, switch on
the heli, when the LED on
the helicopters PCB start to
lit you can start.
XciteRC Flybar 180S Coax
The
with two different
