environmental requirements listed in Tab. "WORKING ENVIRONMENT
CONDITIONS" when working with the unit!
Ambient temperature [°C].
Relative humidity [%]
Altitude [m above sea level]
Transport and storage temperature
[°C]

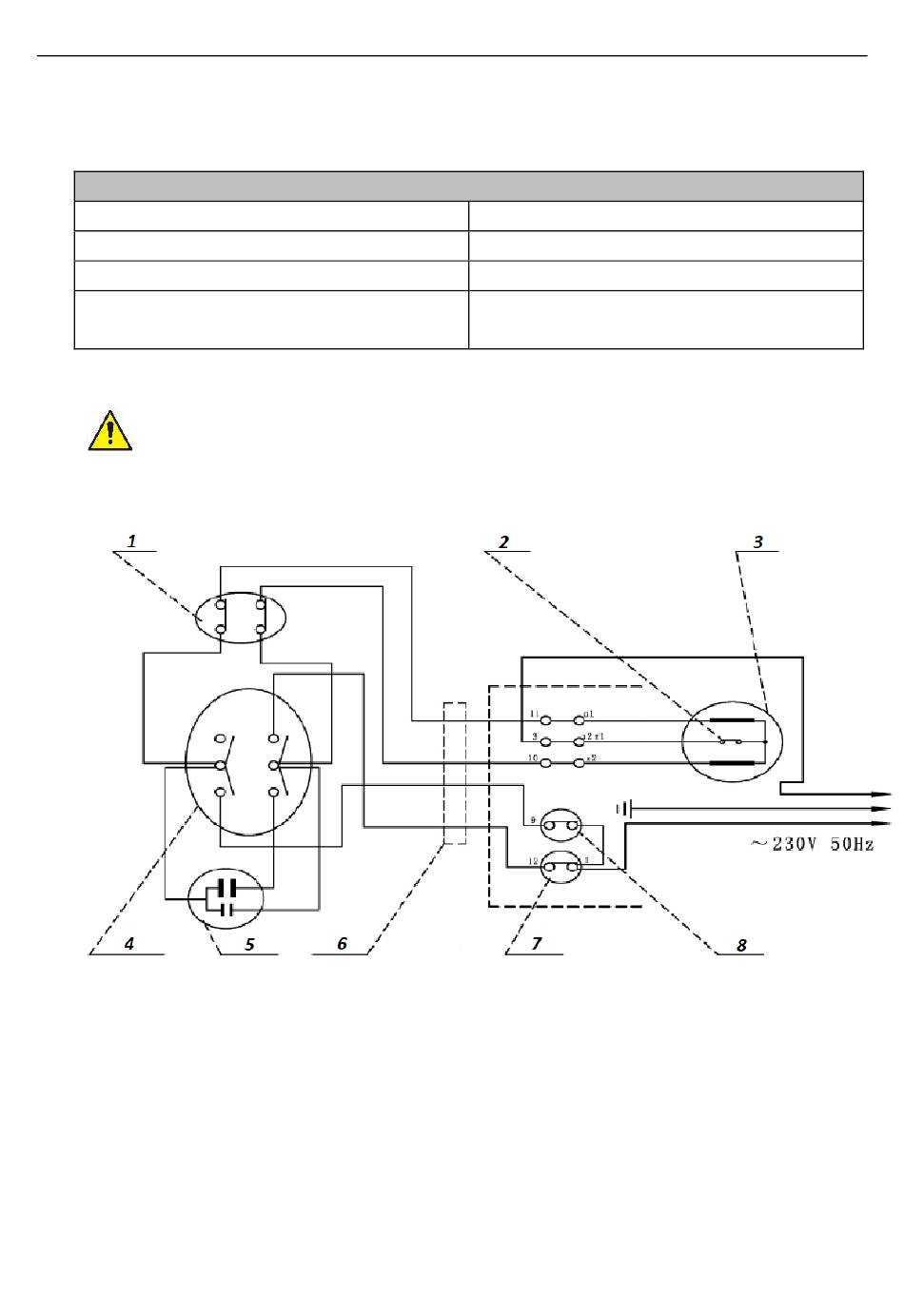

WIRING DIAGRAM

Caution! The electrical system to which the unit is connected should be
equipped with a 10 A fuse or a 10 A overcurrent circuit breaker.
ELECTRIC WINCH
1 - Emergency shutdown
2 - OTP protection
3 - Engine
4 - Movement switch
ELECTRIC CRANE
WORKING ENVIRONMENT CONDITIONS
0 ~ 40
< 85
< 1000
-25 ~ 55
5 - Capacitor
6 - Control cable
7 - "Down" limit switch
8 - "Up" limit switch
