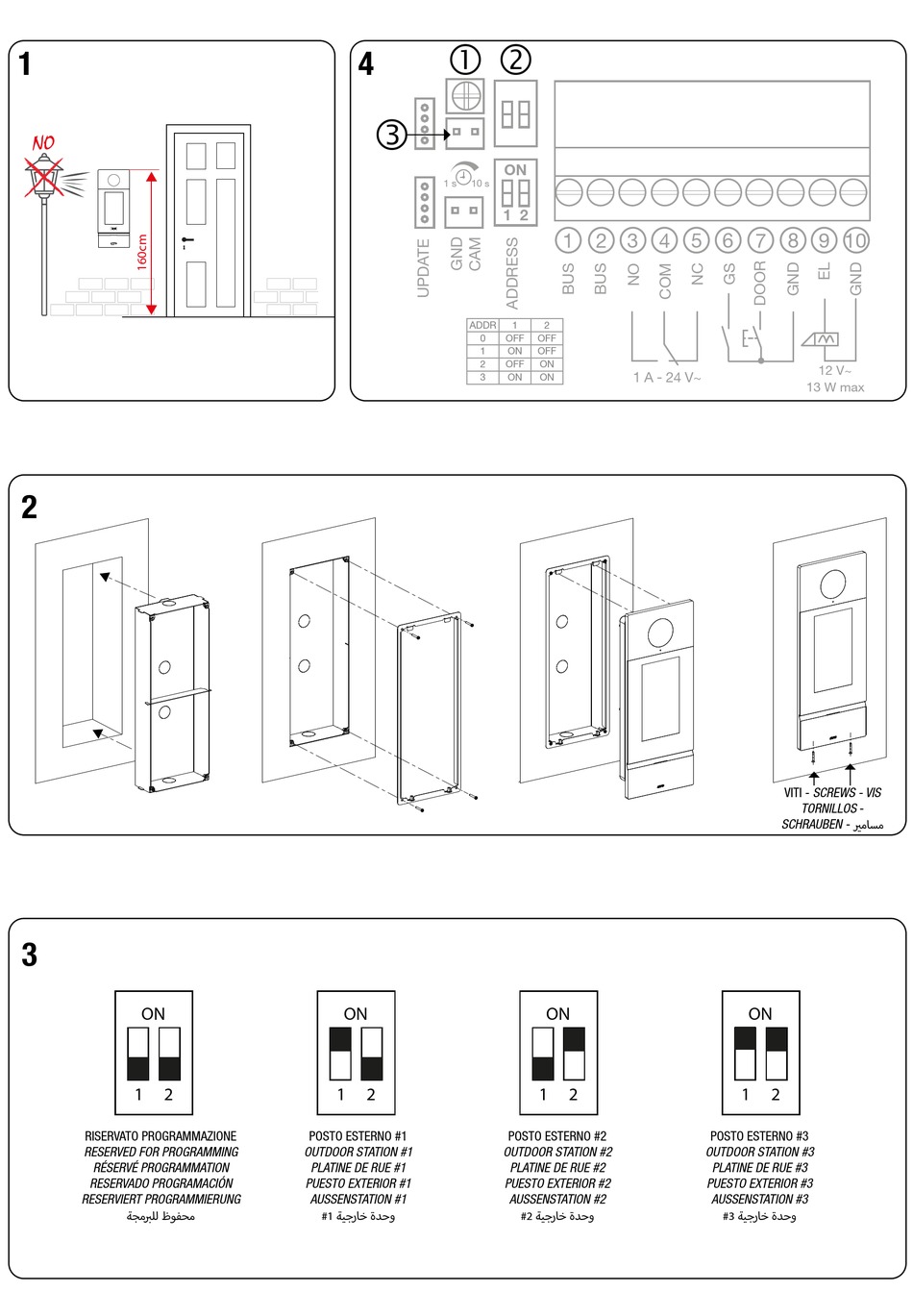

AVE VI2F-PE7T Bedienungsanleitung Seite 10

1
NO
2
3
ON
1 2
RISERVATO PROGRAMMAZIONE
RESERVED FOR PROGRAMMING
RÉSERVÉ PROGRAMMATION
RESERVADO PROGRAMACIÓN
RESERVIERT PROGRAMMIERUNG
‫محفوظ لل� ب مجة‬
 
4

1 s 10 s
ADDR
ON
1 2
POSTO ESTERNO #1
OUTDOOR STATION #1
PLATINE DE RUE #1
PUESTO EXTERIOR #1
AUSSENSTATION #1
#1 ‫وحدة خارجية‬
ON
1 2
1 2 3
1 2
0 OFF OFF
1 ON OFF
2 OFF ON
1 A - 24 V~
3 ON ON
ON
1 2
POSTO ESTERNO #2
OUTDOOR STATION #2
PLATINE DE RUE #2
PUESTO EXTERIOR #2
AUSSENSTATION #2
#2 ‫وحدة خارجية‬
4 5 6 7 8 9 10
12 V~
13 W max
VITI - SCREWS - VIS
TORNILLOS -
SCHRAUBEN -
ON
1 2
POSTO ESTERNO #3
OUTDOOR STATION #3
PLATINE DE RUE #3
PUESTO EXTERIOR #3
AUSSENSTATION #3
#3 ‫وحدة خارجية‬
‫مسام� ي‬
