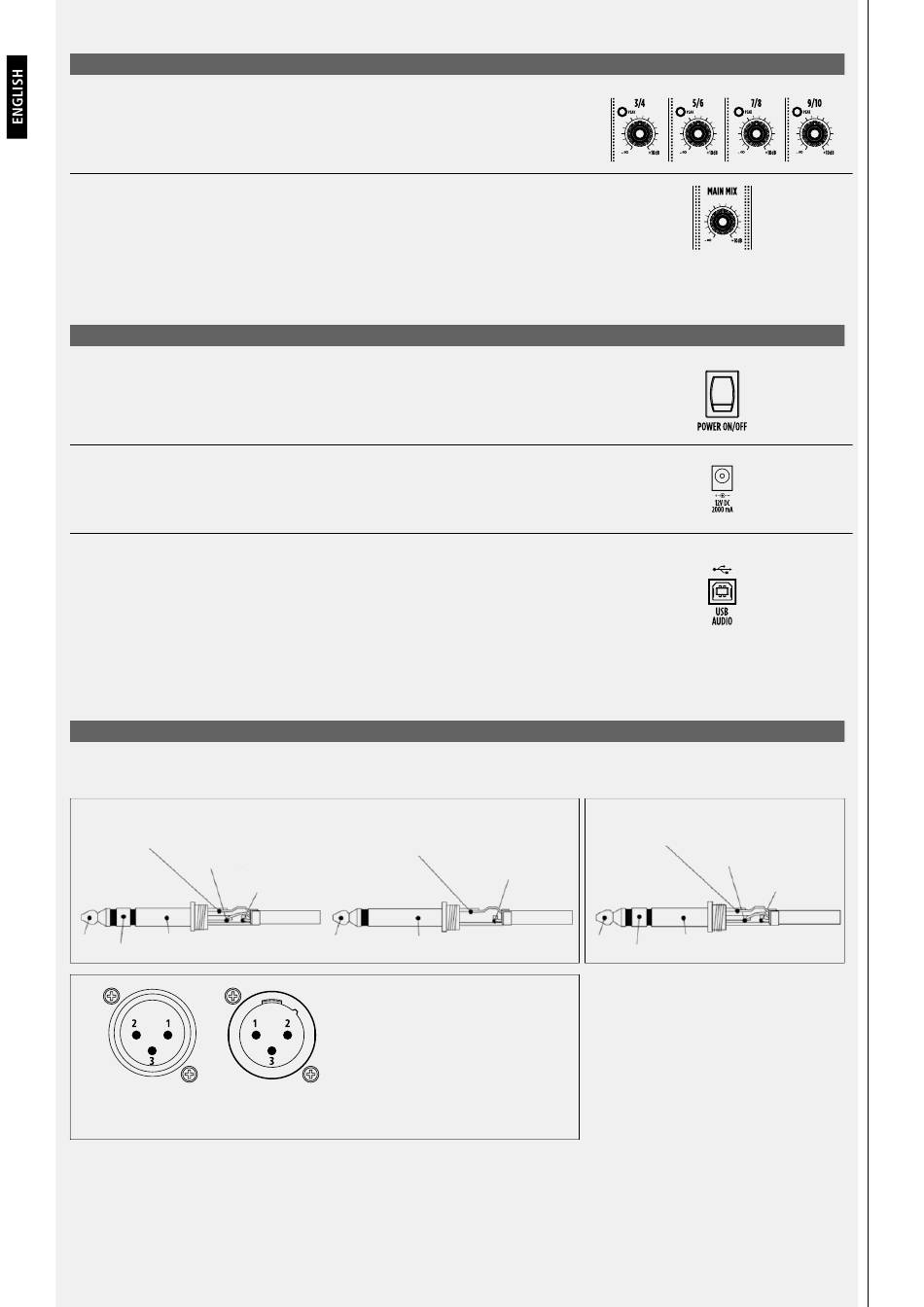

FRONT PANEL FUNCTIONS
[30] STEREO CHANNELS ROTARY KNOB SECTION
This section allows to control the level of every single stereo input channel.
[31] MAIN MIX ROTARY KNOB
The MAIN MIX rotary knob controls the level of the MAIN MIX.
REAR PANEL FUNCTIONS
[32] POWER SWITCH
Use this switch to turn on and off your F 10XR mixer.
[33] EXTERNAL POWER SUPPLY INLET
Connect here the external power supply. The external power supply accepts power from 100 V to 240 V
AC 50-60 Hz.
[34] USB TYPE B PORT
Use this port to connect your computer for audio stereo recording of the MAIN MIX signal and audio
stereo playback. The computer connection does not require any driver and allows the recording and
reproduction of PCM audio at 44.1/48.0 kHz -16 Bit. The audio signal coming from a computer
connected to the USB port can be reproduced through Channel 9/10 audio path (see section [15] of
this manual).
CONNECTORS
1/4" JACK CONNECTOR
BALANCED (TRS)
Tip = Hot
Ring = Cold
Sleeve
Tip
Ring
XLR Connector (F)
10
UNBALANCED (TS)
Tip = Hot
Sleeve = Ground
Tip
XLR CONNECTOR
Connector pinout:
1 = earth
2 = audio signal (+ or "hot")
3 = audio signal (– or "cold")
XLR Connector (M)
Sleeve = Ground
Sleeve
PHONES (TRS)
Tip=Left Channel
Ring = Right Channel
Sleeve = Ground
Sleeve
Tip
Ring
