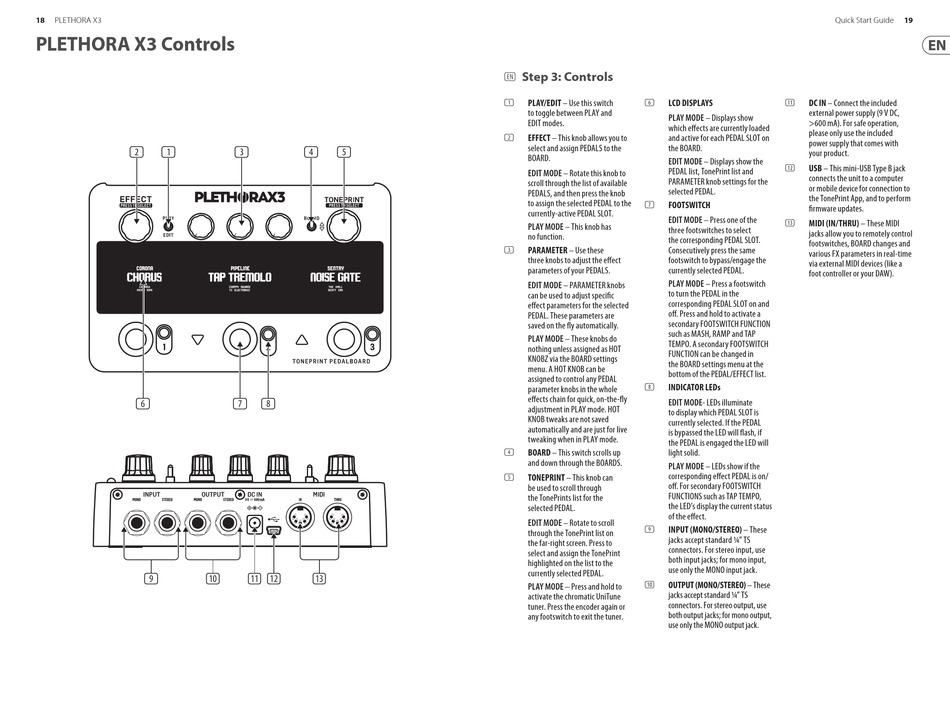

PLETHORA X3
PLETHORA X3 Controls
(2) (1)
(6)
(9) (10)
(3) (4) (5)
(7) (8)
(11) (12) (13)
Step 3: Controls
(EN)
PLAY/EDIT – Use this switch LCD DISPLAYS
(1) (6)
to toggle between PLAY and
PLAY MODE – Displays show
EDIT modes.
which effects are currently loaded
EFFECT – This knob allows you to and active for each PEDAL SLOT on
(2)
select and assign PEDALS to the the BOARD.
BOARD.
EDIT MODE – Displays show the
PEDAL list, TonePrint list and
EDIT MODE – Rotate this knob to
PARAMETER knob settings for the
scroll through the list of available
selected PEDAL.
PEDALS, and then press the knob
to assign the selected PEDAL to the

FOOTSWITCH

(7)
currently-active PEDAL SLOT.
EDIT MODE – Press one of the
PLAY MODE – This knob has
three footswitches to select
no function.
the corresponding PEDAL SLOT.
PARAMETER – Use these Consecutively press the same
(3)
three knobs to adjust the effect footswitch to bypass/engage the
parameters of your PEDALS. currently selected PEDAL.
PLAY MODE – Press a footswitch
EDIT MODE – PARAMETER knobs
to turn the PEDAL in the
can be used to adjust specific
corresponding PEDAL SLOT on and
effect parameters for the selected
off. Press and hold to activate a
PEDAL. These parameters are
secondary FOOTSWITCH FUNCTION
saved on the fly automatically.
such as MASH, RAMP and TAP
PLAY MODE – These knobs do
TEMPO. A secondary FOOTSWITCH
nothing unless assigned as HOT
FUNCTION can be changed in
KNOBZ via the BOARD settings
the BOARD settings menu at the
menu. A HOT KNOB can be
bottom of the PEDAL/EFFECT list.
assigned to control any PEDAL

INDICATOR LEDs

parameter knobs in the whole (8)
effects chain for quick, on-the-fly
EDIT MODE- LEDs illuminate
adjustment in PLAY mode. HOT
to display which PEDAL SLOT is
KNOB tweaks are not saved
currently selected. If the PEDAL
automatically and are just for live
is bypassed the LED will flash, if
tweaking when in PLAY mode.
the PEDAL is engaged the LED will
BOARD – This switch scrolls up light solid.
(4)
and down through the BOARDS.
PLAY MODE – LEDs show if the
corresponding effect PEDAL is on/
TONEPRINT – This knob can
(5)
off. For secondary FOOTSWITCH
be used to scroll through
FUNCTIONS such as TAP TEMPO,
the TonePrints list for the
the LED's display the current status
selected PEDAL.
of the effect.
EDIT MODE – Rotate to scroll
INPUT (MONO/STEREO) – These
(9)
through the TonePrint list on
jacks accept standard ¼" TS
the far-right screen. Press to
connectors. For stereo input, use
select and assign the TonePrint
both input jacks; for mono input,
highlighted on the list to the
use only the MONO input jack.
currently selected PEDAL.
OUTPUT (MONO/STEREO) – These
PLAY MODE – Press and hold to (10)
jacks accept standard ¼" TS
activate the chromatic UniTune
connectors. For stereo output, use
tuner. Press the encoder again or
both output jacks; for mono output,
any footswitch to exit the tuner.
use only the MONO output jack.
19
Quick Start Guide
DC IN – Connect the included
(11)
external power supply (9 V DC,
>600 mA). For safe operation,
please only use the included
power supply that comes with
your product.
USB – This mini-USB Type B jack
(12)
connects the unit to a computer
or mobile device for connection to
the TonePrint App, and to perform
firmware updates.
MIDI (IN/THRU) – These MIDI
(13)
jacks allow you to remotely control
footswitches, BOARD changes and
various FX parameters in real-time
via external MIDI devices (like a
foot controller or your DAW).
