Dimensions
Wall-mounted version

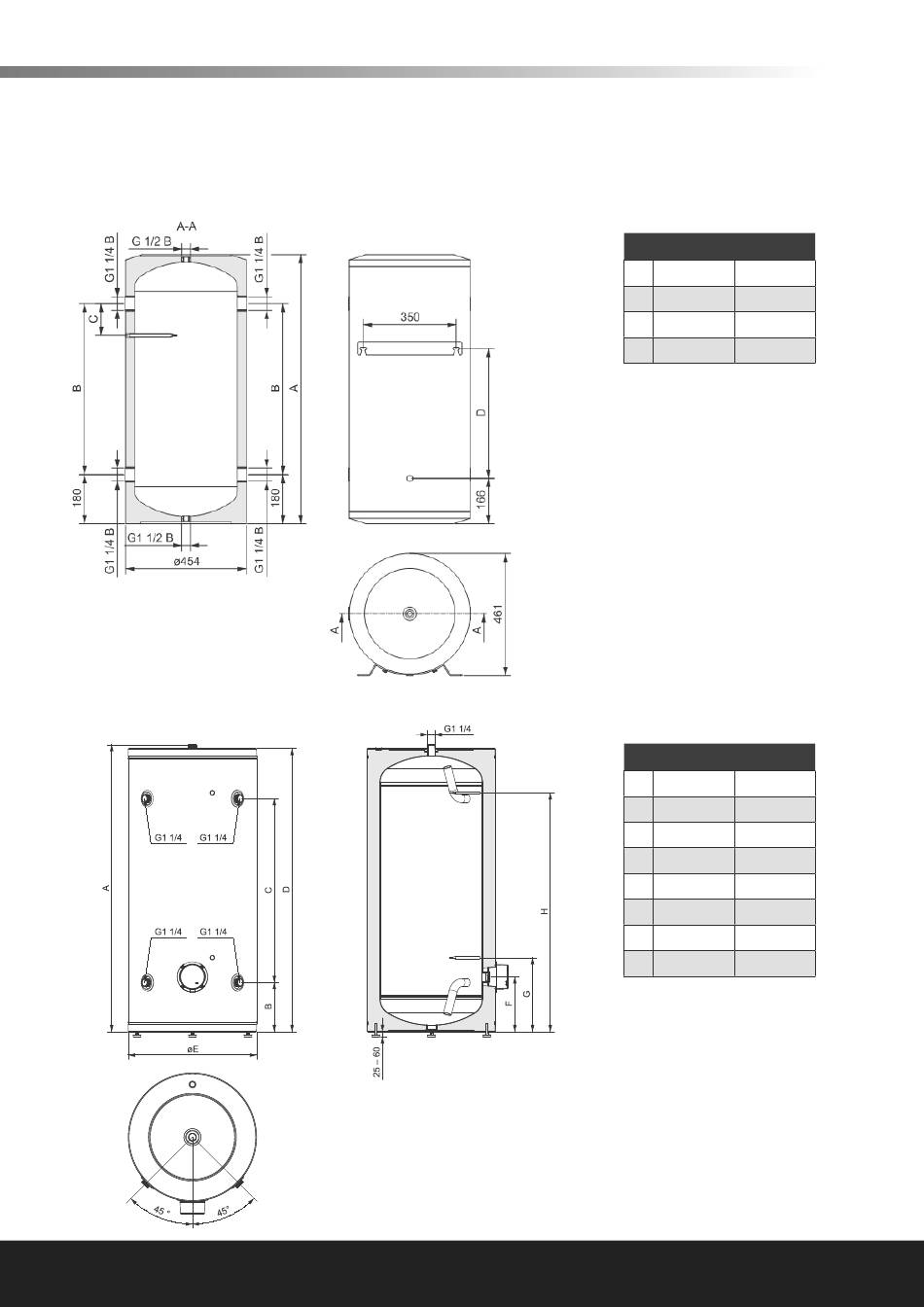

Connection and installation dimensions of the wall-mounted version of the buffer tank (mm)
Floor-standing version
Connection and installation dimensions of the floor standing version of the buffer tank (mm)
VT 50 VT 100
A 560 1005
B 200 645
C / 125
D 200 495
VT 200C VT 300C
A 1460 1498
B 228 256
C 975 960
D 1444 1478
E 570 670
F 258 286
G 358 386
H 1233 1246
