8.3

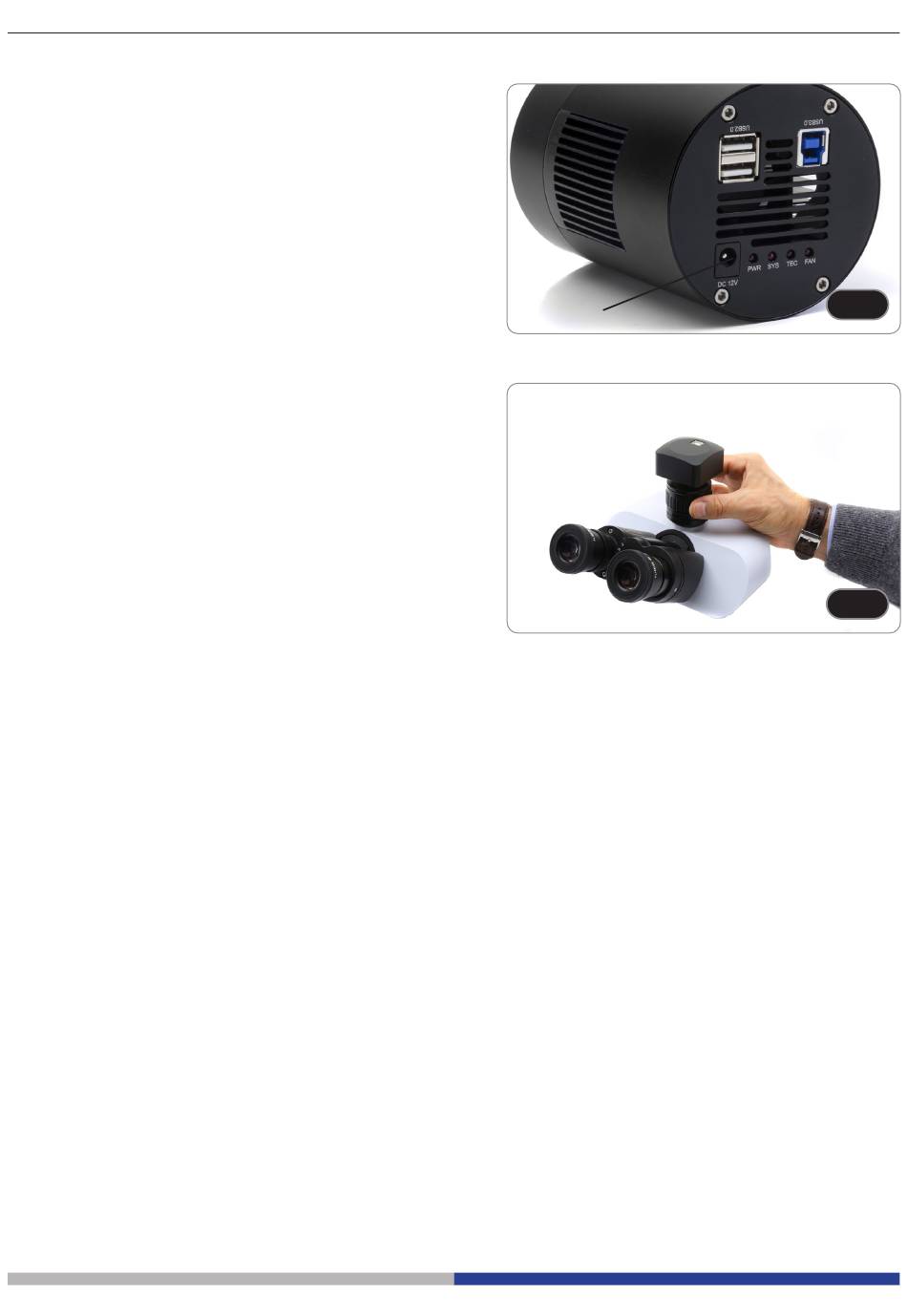

Connect the cooling power supply

Connect the supplied power adapter to the connector ① to pow-
er the camera cooling system. (Fig. 13)
8.4

Parfocality adjustment

In order to have the same focus when observing the specimen
through the eyepieces and on the screen/monitor, please check
that the microscope is properly installed and follow the instruc-
tions below.
1. Use a low power objective and focus the specimen.
2. Switch to the highest dry objective available on the micro-
scope (40x or 60x) and focus the specimen again.
3. Turn on the live-view on the camera, without changing the
focus on the microscope.
4. While observing the image on the screen/monitor, adjust the
focus by turning the knurled knob on the C-mount adapter.
(Fig. 6)
• Correct parfocality adjustment is achieved when the same
focus is reached when observing at the eyepieces and on
the screen.
