4. Hardware Installation

Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1144HMVS. Please refer your computer's reference manual whenever in doubt.
1.
Install the EX-1144HMVS to the wall or to a DIN-Rail if required.
2. Connect the USB 3.2 Gen 1 cable with the USB 3.2 Gen 1 Upstream C-Port at the EX-
1144HMVS.
3. Now connect the power connector of the optional power supply to the Terminal Block or to the DC
-Jack of the hub and insert the power plug of the power supply into a power outlet.
4. Now connect the other end from the USB 3.2 Gen 1 cable (C-Plug) to the USB C-Port at your
PC.
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved

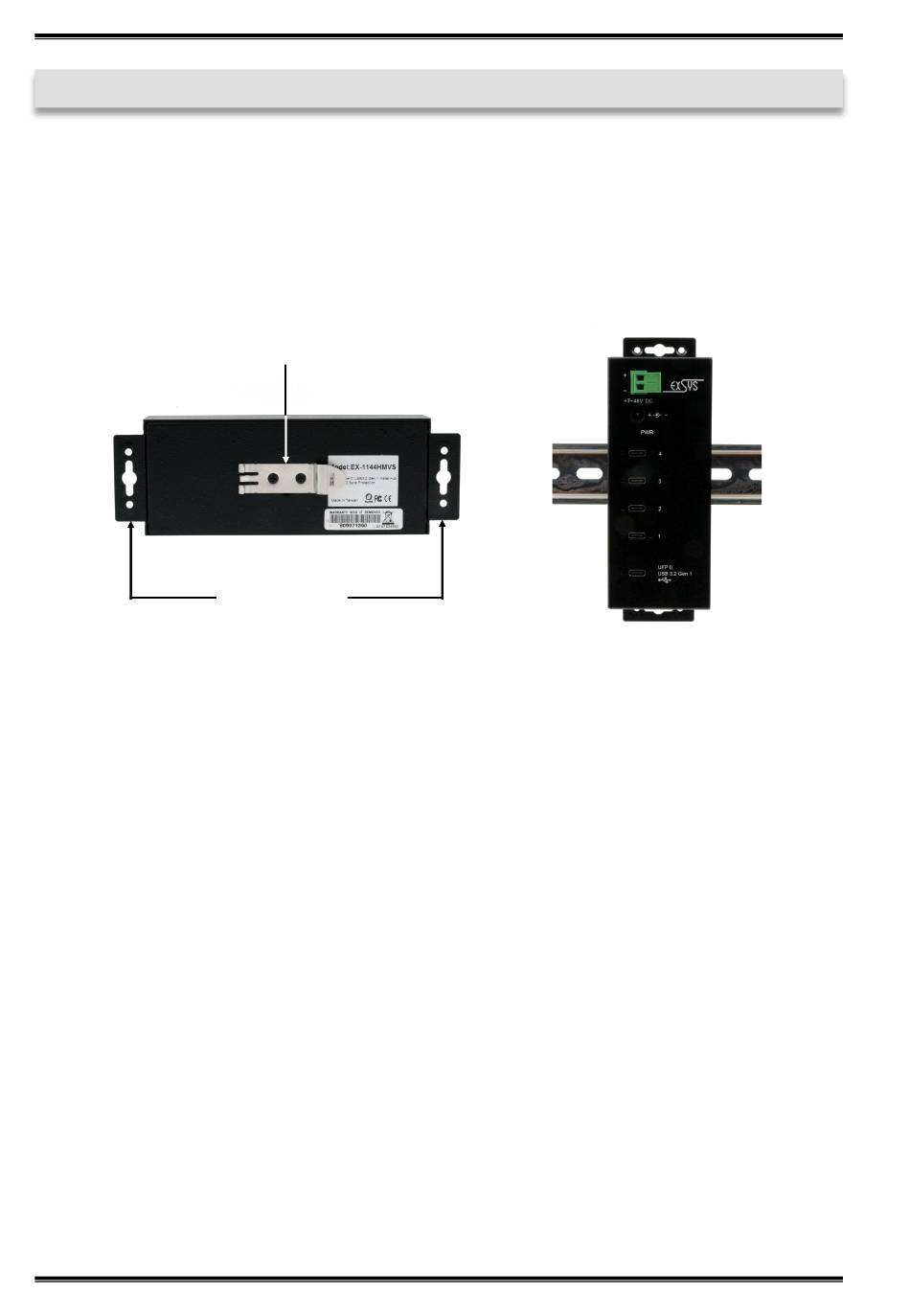

DIN-Rail Clip
Holes for
Wall Installation
12
EX-1144HMVS
Installation to
DIN-Rail
