EX-1144HMVS

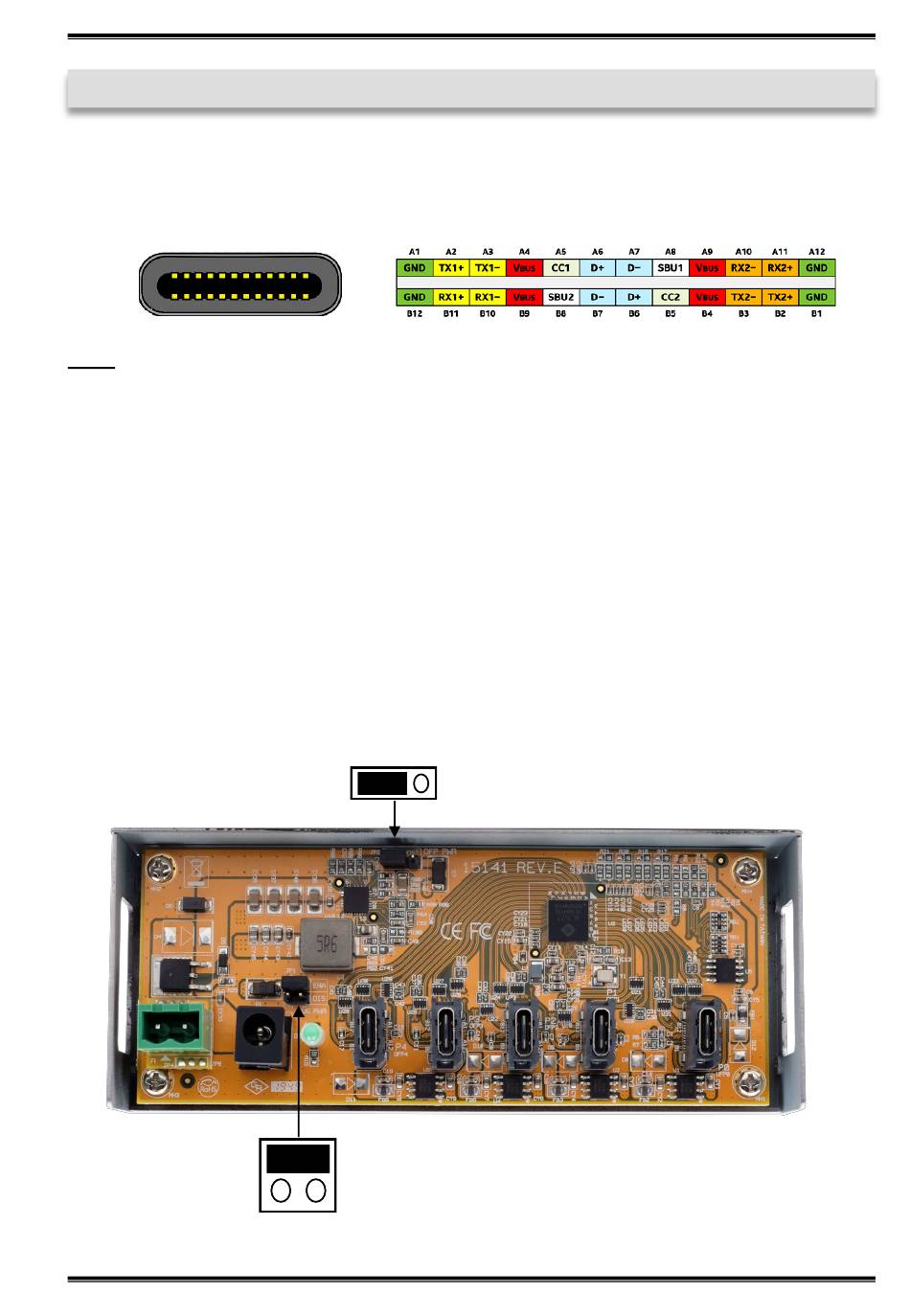

3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.2 Gen 1 C-Port:
Note!
By dual assignment of the pins, the USB Type-C plug can be plugged into the port on both
sides.

3.3 Jumper Settings

The EX-1144HMVS will be delivered with the setting USB-Bus-Power.
ity to cut the power at the data line.
sides. Then you must set the jumper JP1 from ENA (Enable) to DIS (Disable).
Attention! Only in connection with JP1 on DIS! Furthermore, you have the option to leave power
on the DFP (Downstream Facing Ports) only when the hub is connected to the host PC and the
host PC is switched on. For this you have to set the jumper JP2 to HOST. If JP2 is set to ON,
there is continuous power on the downstream ports. See the following picture.
JP1
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved
For this you open the case with the four screws on both
ON HOST
JP2
ENA
DIS
11
English
But you have the possibil-
