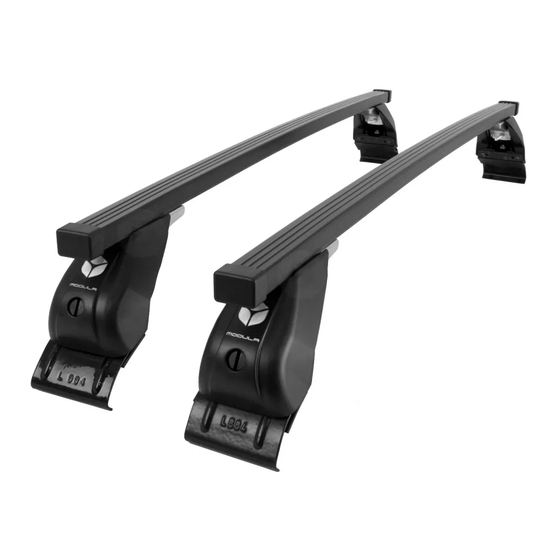

Modula MOCSKT 219 Bedienungsanleitung

AUDI A1 Sportback
MOCSRR0AC010 cm 110
MOCSRR0AL006 cm 110
2 - L1273/1 ant sx
post dx
2 - L1273/2 ant dx
post sx

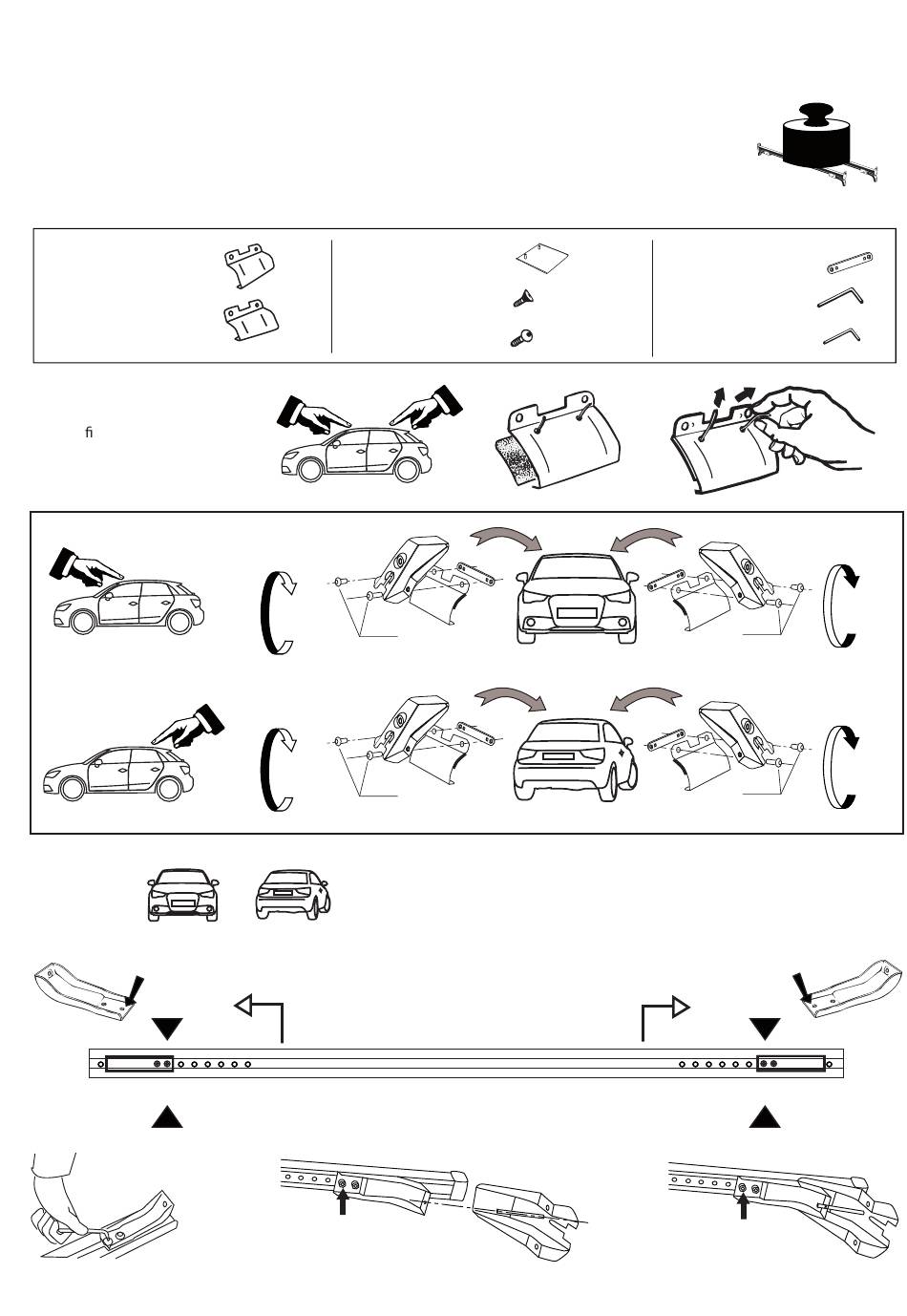

I-montare le guarnizioni
F - monter les joints
GB - t the gaskets
D - Die Dichtungen einsetzen
E- montar las juntas
! ! !
12 11 10 9 8 7 6 5 4 3 2 1
4 Nm
4 - RC1500/45
4 - RCVM6X12Q
8 - RCVM6X9Q
6 Nm
9mm
6 Nm
9mm
MOCSRR0AC010 cm 110
=
MOCSRR0AL006 cm 110
7
anteriore, avant, front,
vorne, delantera
posteriore, arriere,
rear, hinten, trasera
5 porte model 2012
12 mm
9 mm
2
L1273/
2
L1273/
MOCSKT 219
max
Kg. 75
4 - RC20200026
1 - RCBR5
1 - RCRB4
9mm
1
L1273/
9mm
1
L1273/
7
1 2 3 4 5 6 7 8 9 10 11 12
6 Nm
6 Nm
