Citroën C4 Grand Picasso
Citroën C4 Picasso
MOCSRR0AC011 cm 124
MOCSRR0AL007 cm 124
componenti:
2 - L1144/2
2 - L1144/3
2 - RC1500/60
2 - RC1500/90
8 - RCVM6X9Q
4 - RC20200026
1 - RCBR5
! ! !
4 Nm

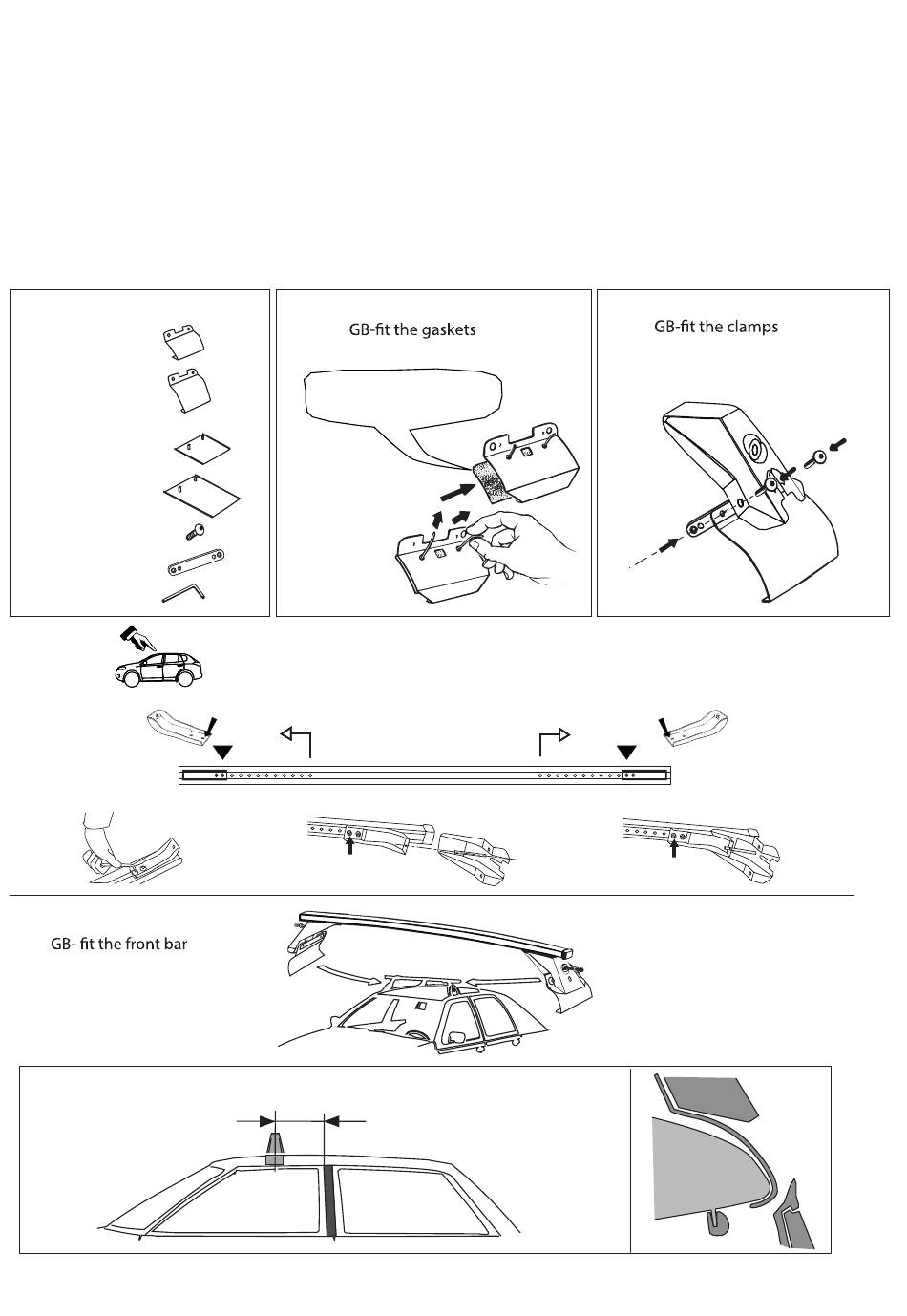

I-montare la barra anteriore
E- ajustar la barra frontal
I-montare le guarnizioni
E- montar las juntas
Anteriore, avant, front = 60
Posteriore, arrière, rear = 90
60
90
MOCSRR0AC011 cm 124
MOCSRR0AL007 cm 124
11
anteriore, avant, front,
vorne, delantera
12 11 10 9 8 7 6 5 4 3 2 1
L1144/2
cm 18
L1144/2
2006
2007
11
1 2 3 4 5 6 7 8 9 10 11 12
L1144/2
MOCSKT 066
I-montare gli attacchi
E- ajustar las pletinas
I-sez. tetto vettura
GB-roof section
E- seccion del
techo
