Installation

Desktop Installation

Rack Installation

To install the device in an EIA standard-sized, 19-inch rack, follow the instructions
described below.
1. Check the efficiency of the grounding system and the stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied
screws, as illustrated in the following figure.
3. After the brackets attached to the device, use suitable screws (not provided) to
secure the brackets to the rack, as illustrated in the following figure.

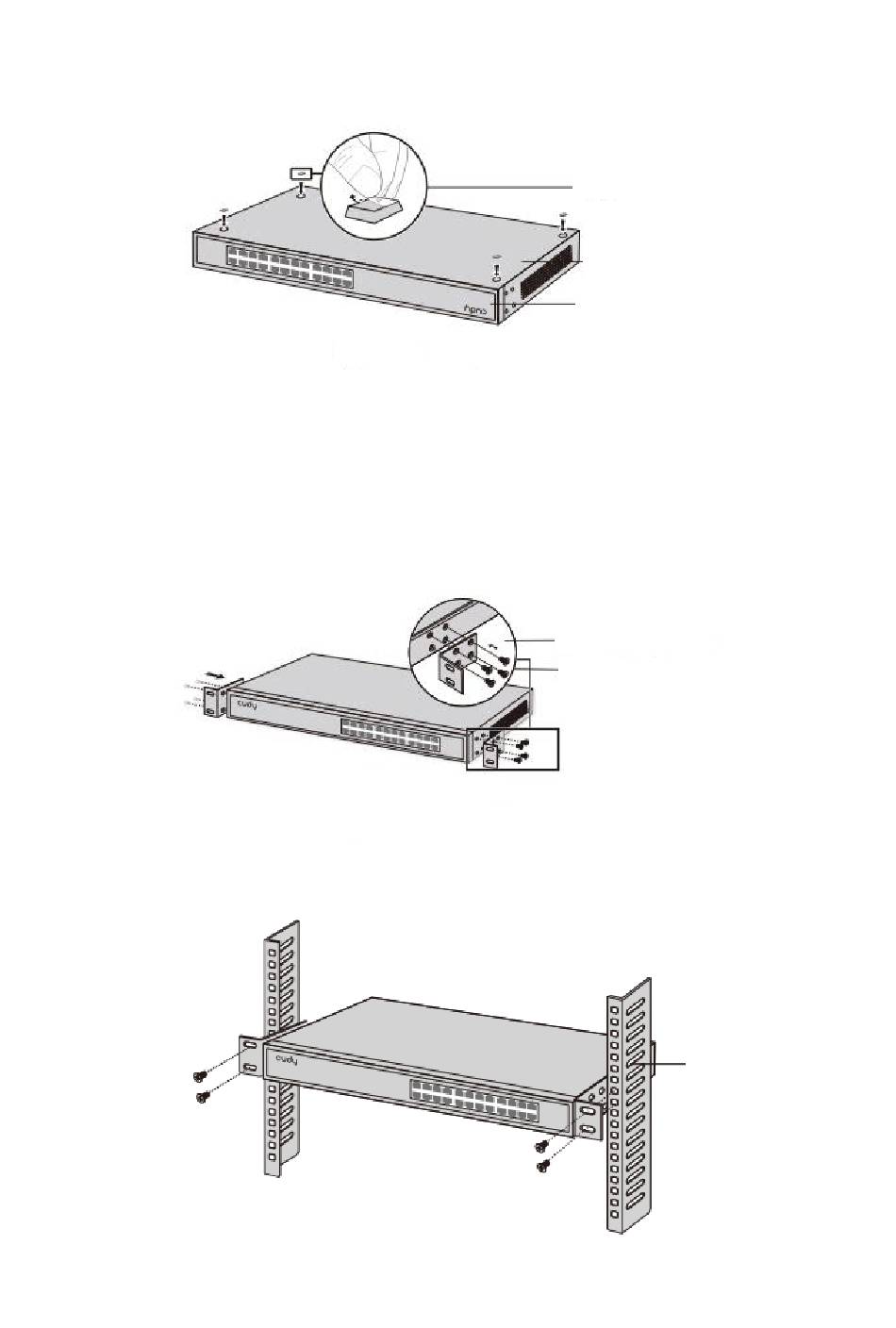

Figure 3-1 Desktop Installation
Figure 3-2 Bracket Installation
Rack Installation
Figure 3-3
5
Feet
Bottom of the Device
Notch
Rack mounting Bracket
Screw
Rack
