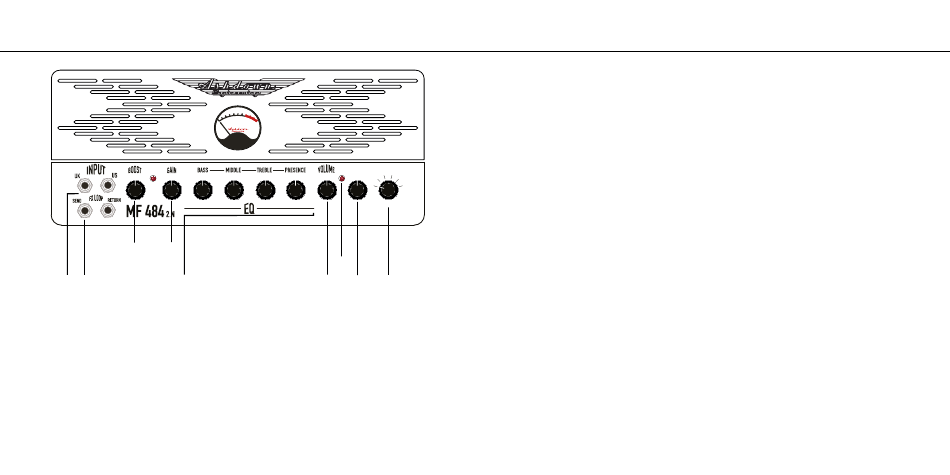

THE VU METER
The VU meter provided on the front panel gives you a visual display of the output of
the amp as its being played. This can be used to ensure clean headroom or to dial in
something a little more aggressive....
1. INSTRUMENT INPUT
There are two instrument inputs, UK has a more compressed and tight classic British
tone. The US input has great headroom producing a cleaner tone.
2. EFFECTS SEND/RETURN
A tube driven and recovered effects loop is provided, this is situated between the pre-
amplifier and power amplifier, ahead of the master volume. The signal level is suitable
for driving a wide range of effects pedals, the level present being entirely dependent on
the level of pre-gain being used. Only effects should be used in this loop.
USER GUIDE
VU
OUTPUT
CLIP
LEVEL 3 4
2 5
1 6
PRE-SET
DYNAMIC
CABINET /SPEAKER
SIMULATOR
7.
6. 8. 9.
MF 484 2.N
3. BOOST
An overdrive boost that can be turned on and off with the FS-1 Footswitch (sold
seperately), default setting is ON so you can turn up the overdrive volume without using
a footswitch and dial in some growling overdriven tones.
4. GAIN
Use the gain setting to determine how clean or dirty your sound is regardless of the
master volume setting.
5. 4 BAND EQ
This consists of Treble, Middle and Bass controls with a Presence, which operates as a
high-frequency shelving boost.
6. VOLUME
The volume control adjusts the overall level of the amplifier. Adjust this for your
preferred overall stage playing volume.
7. CLIP
This is to indicate when clipping occurs on the output signal of the Two notes DynIR
output to maintain a clear representation of the DynIR.
8. OUTPUT LEVEL
This is to set the output volume of the Two notes DynIR output DI on the rear of the amp.
9. PRE-SET
Select from 6 available on board official Ashdown Two notes DynIR impulse response
cabinets designed by us for you. See table *T.1 for list.

10. MAINS INPUT

The amplifier is fitted with a standard IEC connector and supplied IEC lead correct
for the country in which you reside. The Pre-set input VOLTAGE is shown on the rear
panel together with fuse ratings.
