ENGLISH

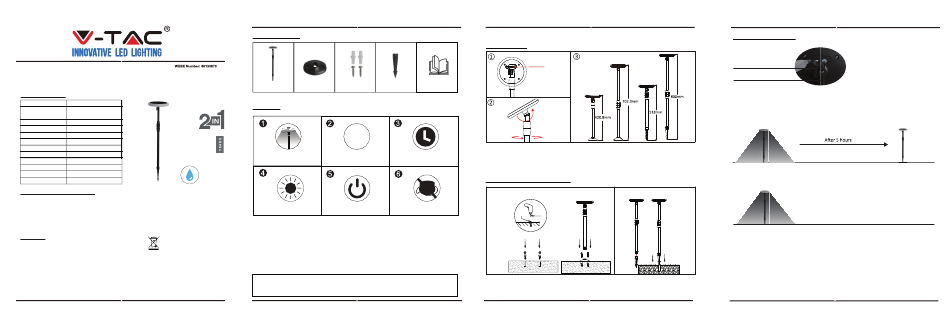

INSTALLATION INSTRUCTION
SOLAR GARDEN LIGHT
TECHNICAL DATA:
Model VT-943
1.4W, DC: 5V,
Solar Panel
Mono-crystalline silicon
Wa�s
3W
Lumens 260LM
Beam Angle
360°
Li-Ion Battery
523450/1000mAh/3.7V/3.7Wh
Working Temperature
-15°C ~ 50°C
Dimension
ø148*800mm
Housing Material
ABS+PC, V0 fireproof, An�-UV
LED Chip Type
SMD 2835
Woking Time
30-36 Hours
Charging Time
4-5 Hours Strong Sunshine
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future reference.
If you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best. The warranty is valid for
2 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. This product is warranted for
manufacturing defects only.
WARNING
This marking indicates that this
1. Installation must be performed by a qualified electrician product should not be disposed
of with other household wastes.
2. Keep away from the fire.
3. Don't immerse in the water
4. This is a solar powered lamp, please install it in a location where can get efficient sunlight.
5. Please note the lighting time depends on sunshine duration & weather & working mode.
6. Built-in intelligent system is with over-charge, over-discharge and over-voltage protection, safe
and durable.
7. When the lamp is turned off, it can still get solar charging.
8. Non-professionals please do not disassemble the lamp.
9. Please do not dispose the battery with household garbage to avoid explosion.
PARTS INCLUDED
Screws (2Pcs)
Solar Light (1Pc) Base (1Pc)
Expansion Screws (2Pcs)
FEATURES
2
2
*
WARRANTY 360° Soft Lighting Two Lighting Modes
IP65
RATING
Solar Powered
Auto On/Off
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
ENGLISH
Note: Only one installation mode can be selected, it can not be changed to the other once installed.
INSTALLATION
Open the ON-OFF
button cover plate here
Spike (1Pc) User Manual (1Pc)
180° Adjustable
360° Adjustable
1. Prepare lamp, accessories and tools well firstly.
2. Open the ON-OFF button cover plate with the screwdriver, press the buttons to turn on the
Long Lighting Time lamp and select desired working mode, then lock the ON-OFF button cover plate. (see picture 1)
3. Adjust the solar panel angle properly, make sure it can get efficient solar charging. (see picture 2)
4. Adjust the post height as desired. (see picture 3)
TWO OPTIONAL INSTALLATION
A: Built-on Concrete Ground
Hole Diameter ø6mm
Cordless to Install
Hole Depth: 40mm
INSTALLATION OPTION A: BUILT-ON CONCRETE GROUND
Use screws to fix the base on the ground, then fix the lamp onto the base.
NSTALLATION OPTION B: BUILT-IN SOFT LAWN
Insert the lamp with spike into the lawn.
ENGLISH
TWO WORKING MODES
Func�on Bu�on
ON-OFF Bu�on
Mode A
Lamp will automatically lights up at night and keep 100% brightness for 5 hours, then off.
The lamp will adjust brightness according to the dynamic capacity of the battery.
Mode B
Lamp will automatically lights up at night and keep 100% brightness till dawn or power's off.
The lamp will adjust brightness according to the dynamic capacity of the battery.
B: Built-in Soft Lawn
ENGLISH
Please press the buttons to
adjust working mode:
1. Press ON-OFF Button 1st time, the
lamp is turned on and work in Mode
A, which is default working mode.
2. Then press the Function Button,
the lamp enter Mode B.
3. Press the ON-OFF Button again, the
lamp turns off.
