1. Designated use
The FRIAMAT barcode scanner has been designed for the rough use on cons-
truction sites and serves exclusively for reading barcodes 2/5 interleaved and
Code 128. The FRIAMAT barcode scanner may be used on FRIAMAT fusion
units only.
WARNING!
Observe the operating instructions of your FRIAMAT fusion units.
2. Installation
WARNING!
The FRIAMAT fusion unit has to be switched off before installing
the FRIAMAT barcode scanner.

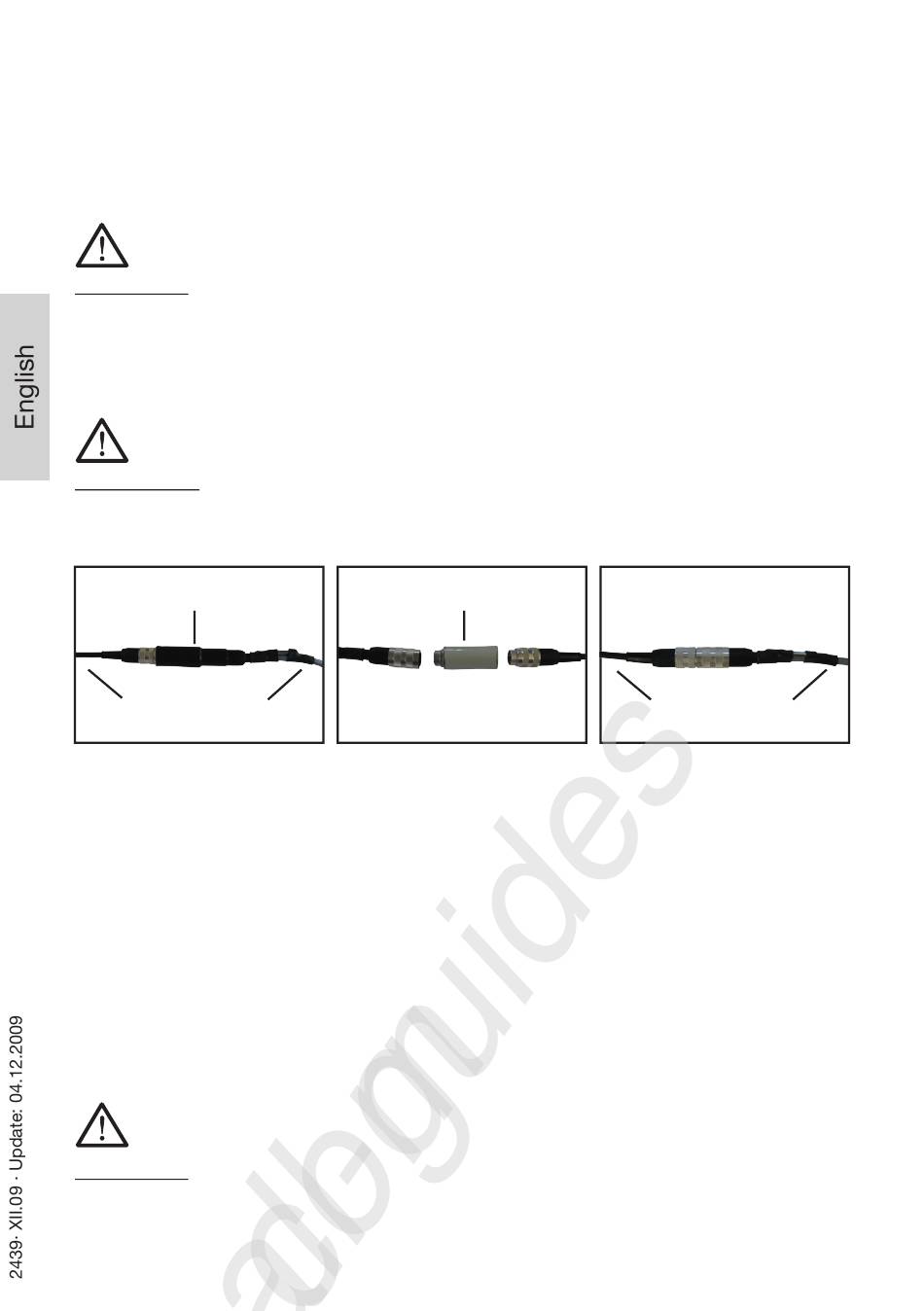

heat shrink tube
reader wand FRIAMAT
Figure 1
Open the reader wand bag at the pushbuttons. Remove the reader wand bag
und assemble the scanner bag. Carefully remove the heat shrink tube (figure 1)
from the reader wand adapter and the connectors. The reader wand adapter
has to be unscrewed from both connectors (reader wand cable and FRIAMAT
data cable) by turning counter-clockwise (figure 2).
Connect the FRIAMAT barcode scanner (without reader wand adapter) with
the connector of the FRIAMAT data cable (figure 3). Tighten the connection
"hand-tight" without tooling. Close the scanner bag at the pushbuttons.
WARNING!
Do not operate the FRIAMAT barcode scanner with reader wand adapter.
6
reader wand adapter
Figure 2
scanner FRIAMAT
Figure 3
