TECHNICAL DATA
All manuals and user guides at all-guides.com
•
Voltage 8 - 30V direct or alternating
•
Use: maximum 150mA
•
Number of codes: 100, of which 1 is an administrator code
•
Length of code: optional, from 4 to 16 characters
•
2 separate relay exits
•
256-bit encrypted connection to the relay unit
•
Capacitive illuminated keys
•
Installation into a door wing
QUICKGUIDE ............................................................................ 53
INDEX
Keypad:
2. DESCRIPTION AND CORRECT USE OF KEYPAD
The keypad has 10 digits and two function keys:
which is used for adding, and
for code deleting and confirming or for unlocking. The keypad is
illuminated with blue backlight. The function keys are illuminat-
ed with green backlight when a correct code has been inserted
or when a suitable function is being activated. Red backlight is
activated when the code is incorrect or when a suitable func-
tion is activated. Under strong light the illumination of the key-
pad is poorly visible and the keys will appear white. Should the
programming of the keypad be made under strong light, it is
recommended that you shade the keypad in order to better see
the illumination and the light signals. When any of the keys is
11
being pressed, you will hear a short beep, which signals that the
key has been activated.
The keys are capacitive, and each has a sensor underneath,
which detects a finger that has been pressed over. In order to
activate a key, you have to cover the entire digit with your fin-
ger, by touching it lightly and quickly. If the finger approaches
the key slowly, it might not activate the key.
13
100 different codes can be stored in the keypad. Each code
can be of arbitrary length: at least 4 digits and not more than
16 digits. The first code that is set is the administrator's code.

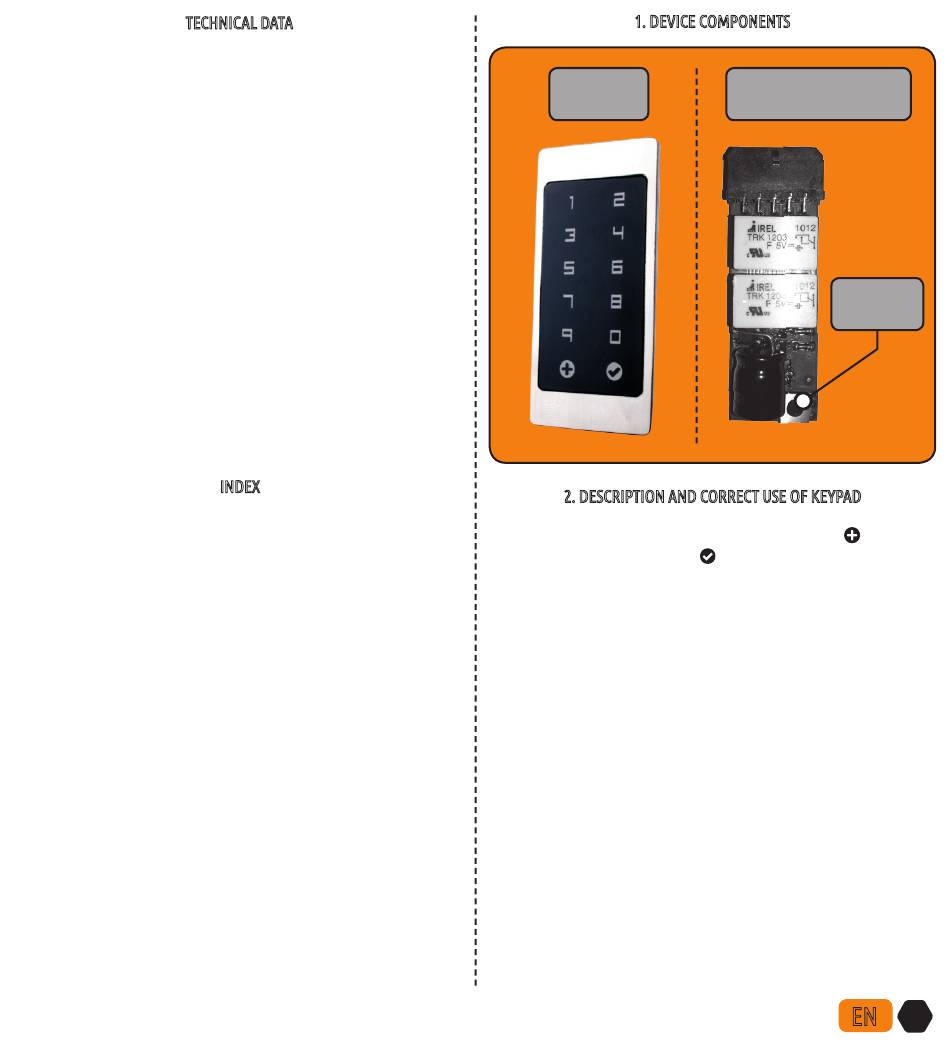

1. DEVICE COMPONENTS
Relay unit with
the reset button:
(the checkmark), which is used
Factory
reset
(the plus),
EN
9
