USE AND MAINTENANCE

User instructions of the Touch Control
ESO 905 F
Fig. 3
8 9 8
7
6
5
Fig. 2
8 9 8
7
6
5

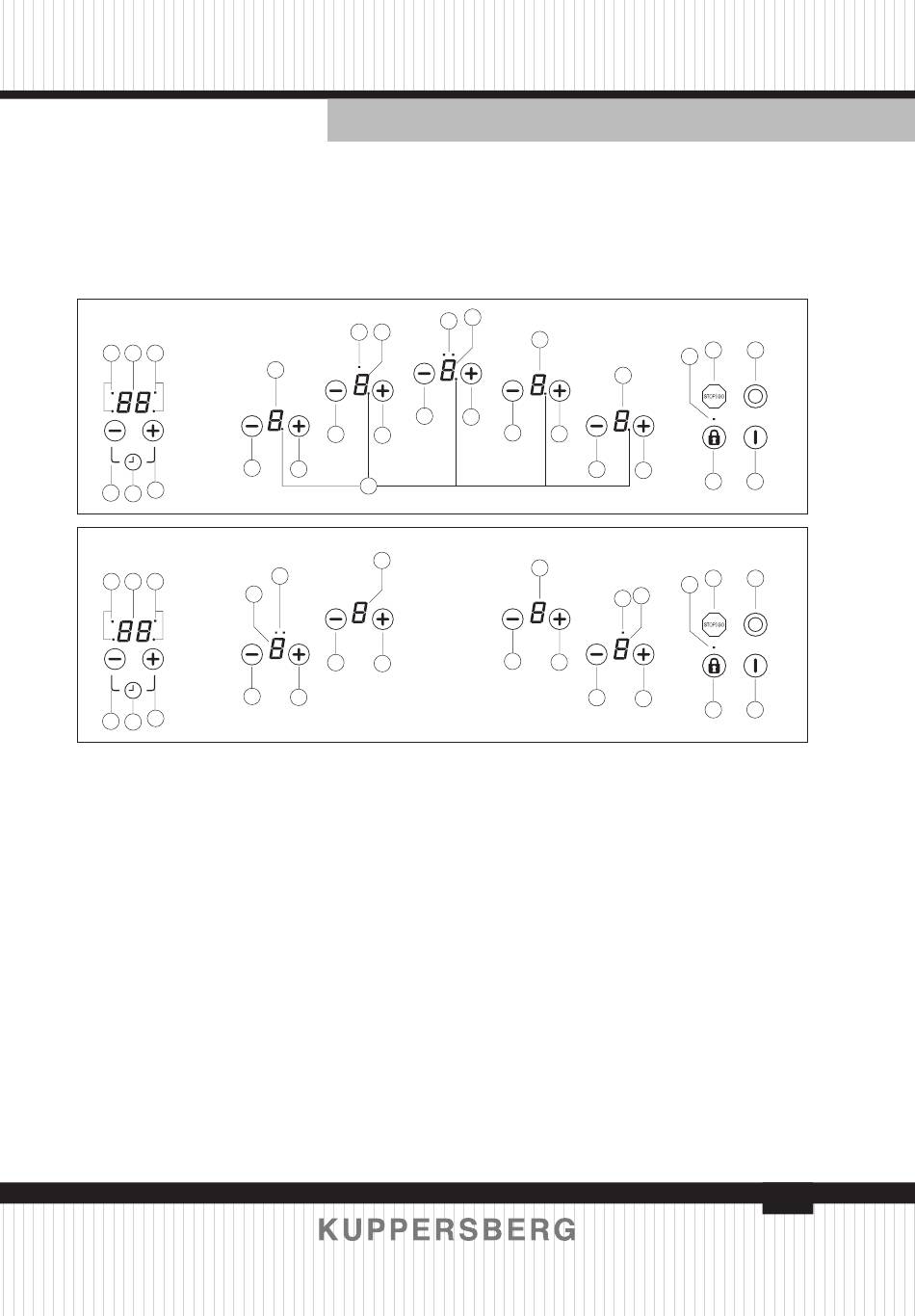

HANDLING ELEMENTS (fig. 2-3)
To reconnect the appliance, switch
it off by pressing the On/Off button (1)
and then switch it on again.
Keep the control panel of the heating
zones clean and dry at all times.
In case of operational problems or
incidents not mentioned in this manual,
switch off the appliance and contact the
Kuppersberg technical service.
1. On/Off touch button.
2. Lock touch button.
3. Increase power touch button.
4. Decrease" power touch button.
14 10
10
4
3
4
3
16
10
15
10
4
3
4
3
15 10
10
4
3
4
3
4
10
4
3
4
5. Timer/clock icon.
6. Decrease time touch button.
7. Increase" time touch button.
8. Timer pilot display.
9. Clock display.
10. Power level display.
11. Lock activated display.
12. Stop function touch button.
13. Double/triple burner selection
button.
14. Hot plate double burner on
display.
15. Hot plate triple burner on display.
16. Hot plate pilot display (depending
on model)
