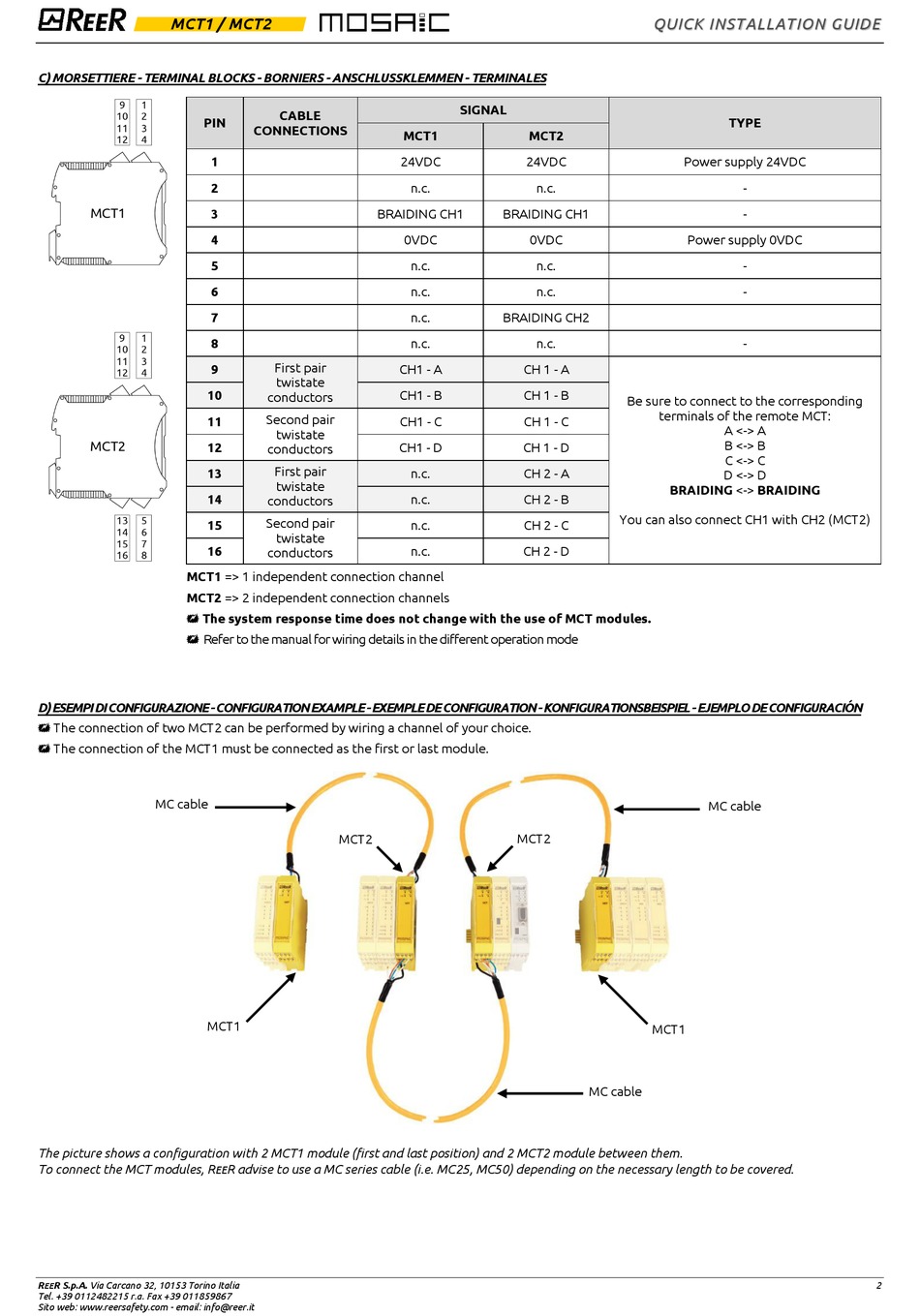

MCT1 / MCT2
C) MORSETTIERE - TERMINAL BLOCKS - BORNIERS - ANSCHLUSSKLEMMEN - TERMINALES
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
MCT1 => 1 independent connection channel
MCT2 => 2 independent connection channels
The system response time does not change with the use of MCT modules.
Refer to the manual for wiring details in the different operation mode
D) ESEMPI DI CONFIGURAZIONE - CONFIGURATION EXAMPLE - EXEMPLE DE CONFIGURATION - KONFIGURATIONSBEISPIEL - EJEMPLO DE CONFIGURACIÓN
The connection of two MCT2 can be performed by wiring a channel of your choice.
The connection of the MCT1 must be connected as the first or last module.
MC cable
MCT1
The picture shows a configuration with 2 MCT1 module (first and last position) and 2 MCT2 module between them.
To connect the MCT modules, R
R
R S.p.A. Via Carcano 32, 10153 Torino Italia
EE
Tel. +39 0112482215 r.a. Fax +39 011859867
Sito web: www.reersafety.com - email: info@reer.it
CABLE
CONNECTIONS
BRAIDING CH1
First pair
twistate
conductors
Second pair
twistate
conductors
First pair
twistate
conductors
Second pair
twistate
conductors
MCT2
R advise to use a MC series cable (i.e. MC25, MC50) depending on the necessary length to be covered.
EE
SIGNAL
MCT1
MCT2
24VDC
24VDC
n.c.
n.c.
BRAIDING CH1
0VDC
0VDC
n.c.
n.c.
n.c.
n.c.
n.c.
BRAIDING CH2
n.c.
n.c.
CH1 - A
CH 1 - A
CH1 - B
CH 1 - B
CH1 - C
CH 1 - C
CH1 - D
CH 1 - D
n.c.
CH 2 - A
n.c.
CH 2 - B
n.c.
CH 2 - C
n.c.
CH 2 - D
MCT2
QUICK INSTALLATION GUIDE
TYPE
Power supply 24VDC
-
-
Power supply 0VDC
-
-
-
Be sure to connect to the corresponding
terminals of the remote MCT:
A <-> A
B <-> B
C <-> C
D <-> D
BRAIDING <-> BRAIDING
You can also connect CH1 with CH2 (MCT2)
MC cable
MCT1
MC cable
2
