5.1.3 Drive Unit

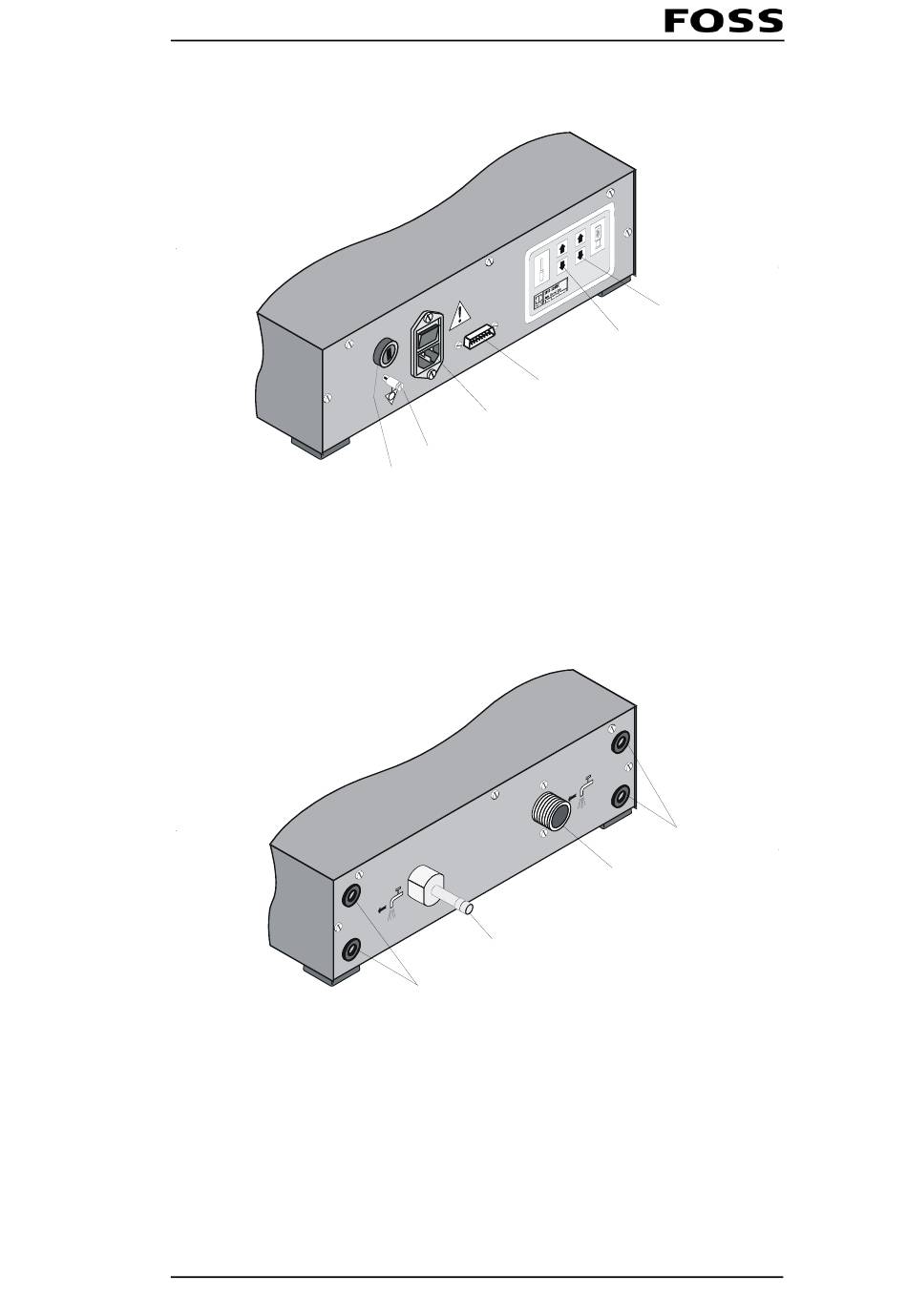

Fig. 5:7 Front of Drive Unit
1 Fuse
2 Voltage equalizer connection
3 Mains inlet with power
Fig. 5:8 Rear of Drive Unit
1 Wires from extraction unit
2 Cooling water outlet to Extraction Unit
3 Cooling water inlet
User Manual 1000 7414 / Rev. 4
4
3
2
1
4 Contact for communication cable
5 Up and down key to control sample rods
6 Up and down key to control condensors
2
1
6
5
2050028c
1
3
2050029c
5:5
