Aufbauanleitung / assembly instructions mod. 4343
12x
7x
4,5 x 40
4,5 x 22
Unterbaupaket
Unterbaupaket

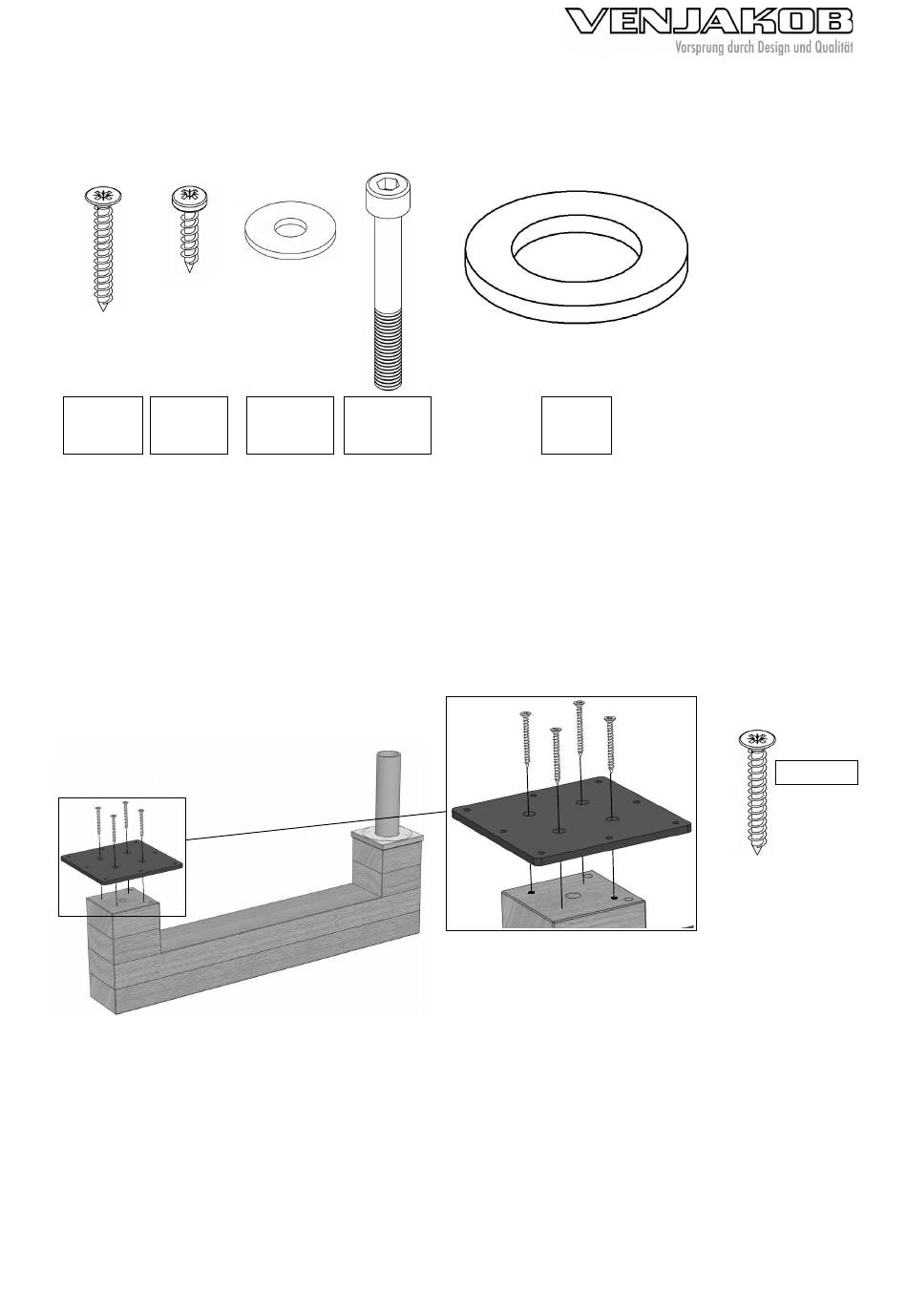

1.Montagematerial.
1. Fitting material.
2. Die beiden Markierungsbohrungen beim Anschrauben der Metall-Halteplatte benutzen.
2. Use the two marking holes when screwing on the storage plate.
4343
1x
1x
10,5 x 30
M10 x 65
Unterbaupaket
Unterbaupaket
1x
44 x 75
Unterbaupaket
1 / 4
4x
4,5 x 40
Änderungsdatum: 29.04.22

Werbung

loading

Inhaltszusammenfassung für Venjakob 4343

  • Seite 1 Aufbauanleitung / assembly instructions mod. 4343 4,5 x 40 4,5 x 22 10,5 x 30 M10 x 65 44 x 75 Unterbaupaket Unterbaupaket Unterbaupaket Unterbaupaket Unterbaupaket 1.Montagematerial. 1. Fitting material. 4,5 x 40 2. Die beiden Markierungsbohrungen beim Anschrauben der Metall-Halteplatte benutzen.
  • Seite 2 3. Use the four marking holes when screwing on the metal retaining plate. 4,5 x 40 4. Die Markierungsbohrungen für die Verschraubung der Bodenplatte nutzen. 4. Use the marking boreholes to screw on the base plate. 2 / 4 4343 Änderungsdatum: 29.04.22...
  • Seite 3 5. Die Glasplatte auf einen gepolsterten Untergrund legen und parallel zu dem Holzarm verschrauben. 5. Place the glass plate on a padded surface and screw it parallel to the wooden arm. 6. Den Holzarm aufstecken. 6. Attach the wooden arm. 3 / 4 4343 Änderungsdatum: 29.04.22...
  • Seite 4 7. Fertiger Couchtisch in Grundposition. 7. Turn the coffee table. 8. Ausgeschwenkt. 8. Swung out. 4 / 4 4343 Änderungsdatum: 29.04.22...
