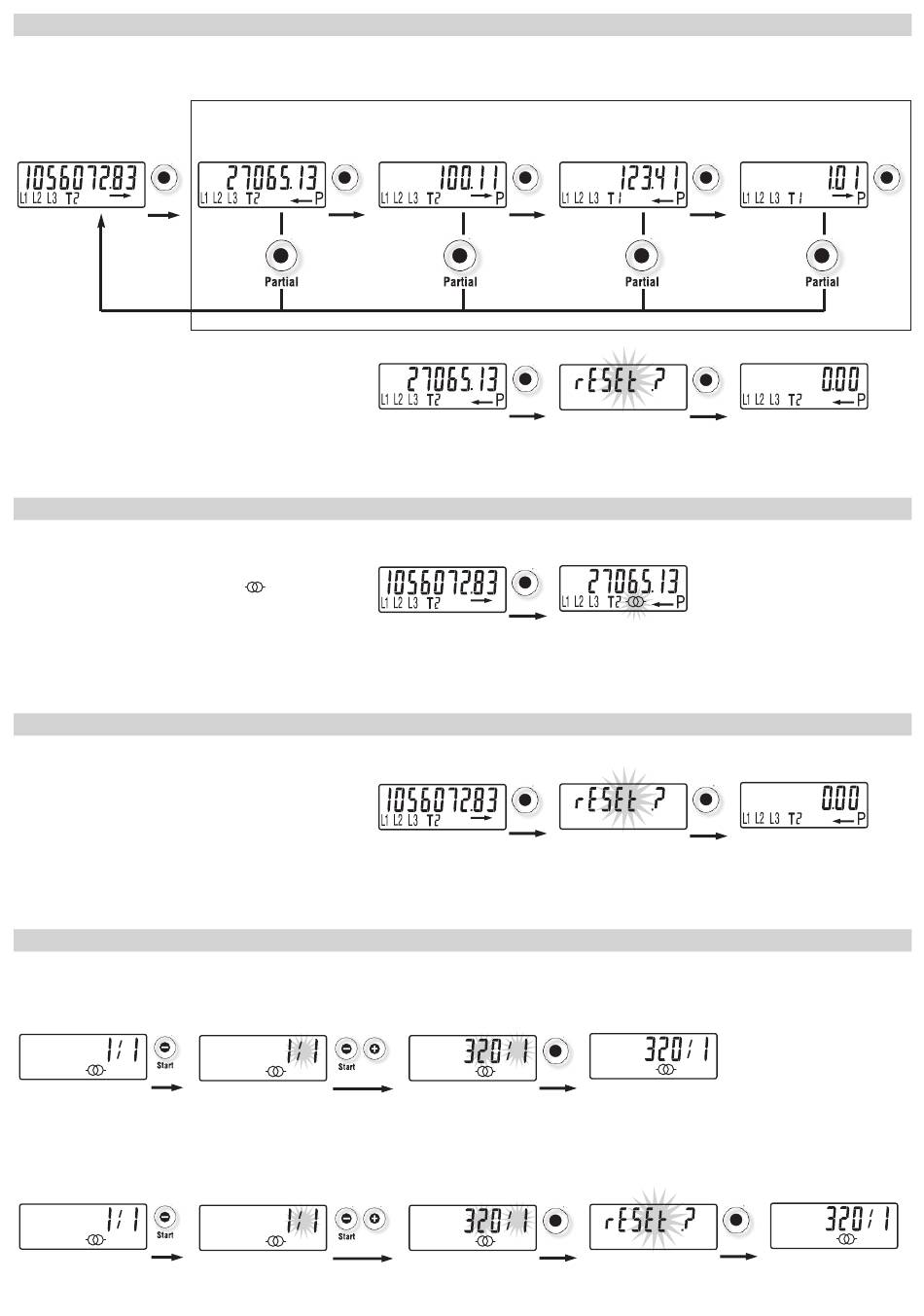

In any page of the "Main Menu", a pressure of the "Partial key" allows to enter in the "Partial Menu" where partial active energy counters are readable in the main, second, third and
fourth pages (i.e. for monthly energy consumption).. These counters are not saved when the device is switched off.
By pushing the partial key in any of the fourth pages, you go back to the "Main Menu".
Main Menu:
Partial
A pressure of 4 sec. of the "Menu key", in every page of the
"Partial Counters" allows to enter in the zeroing menu of the
"Partial Counters", and on the display appears "rESET".
The key must be released. To do the reset press it again for 4 seconds.
After 4 sec. from the button release if the "Command Reset" is not
done, it will go back to the default visualization without the reset.
On MID calibrated meters it's possible to show on display all energy
registers measured at CT output (also via internal communication
interface). For this, in any page of the "Main Menu", the "Menu key"
must be pushed for 20 second. In this mode
meter show the same page of the "Main Menu" but in the first, second,
third and fourth pages are shown the energy measured at the secondary
winding of the CT. After a minute of "Menu key" inactivity, the meter
shows and communicates again the CT input energies.
A pressure of 20 sec. of the "Menu key", on every page of the main menu,
allows to enter in the zeroing menu of the main registers, and on the display
appears "rESET". The key must be released. To do the reset press it again
for 4 sec., afterwards it will go back to the default visualization with all
registers reset.
After 4 sec. from the button release if the "Command Reset" is not done,
it will go back to the default visualization without the reset.
This feature is present only in the models without MID-certification.
For the MID certified meters in the CT Ratio page by kept pushed for 4 sec. the "Start (-) key" the value of the primary winding blink on the display.
Push "Start (-) key" or "(+)" to change the value. Push the "Menu key" for 4 sec. to confirm, otherwise within 5 seconds the modification will be lost.
Main Menu:
> 4 sec.
For the not MID certified meters to confirm the CT ratio you must reset the energy counters.
Main Menu:
> 4 sec.
Partial Menu:
Menu
Secondary Winding Register Menu
appears and the
"
"
Partial Counter Menu
Menu
Menu
> 4 sec.
Main Menu:
Menu
> 20 sec.
Energy Reset
Main Menu:
Menu
> 20 sec.
Primary CT Current Setting
Menu
> 4 sec.
> 5 sec.
Menu
> 4 sec.
- 3 / 12 -
"ECS3-1B - BASIC"
Menu
Menu
> 4 sec.
Secondary winding register menu:
Menu
> 4 sec.
Main Menu:
> 5 sec.
Menu
Menu
Main Menu:
Main Menu:
