CIRCUS DIVISION TP700 Technische Bedienungsanleitung Seite 9

1. STAND
for mount / dismount
2. LEGS
3. APEX PLATE
w/hinge pins & spring cotter pins
4. DYNEEMA STATIC ROPE (15m)
5. WHEELS WITH AXLE
6. FEET
w/hinge pins & spring cotter pins
WLL(Working Load Limit): 400 daN (approx. 400 Kg)
WARNING!
The workload of a system
and its breaking strength
are determined by the
weakest link in the chain.

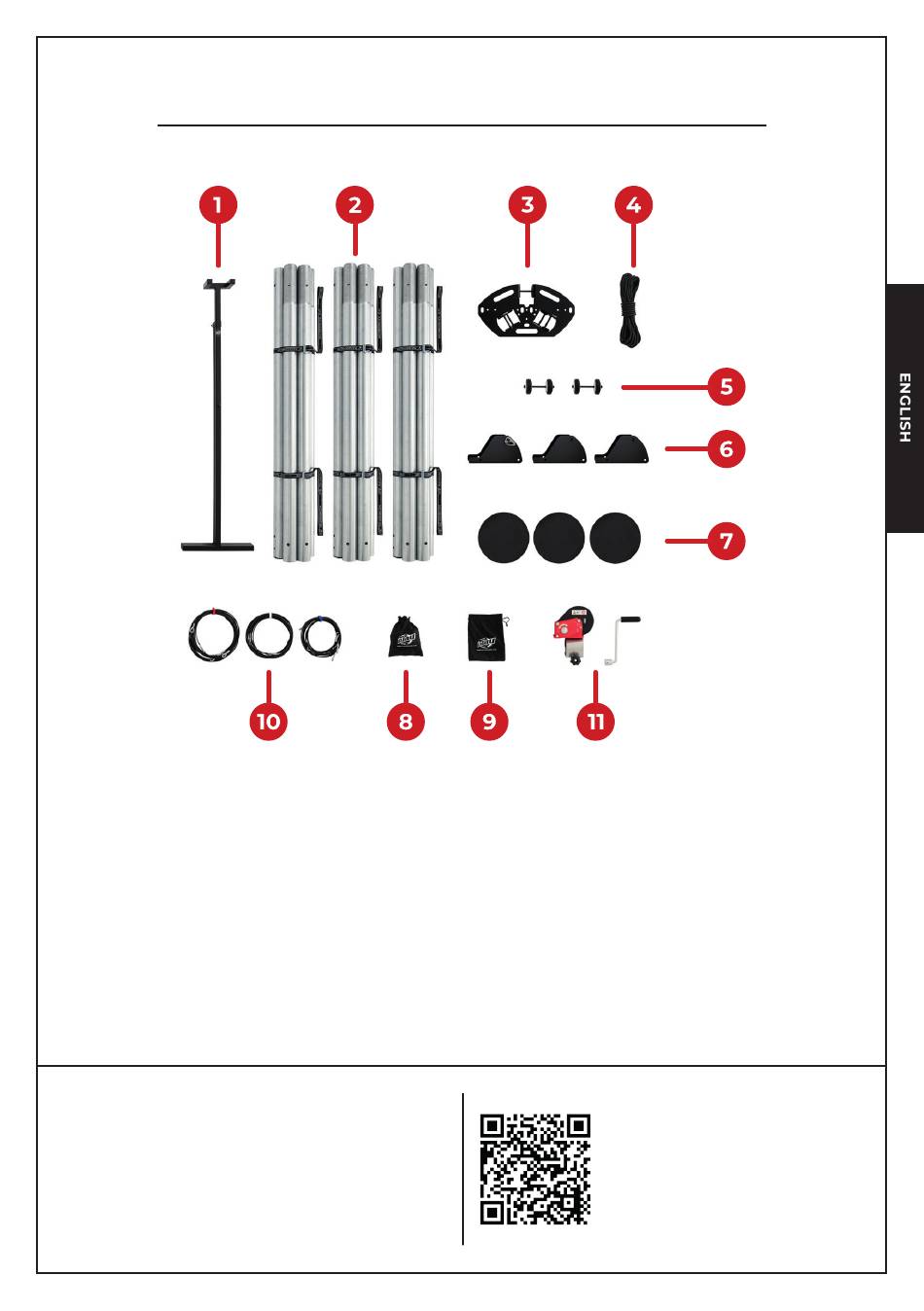

CHECK LIST - ASSEMBLY INSTRUCTIONS
7. NON-SLIP MATS
8. BAG WITH ANCHORING DEVICES*
9. COUNTERWEIGHT BAG
10. CABLE
3m - 4m - 5m sets
11. MANUAL WINCH
with automatic brake
*BAG CONTENT:
- 2x autolocking carabiners
- 3x screw locking carabiner
- 1x rope clamp
- 1x 80 cm Polyester loop
- 6x Quick Link #8
- 1x pulley
- 2x 30 cm Polyester loop for rigging
props to the plate
Scan the QR Code to see
the TP700 assembly instructions
