ASSEMBLY INSTRUCTIONS

ASSEMBLY OF BLOWER PIPES

CAUTION : Before performing any work on the blower, always stop the
engine and pull the spark plug connectors off the spark
plug.
Always wear protective gloves!
CAUTION : Start the blower only after having assembled it completely.

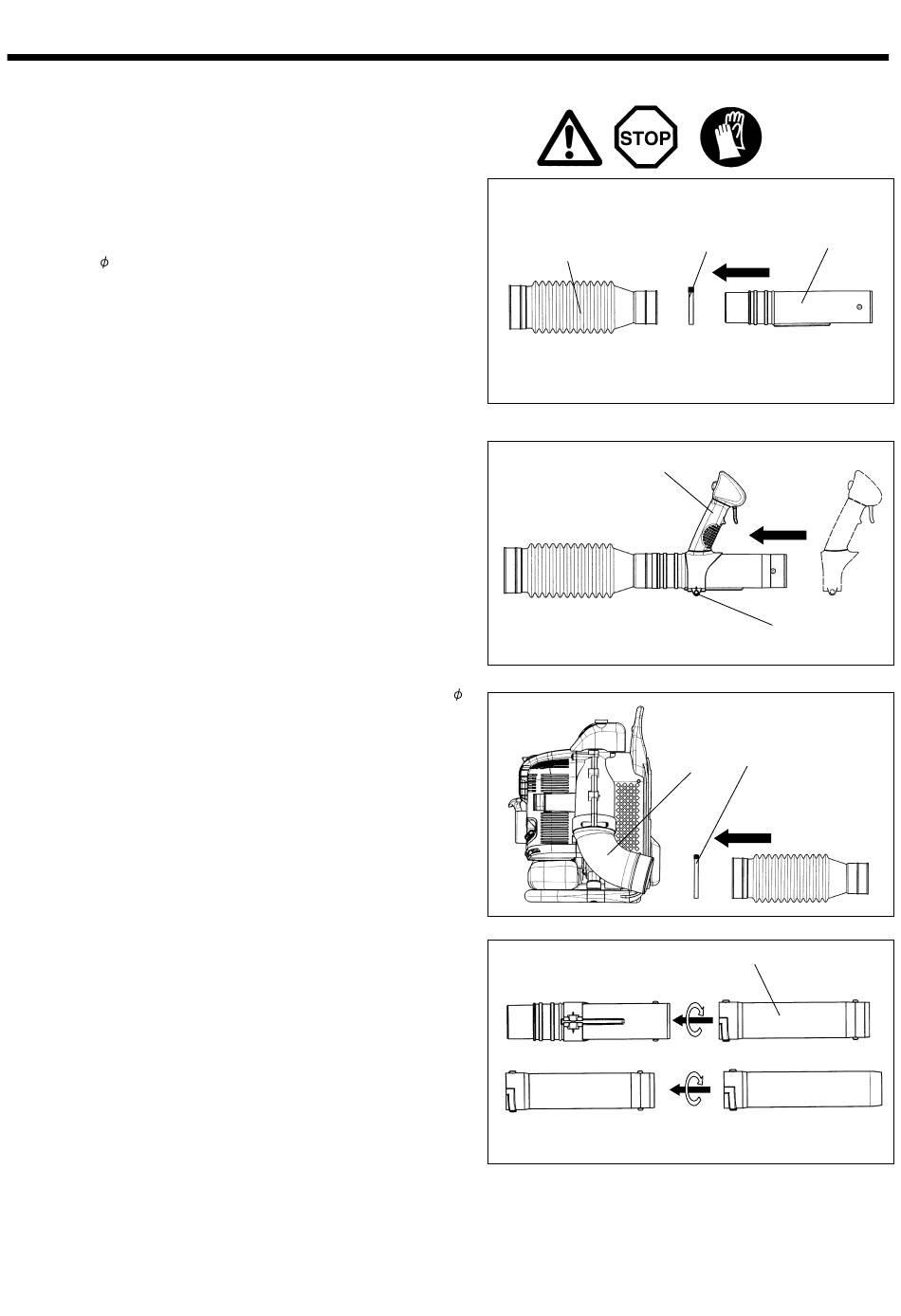

1. Assemble straight pipe with swivel (3) into flexible pipe (1) and tighten
hose band 76 (2).
2. Install control handle (4) onto straight pipe with swivel and tighten the
clamp screw (5).
3. Assemble flexible pipe to elbow (6) on blower and tighten hose band
100 (7).
4. Assemble straight pipe (8) to straight pipe with swivel, turning straight
pipe clockwise to lock it into place.
5. Make sure all clamps are tight.
