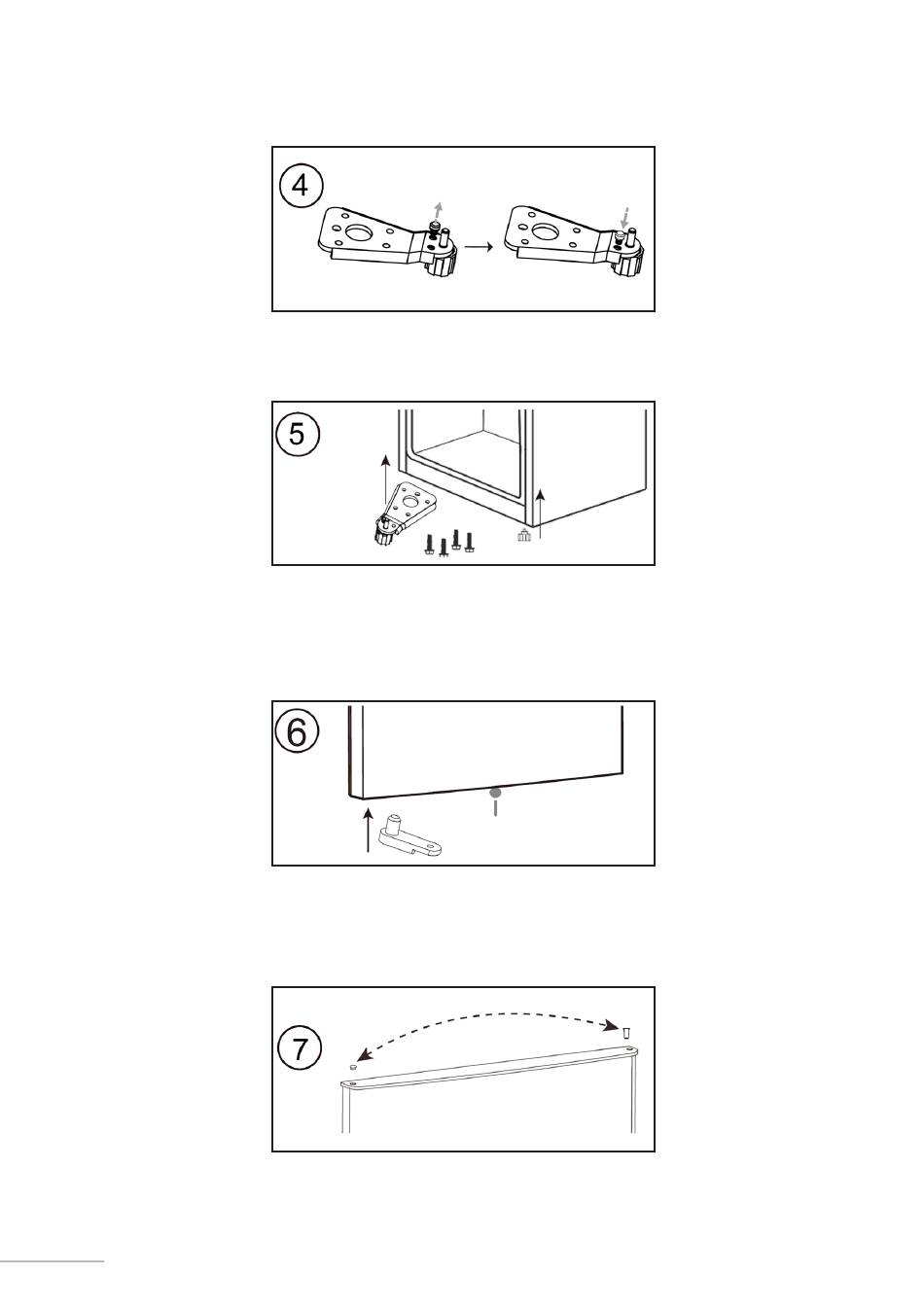

Remove the pin shaft to the right hole on the lower hinge, then insert the pin shaft into the left
4.
hole on the lower hinge.
Install the lower hinge on the left side of the refrigerator.Install the leveling feet on the bottom
5.
right side of the refrigerator.
Remove the screw that secures the door stop to the bottom right side of the freezer door.Use
6.
the screw to secure the door stop to the bottom left side of the door.Remove the screw that
secures the door stop to the bottom right side of the refrigerator door. Use the screw to secure
the door stop to the bottom left side of the door.
Move the refrigerator door and freezer door bushing from the right side of the door to the left
7.
then move the plastic hole cover from the left side of the door to the right. Exchange their
positions.
