AIDOO CONTROL KNX MIDEA /
KAYSUN V6
Dispositivo para la gestión e integración de equipos AC en sistemas de control KNX
TP-1. Alimentación externa a través de la unidad interior.
•
Funcionalidades:
•
Control de los distintos parámetros del equipo.
•
Control KNX.
•
Datos estándares KNX.
•
3 entradas digitales configurables.
•
Fácilmente configurable desde ETS.
•
Detección de errores durante la comunicación.
Para más información de nuestros productos diríjase a airzonecontrol.com
AIDOO MIDEA / KAYSUN V6 KNX CONTROLLER
Device to manage and integrate AC units in KNX TP-1 control systems. Externally
powered by the indoor unit.
Features:
•
Control of the parameters of the unit.
•
KNX Control.
•
KNX standard data.
•
3 digital configurable inputs.
•
Easily configurable from ETS.
•
Communication errors detection.
For further information about our products, go to airzonecontrol.com
CONTROLO AIDOO KNX MIDEA / KAYSUN V6
Dispositivo para a gestão e integração de equipamento AC em sistemas de controlo
KNX TP-1. Alimentação externa pela unidade interior.
Funcionalidades:
•
Controlo dos diferentes parâmetros do equipamento.
•
Controlo KNX.
•
Dados padrão KNX.
•
3 entradas digitais configuráveis.
•
Configurável a partir do ETS de maneira fácil e rápida.
•
Deteção de erros durante a comunicação.
Para obter mais informações sobre nossos produtos, consulte airzonecontrol.com
(ES) CARACTERÍSTICAS TÉCNICAS
(EN) TECHNICAL SPECS
(PT) CARACTERÍSTICAS TÉCNICAS
Conexión con unidad interior / Connection to indoor unit
Conexão ao equipamento
Tipo de alimentación / Type of power supply /
Vdc
Tipo de alimentação
V max
18 V
I max
137.5 mA
V in
12 - 16 V
Consumo / Consumption / Consumo
0.85 W
Conector Midea / Kaysun V6
Midea / Kaysun V6 connector
Tipo de cable / Type of cable / Tipo de cabo
Conector Midea / Kaysun V6
Longitud del cable / Wire length /
2.5 m (8.2 ft)
Comprimento do cabo
Conexión y comunicaciones KNX / KNX connection and
communication / Conexão e comunicação KNX
V max
31 V
I max
31.3 mA
V in
29 V
Consumo / Consumption / Consumo
0.12 W
Tipo de cable / Type of cable / Tipo de cabo
TP-1
Hilos de comunicación / Communication
2 x 0.8 mm2
(AWG 18 – 2 wired)
wires Fios de comunicação
Rojo-Negro /Red-Black
Color de los cables / Cable color
Cor dos cabos
Vermelho-Negro
Distancia máxima / Maximum length /
100 m (328 ft)
Distância máxima
Entradas digitales / Digital inputs / Entradas digitais
Nº de entradas / Nº of inputs
3
Nº de entradas
Libre de tensión / Voltage-free
Estado / State / Estado
Livre de tensão
Distancia máxima / Maximum distance /
100 m (328 ft)
Distância máxima
Temperaturas operativas / Operating temperatures
Temperatura de operaçao
Almacenaje / Storage / Armazenamento
- 20 ... 70 ºC (- 4 ... 158 ºF)
Funcionamiento / Operation /
0 ... 45 ºC (32 ... 113 ºF)
Funcionamento
Rango de humedad de funcionamiento /
5 ... 90 %
Operating humidity rango /
(non-condensing)
Intervalo de humidade de funcionamento
Aspectos mecánicos / Mechanical aspects / Aspectos mecânicos
Grado de protección / Protection class /
IP 41
Grau de proteção
Peso / Weight / Peso
130 g (0.29 lb)
AZAI6KNXMD2
AZAI6KNXxxx
Contains FCC ID: VPYLBEE5hY1MW
Contains IC: 772C-LBEE5hY1MW

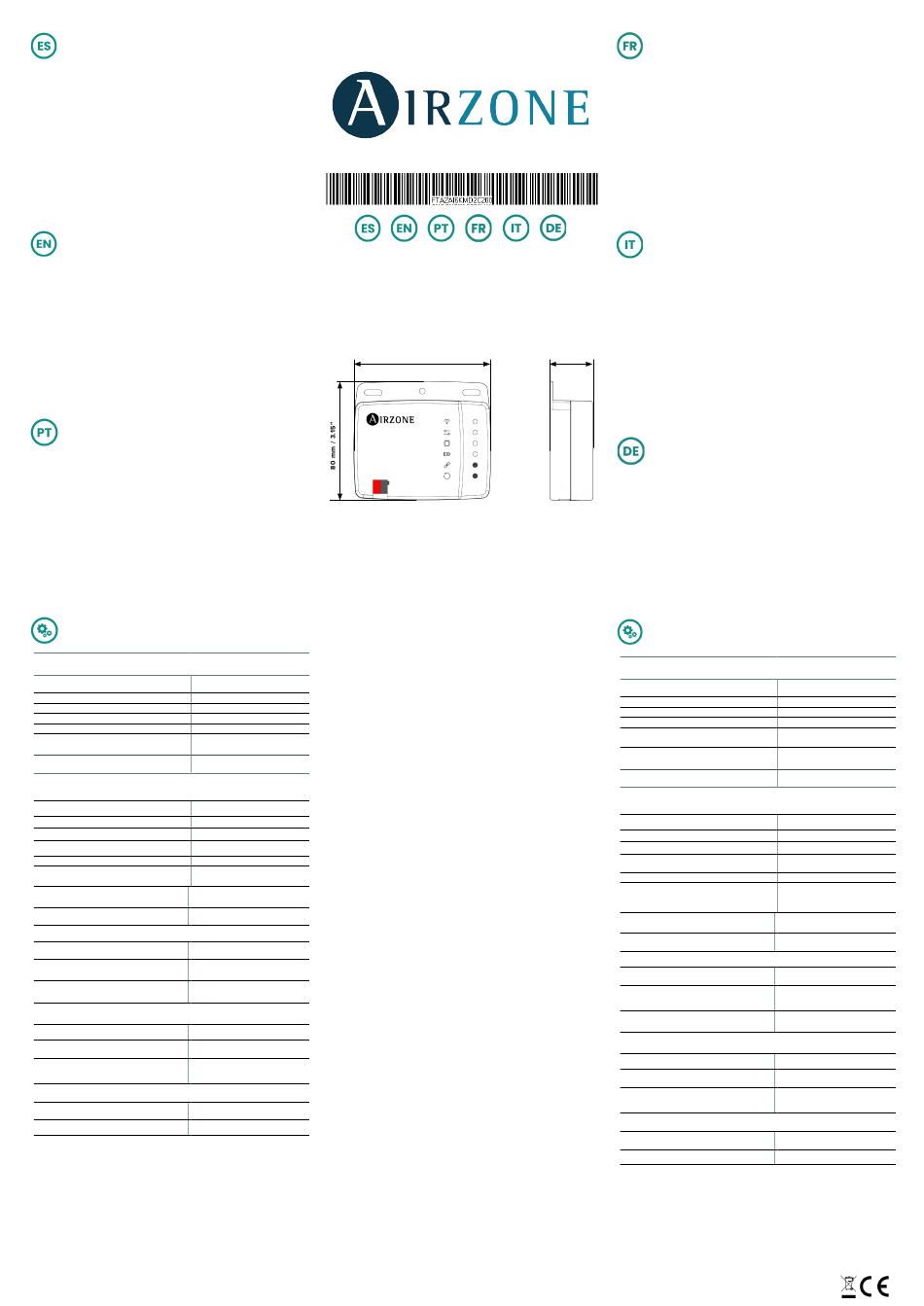

29 mm / 1.14"
92 mm / 3.62"
AIDOO CONTRÔLE KNX MIDEA / KAYSUN V6
PROTOCOL
Contrôleur pour la gestion et l'intégration d'unités dans des systèmes de contrôle
KNX TP-1. Alimentation externe par l'unité intérieure.
Fonctionnalités :
•
Contrôle des différents paramètres de l'unité.
•
Contrôle KNX.
•
Données standard KNX.
•
3 entrées numériques paramétrables.
•
Paramétrable à partir d'ETS.
•
Détection d'erreurs durant la communication.
Pour plus d'informations sur nos produits, veuillez vous rendre sur la page
airzonecontrol.com
CONTROLLO AIDOO KNX MIDEA / KAYSUN V6
PROTOCOL
Controller per la gestione e l'integrazione di unità in sistemi di controllo KNX TP-1.
Alimentazione esterna mediante l'unità interna.
Funzionalità:
•
Controllo dei diversi parametri dell'unità.
•
Controllo KNX.
•
Dati standard KNX.
•
3 entrate digitali configurabili.
•
Configurabile da ETS.
•
Rilevamento di errori durante la comunicazione.
Per maggiori informazioni sui nostri prodotti utilizzi il nostro sito dedicato
airzonecontrol.com
AIDOO MIDEA / KAYSUN V6 PROTOCOL KNX
CONTROLLER
Controller für die Verwaltung und Integration der Geräte in KNX TP-1-
Steuerungssystemen. Externe Stromversorgung über das Innengerät.
Funktionen:
•
Steuerung der verschiedenen Anlagenparameter.
•
KNX-Steuerung.
•
Standard-KNX-Daten.
•
3 konfigurierbare digitale Eingänge.
•
Über ETS konfigurierbar.
•
Fehlererkennung während Mitteilung.
Weitere Informationen über unsere Produkte siehe airzonecontrol.com
(FR) CARACTÉRISTIQUES TECHNIQUES
(IT) CARATTERISTICHE TECNICHE
(DE) TECHNISCHE DATEN
Connexion avec l'unité intérieur/ Collegamento all'unità interna /
Anschluss an das Innengerät
TType d'alimentation / Tipo di alimentazione/
Vdc
Versorgungsart
V max
18 V
I max
137.5 mA
V in
12 - 16 V
Consommation / Consumo
0.85 W
Leistungsaufnahme
Connecteur Midea / Kaysun V6
Connettore Midea / Kaysun V6
Type de câble / Tipo di cavo / Kabeltyp
Midea / Kaysun V6-Anschluss
Longueur du cable / Lunghezza del cavo /
2.5 m (8.2 ft)
Kabellänge
Connexion et communication KNX / Collegamento e comunicazioni
KNX / Anschluss und KNX-Verbindungen
V max
31 V
I max
31.3 mA
V in
29 V
Consommation / Consumo
0.12 W
Leistungsaufnahme
Type de câble / Tipo di cavo / Kabeltyp
TP-1
Fils de communications
2 x 0.8 mm2
Poli di comunicazione
(AWG 18 – 2 wired)
Kommunikationsleitung
Couleur des câbles / Colore dei cavi /
Rouge-Noir / Rosso-Nero
Kabelfarbe
Rot-Schwarz
Distance maximale / Distanza massima /
100 m (328 ft)
Max. Abstand
Entrées numériques / Entrate digitali / Digitale Eingänge
Nombre d'entrées / Nº di entrate
3
Anzahl Relais
Libre de tension
État / Stato / Status
Libere da tensione
Spannungsfrei
Distance maximale / Distanza massima /
100 m (328 ft)
Max. Abstand
Températures opérative / Termperature operative /
Betriebstemperaturen
De stockage / Stoccaggio / Lagerung
- 20 ... 70 ºC (- 4 ... 158 ºF)
De fonctionnement / Funzionamento /
0 ... 45 ºC (32 ... 113 ºF)
Betrieb
Plage d'humidité de fonctionnement
5 ... 90 %
Rango di umidità di funzionamento
(non-condensing)
Zulässige Luftfeuchtigkeit
Aspects mécaniques / Aspetti meccanici / Mechanische Aspekte
Grado de protección / Protection class /
IP 41
Grau de proteção
Poids / Peso / Gewicht
130 g (0.29 lb)
