EN
Introduction
The detector works based on detecting human body's infrared
spectrum. When human moves within the scope, the detector
receives the signal and inputs it into microprocessor after
magnification. Microprocessor continues to sample infrared signal
and send wireless signal to wireless control panel after calculating,
thus to form a security system. The product can be applied in banks,
warehouses and homes etc.
Features
Accurate Detection
360° detection, no dead angle
Automatic temperature compensation and anti-air turbulence
technology
False Alarm Prevention
Digital dual-core fuzzy logic infrared control processing technology
Effectively identify interference signals from body movement signals
through intelligent analysis
Space-saving
Ceiling-mounted, not much space occupation
Integrated to home decoration, suitable for luxury premises
Energy-saving
Featured power-saving mode enables 1 year standby

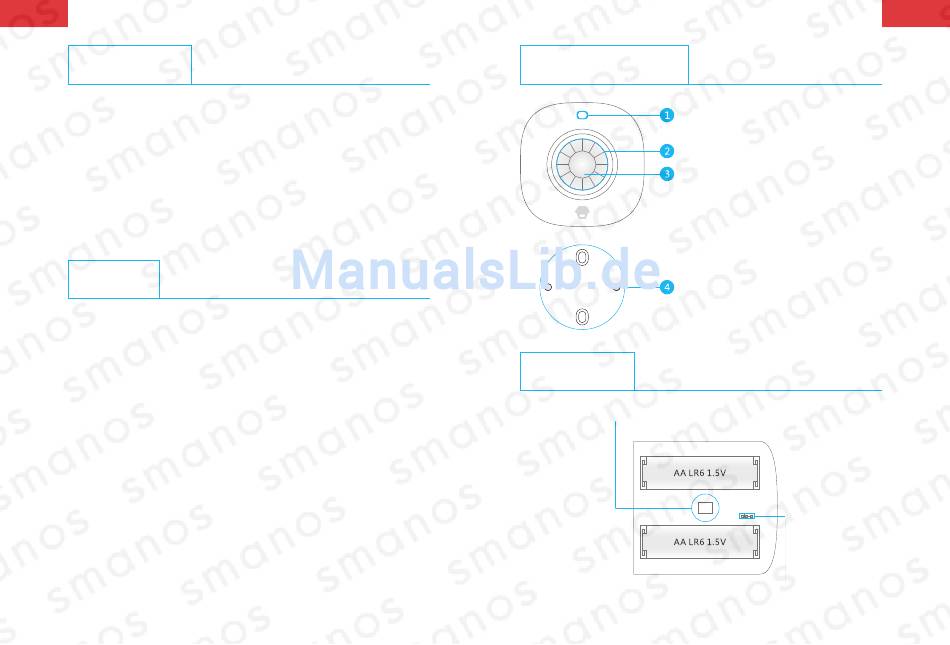

Product Overview

1. Test Button
2. Detection Lens
3. LED Indicator
4. Mounting Plate

PCB Layout

Infrared Sensor
EN
LED ON/OFF
