GYSPRESS 10T PUSH-PULL EN

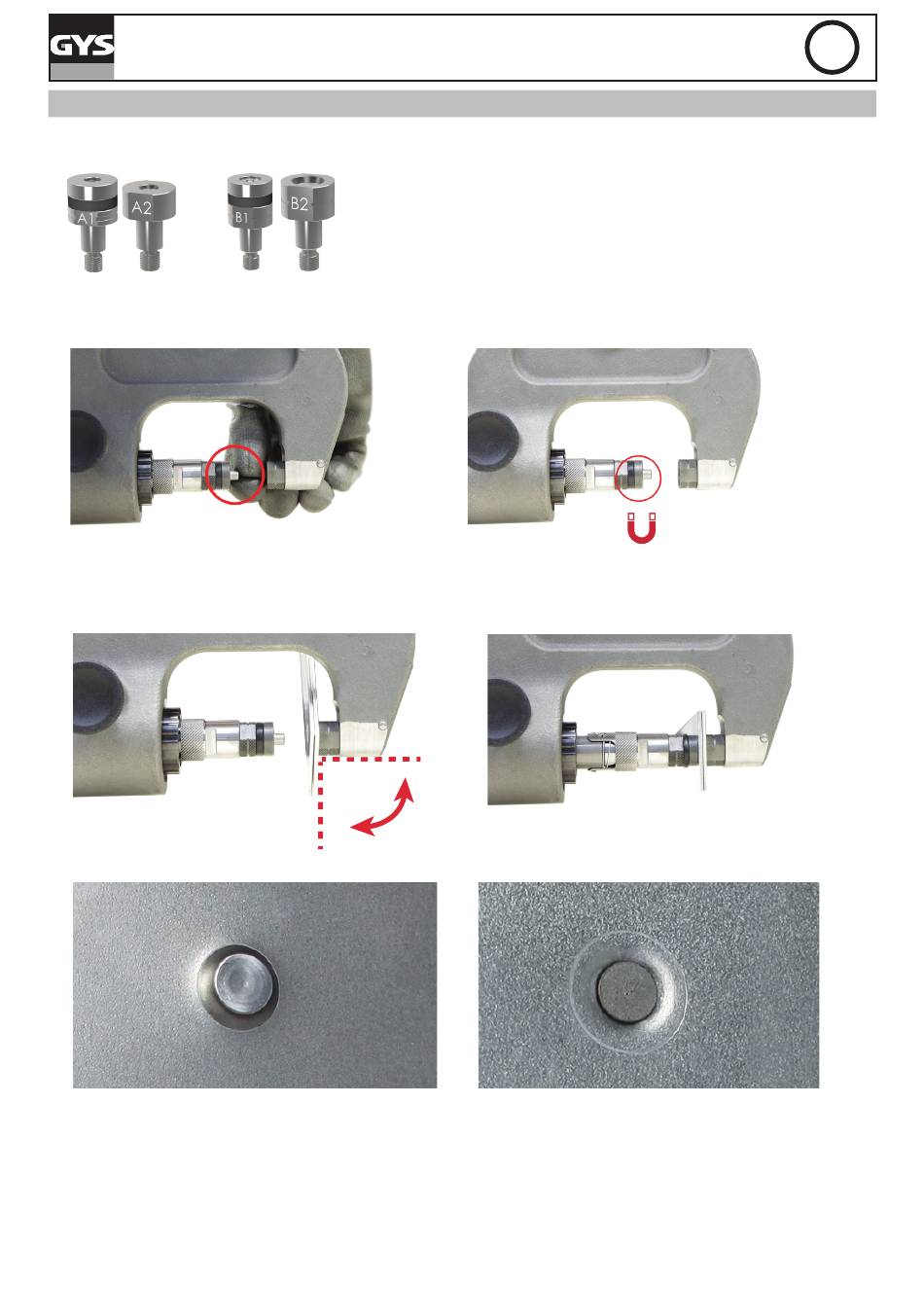

INSTALLATION OF SELF-PIERCING RIVETS
Ø 3.3 mm Ø 5.3 mm
During the installation of self-piercing rivets, make sure that the rivets are well-placed. The matrix must not be damaged
as problems during the riveting process may occur.
During each riveting process, make sure that the matrix - and the rivet itself - are layed out on the metal sheets to
assemble. It is important to put the punch support in place in order to form a 90° angle.
90°
RESULT OF THE INSTALLATION OF SELF-PIERCING RIVET
18
