SETTING UP AN ARM

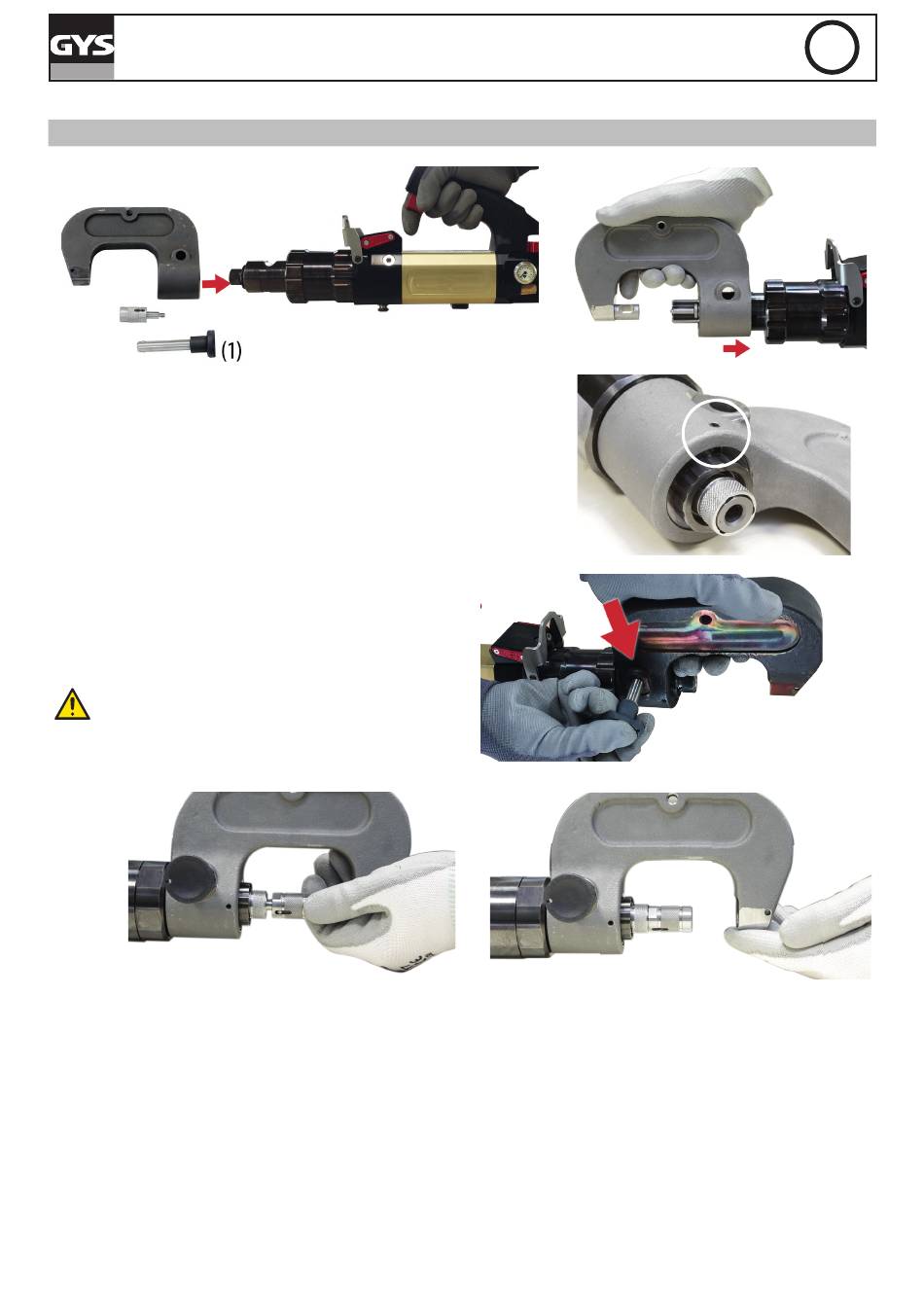

Choose an arm and prepare the locking pin (1). Put the arm with
care on the riveting machine nose, making sure that the 2 points of
reference are aligned.
For the implementation of large arms (eg, HR210, HR310), it is advi-
sable to lay the arms flat on a table and bring the nose of the riveting
machine in the arm's orifice.
As soon as the arm is on the riveting machine, push the
locking pin in the hole.
The axle locks itself automatically and must not be
allowed to become unlocked.
The locking pin must be clean with no damage. Do
not use any damaged pin.
Using the screw, fasten the extension The riveting machine is now ready to use.
supplied with the arm.
