Contact control
Before a sequence or a single program is executed, the device checks whether
the required electrical contact is made. If the contact is not good enough, you will
hear a beep every 3 seconds. By pressing the OK-button, the frequency program
can be executed anyway. However no effect will occur.
If the required contact is made, the display shows for a short time the resistance
in k-Ohms and then the device automatically begins executing the frequency pro-
gram.

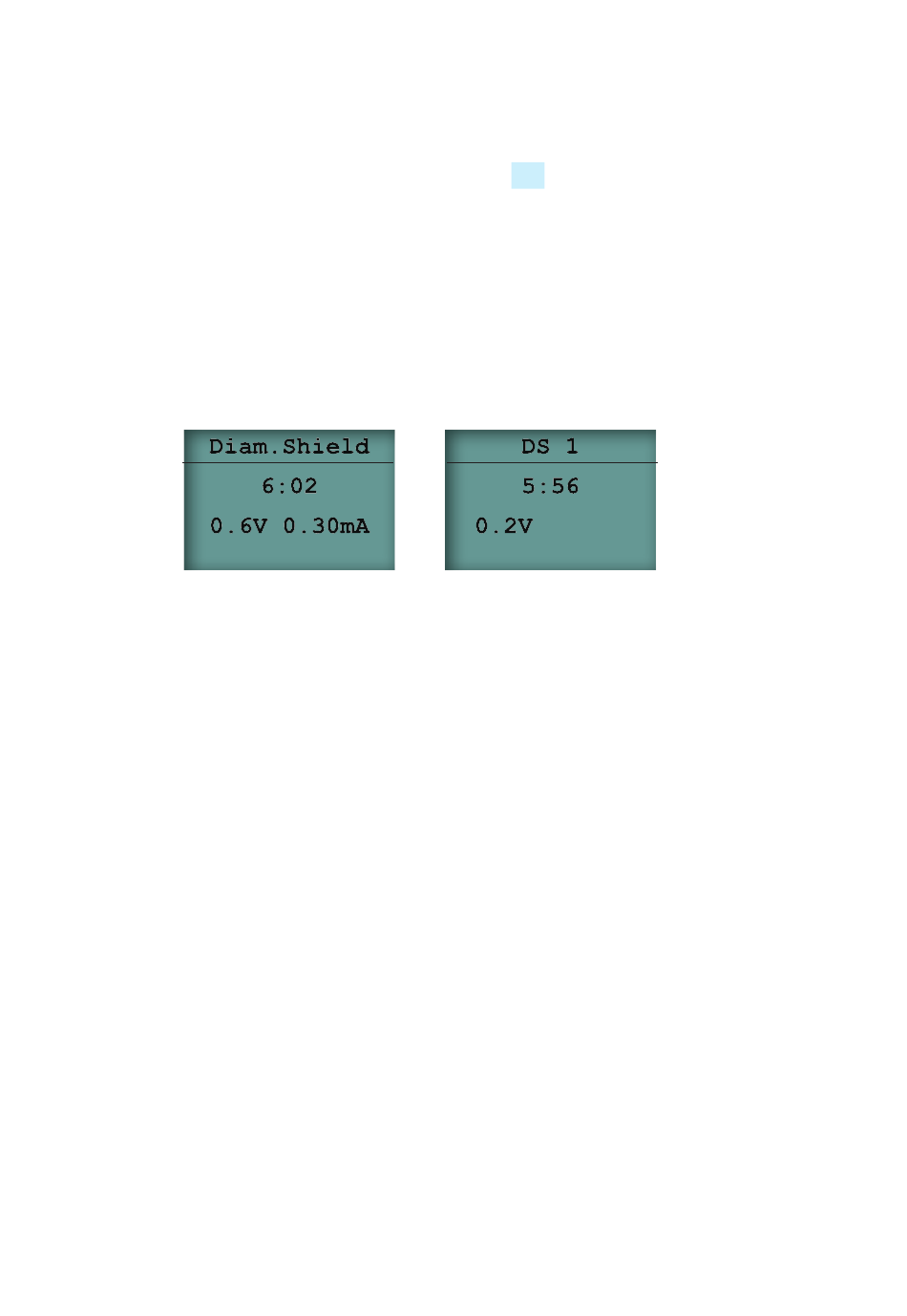

During execution of frequency programs
•
In the headline the sequence name and the name of the current single
program are shown in turns.
•
Below the remaining execution time is displayed (minutes: seconds).
•
Below the intensity is displayed.
•
For frequency programs with constant current control, the actual
voltage is displayed on the left side. On the right side the chosen
intensity is displayed in milliamps (1/1000 amps).
•
For frequency programs without current control, only the voltage in
volts is displayed.
